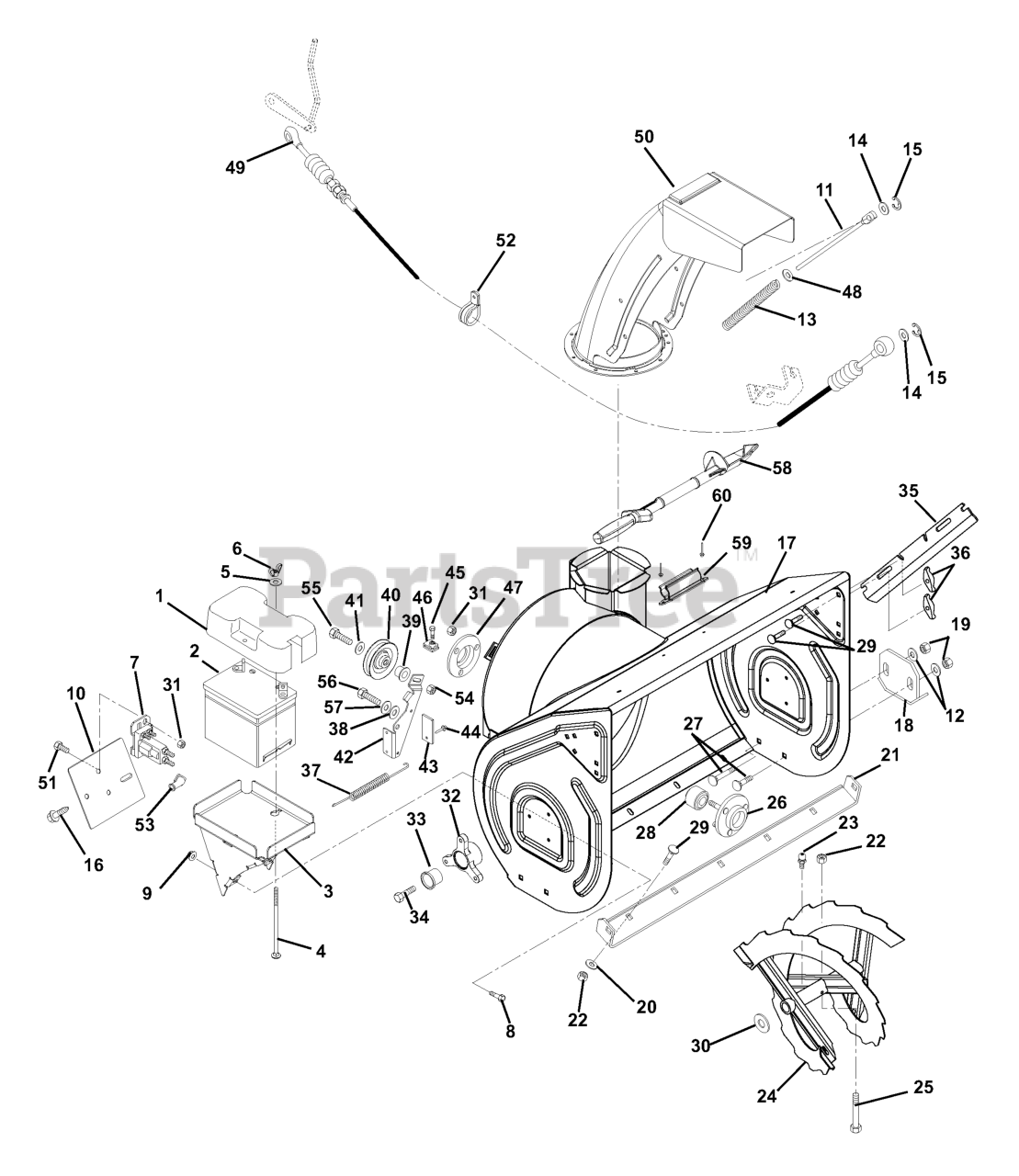

924335 (ST 926 DLE Classic) - Ariens 26" Snow Blower, 9hp Tecumseh (SN: 000101 & Above) Chute, Auger And Battery Parts Diagram

26" Snow Blower, 9hp Tecumseh

Chute, Auger And Battery Parts Diagram

  • Title

1

Ariens 04912900

COVER, BATTERY

Note: (924516, 517)

$11.99

$

In Stock, only 2 left!

0

2

Battery Recommend 240 Minimum CCA at 0° F. Size U1R or U1L (516, 517)

Note: (924516, 517)

$

$

Not available

3

Ariens 02488659

TRAY, BATTERY
(Superseded to 52422200)

Note: (924516, 517)

$125.99

$

Usually ships in 4-12 days

0

4

Ariens 06220400

@BLT-RDHDSQNK .25-20X7.00 G2YZ
(Superseded to 06200229)

Note: (924516, 517)

$5.49

$

In Stock, only 2 left!

0

5

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

Note: (924516, 517)

$0.99

$

In Stock, only 3 left!

0

6

Ariens 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

Note: (924516, 517)

$5.49

$

Usually ships in 4-12 days

0

7

Ariens 03679000

SOLENOID
(Superseded to 59223400)

Note: (924516, 517)

$63.99

$

In Stock, Qty 20+

0

8

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

Note: (924516, 517)

$1.49

$

In Stock, Qty 12

0

9

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

Note: (924516, 517)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 02484459

COVER, SOLENOID

Note: (924516, 517)

$16.99

$

In Stock, only 1 left!

0

11

Ariens 02479800

ROD, CHUTE

$29.99

$

In Stock, only 2 left!

0

12

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

13

Ariens 08335200

SPRING, COMP. .08 X .40 X 7.15

$21.99

$

In Stock, only 2 left!

0

14

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

15

Ariens 05718500

RG-RTNG-EXT .218X.035 TYPE E

$3.99

$

In Stock, only 2 left!

0

16

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (924516, 517)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 52421000

HOUSING, BLOWER-26" W/DECAL

Note: (924124, 126, 335, 336)

$

$

Not available

17

Ariens 52420900

HOUSING, BLOWER-28" W/DECAL

Note: (924125, 127, 337)

$

$

Not available

17

Ariens 52420700

HOUSING, BLOWER-32" W/DECAL

Note: (924516)

$

$

Not available

17

Ariens 52420800

HOUSING, BLOWER-32" W/DECAL

Note: (924128, 338)

$352.99

$

Usually ships in 4-12 days

0

17

Ariens 52420600

HOUSIG, BLOWER-36" W/DECAL

Note: (924517)

$

$

Not available

18

Ariens 02483059

RUNNER, SKID SHOE-1/2" FLANGE

Note: (924125, 128, 338)

$38.99

$

In Stock, only 2 left!

0

18

Ariens 02483859

SKID SHOE, REVERSIBLE - ORANGE

Note: (924124, 126, 127, 335, 336, 337, 516, 517)

$20.99

$

In Stock, Qty 9

0

19

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

Note: (924124, 125, 126, 127, 335, 336, 337)

$1.99

$

In Stock, Qty 20+

0

20

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

Note: (924128, 338, 516, 517)

$1.99

$

In Stock, Qty 20+

0

21

Ariens 00268659

BLADE, SCRAPER-26"
(Superseded to 04182259)

Note: (924124, 126, 335, 336)

$35.99

$

In Stock, Qty 7

0

21

Ariens 00175059

BLADE, SCRAPER-28"
(Superseded to 04182159)

Note: (924125, 127, 337)

$42.99

$

In Stock, only 2 left!

0

21

Ariens 00174959

BLADE, SCRAPER-32"
(Superseded to 04182059)

Note: (924128, 338, 516)

$55.99

$

In Stock, only 3 left!

0

21

Ariens 00268859

BLADE, SCRAPER-36"
(Superseded to 04181659)

Note: (924517)

$52.99

$

In Stock, only 4 left!

0

22

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (924124, 125, 126, 127, 335, 336, 337)

$1.99

$

In Stock, Qty 20+

0

22

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (924128, 338, 516, 517)

$1.99

$

In Stock, Qty 20+

0

23

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

24

Ariens 52421100

RAKE, LH-26"(1 ID X 15.75 OD)

Note: (15.75" O.D) (Includes Item 22) (124, 126, 336, 335)

$290.99

$

Usually ships in 4-12 days

0

24

Ariens 52421200

RAKE, RH-26" (1 ID X 15.75 OD)

Note: (15.75" O.D) (Includes Item 22) (124, 126, 336, 335)

$290.99

$

Usually ships in 4-12 days

0

24

Ariens 52421300

RAKE, LH-28" (1 ID X 15.75 OD)

Note: (15.75" O.D) (Includes Item 22) (125, 127, 337)

$276.99

$

Usually ships in 4-12 days

0

24

Ariens 52421400

RAKE, RH-28" (1 ID X 15.75 OD)

Note: (15.75" O.D) (Includes Item 22) (125, 127, 337)

$276.99

$

Usually ships in 4-12 days

0

24

Ariens 52421500

RAKE, LH-32" (1 ID X 15.75 OD)

Note: (15.75" O.D) (Includes Item 22) (128, 338, 516)

$305.99

$

Usually ships in 4-12 days

0

24

Ariens 52421600

RAKE, RH-32" (1 ID X 15.75 OD)

Note: (15.75" O.D) (Includes Item 22) (128, 338, 516)

$249.99

$

Usually ships in 4-12 days

0

24

Ariens 52421700

RAKE, LH-36" (1ID X 15.75 OD)

Note: (15.75" O.D) (Includes Item 22) (517)

$303.99

$

Usually ships in 4-12 days

0

24

Ariens 52421800

RAKE, RH-36" (1 ID X 15.75 OD)

Note: (15.75" O.D.) (Includes Item 22) (517)

$

$

Not available

25

Ariens 51001500

SHEAR BOLT SERVICE ASSEMBLY

Note: (15.75" O.D.) (Includes Item 22)

$5.99

$

In Stock, Qty 20+

0

26

Ariens 00301700

BEARING FLANGE

$17.99

$

In Stock, only 2 left!

0

27

Ariens 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

28

Ariens 05409300

BRG-BALL .876 X 1.750 X .50

$37.99

$

In Stock, only 3 left!

0

29

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

Note: (924124, 125, 126, 127, 335, 336, 337)

$2.99

$

In Stock, Qty 20+

0

29

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

Note: (924128, 338, 516, 517)

$2.99

$

In Stock, Qty 20+

0

30

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.99

$

In Stock, Qty 18

0

31

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

32

Ariens 00275100

BUSHING, RAKE SHAFT 1"

$11.99

$

In Stock, Qty 8

0

33

Ariens 05500011

BSHG-FLG, SPLIT NYLINER 1.0"ID
(Superseded to 05500030)

$7.49

$

In Stock, Qty 20+

0

34

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

35

Ariens 00262159

CUTTER, DRIFT

$23.99

$

Usually ships in 4-12 days

0

36

Ariens 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

$3.99

$

In Stock, Qty 20+

0

37

Ariens 08300001

SG-TENS .06X.492X5.25 WLD 11

$23.99

$

Usually ships in 4-12 days

0

38

Ariens 06437500

WSHR-FL-STL .328X1.0X.094 YWZC
(Superseded to 06401027)

$3.99

$

In Stock, only 1 left!

0

39

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.99

$

In Stock, Qty 12

0

40

Ariens 02457400

IDLER
(Superseded to 52007000)

$40.99

$

In Stock, only 2 left!

0

41

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

42

Ariens 52418200

ARM, AUGER/BRAKE-HIGH W/LINING

Note: (Contains Items 43, 44)

$59.99

$

Usually ships in 4-12 days

0

43

Ariens 03229100

BRAKE LINING

$16.99

$

In Stock, only 2 left!

0

44

Ariens 06806700

RVT-TBLR .187X.437 RH ST PL

$1.49

$

In Stock, Qty 11

0

45

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.99

$

In Stock, only 3 left!

0

46

Ariens 07002600

NUT-RETNR .38-16 TINRMAN

$9.99

$

In Stock, Qty 7

0

47

Ariens 01014200

BEARING FLANGE

$6.49

$

In Stock, Qty 6

0

48

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

49

Ariens 06945001

CABLE, DEFLECTOR CONTROL

$73.99

$

In Stock, only 2 left!

0

50

Ariens 52420400

CHUTE, DISCHARGE-W/REMOTE

Note: (924124, 125, 126, 127, 128, 335, 336, 337, 338, 516)

$250.99

$

Usually ships in 4-12 days

0

50

Ariens 52420500

CHUTE, DISCHARGE-ELECTRIC

Note: (924517)

$71.99

$

Usually ships in 4-12 days

0

51

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

52

Ariens 06908200

CLAMP, CUSHIONED STEEL

$6.49

$

Usually ships in 4-12 days

0

53

Ariens 07533200

BOOT, EYELET TERMINAL

Note: (924516, 517)

$3.99

$

In Stock, Qty 9

0

54

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

55

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 6

0

56

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

57

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 5

0

58

Ariens 00170200

DEVICE, SNOW CLEAN OUT

$22.99

$

In Stock, Qty 7

0

59

Ariens 00170300

MOUNT, SNOW CLEAN OUT

$12.99

$

In Stock, only 2 left!

0

60

Ariens 06813600

RVT-POP .187X.45 DOME SS FBF64
(Superseded to 06800140)

$1.49

$

In Stock, only 3 left!

0
