924336 (ST 11526 DLE) - Ariens 26" Snow Blower, 11.5hp Tecumseh (SN: 000101 & Above) Gear Case - Cast Iron Parts Diagram

26" Snow Blower, 11.5hp Tecumseh

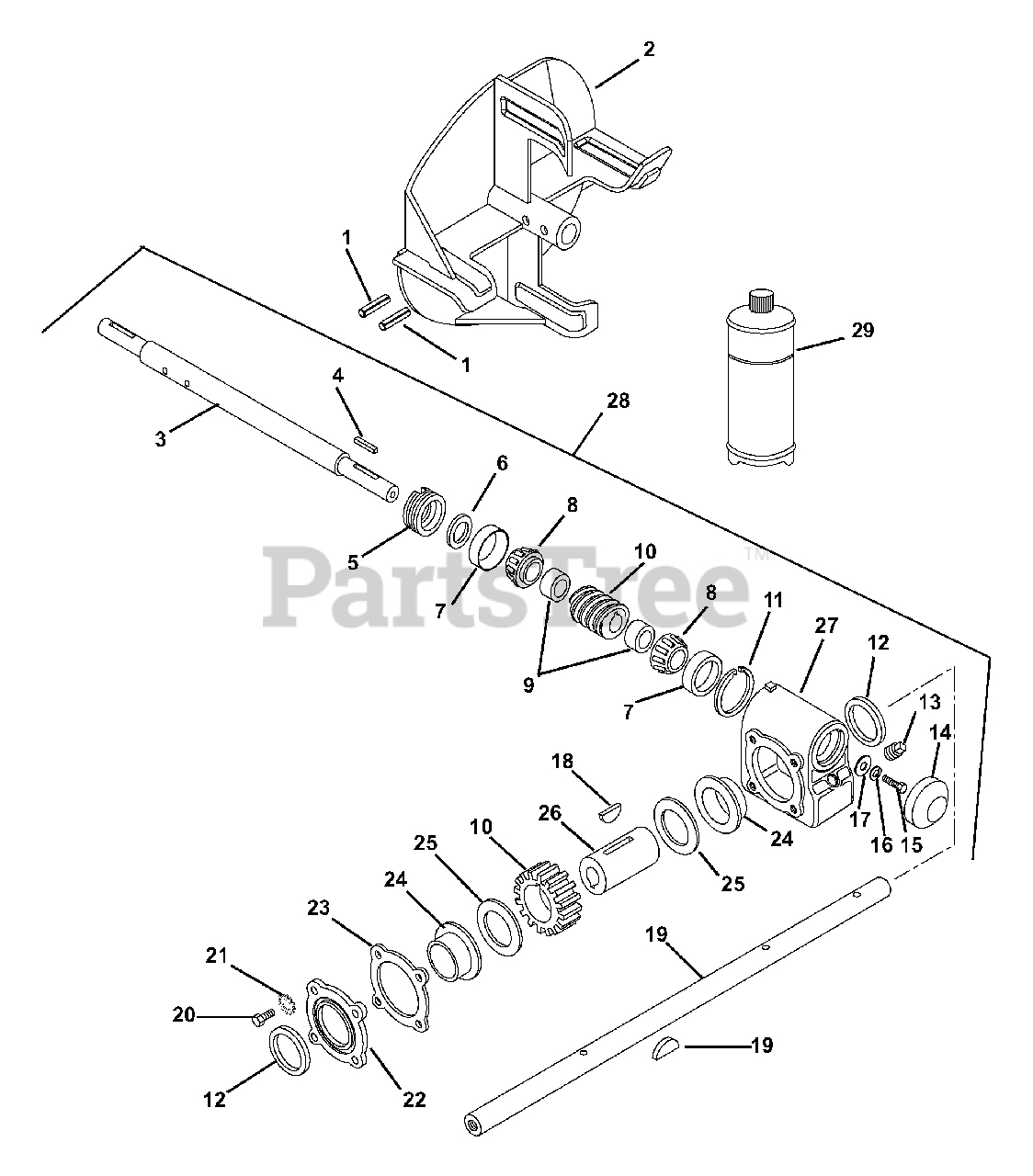

Gear Case - Cast Iron Parts Diagram

  • Title

1

Ariens 05803700

PIN-ROLL .250X1.75

$0.99

$

In Stock, Qty 11

0

2

Ariens 00258251

IMPELLER-14" 4 BLADE

Note: (924124, 126, 335, 336, 337, 516)

$237.99

$

Usually ships in 4-12 days

0

2

Ariens 00258451

IMPELLER-14" 6 BLADE

Note: (924517)

$263.99

$

Usually ships in 4-12 days

0

3

Ariens 00258300

SHAFT, WORM

$

$

Not available

4

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

$1.99

$

In Stock, Qty 5

0

5

Ariens 00275300

PLUG, ADJUSTMENT - .875 SHAFT

$17.99

$

Usually ships in 4-12 days

0

6

Ariens 05600002

SEAL-OIL .875X1.25X.188

$8.49

$

In Stock, Qty 11

0

7

Ariens 05404400

BRG-CUP 1.781X.475

$11.99

$

In Stock, Qty 20+

0

8

Ariens 05404500

BRG-CONE .750X.61

$29.99

$

In Stock, only 3 left!

0

9

Ariens 00200500

BSHG, SPCR .755X1.12X.50 PM

$7.49

$

In Stock, Qty 11

0

10

Ariens 52400900

WORM & GEAR SERVICE ASSEMBLY

$180.99

$

Usually ships in 4-12 days

0

11

Ariens 05707500

RG-RTNG-INT 1.781X.062

$9.99

$

In Stock, Qty 8

0

12

Ariens 05607000

SEAL 1.625X2.125X.250

$10.99

$

In Stock, Qty 19

0

13

Ariens 00150900

PIPE PLUG, 1/4 NPT

$2.49

$

Usually ships in 4-12 days

0

14

Ariens 00403700

DUST CAP

$18.99

$

In Stock, only 2 left!

0

15

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

16

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 5

0

17

Ariens 06437500

WSHR-FL-STL .328X1.0X.094 YWZC
(Superseded to 06401027)

$3.99

$

In Stock, only 1 left!

0

18

Ariens 06600800

KEY-WDRF .25X.875X.375 SAE A

$3.99

$

In Stock, only 1 left!

0

19

Ariens 00257500

SHAFT, RAKE-26"

Note: (924124, 126, 335, 336)

$127.99

$

Usually ships in 4-12 days

0

19

Ariens 00275000

SHAFT, RAKE-28"

Note: (924127, 337)

$140.99

$

Usually ships in 4-12 days

0

19

Ariens 00276100

SHAFT, RAKE-32"

Note: (924516)

$144.99

$

Usually ships in 4-12 days

0

19

Ariens 00267500

SHAFT, RAKE-36"

Note: (924517)

$

$

Not available

20

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

21

Ariens 06306800

@WSHR-LK-EXT.262X.502X.026YWZC
(Superseded to 06300118)

$0.99

$

Usually ships in 4-12 days

0

22

Ariens 02401300

GEAR CASE COVER

$139.99

$

Usually ships in 4-12 days

0

23

Ariens 00200800

GASKET

$3.99

$

In Stock, Qty 17

0

24

Ariens 05505900

BSHG-FLG .683X1.87X1.68X2.250

$15.99

$

In Stock, Qty 5

0

25

Ariens 06408700

WSHR-FL-STL 1.625X2.500X.012

$11.99

$

In Stock, only 4 left!

0

26

Ariens 02406400

GEAR CASE SHAFT

$184.99

$

Usually ships in 4-12 days

0

27

Ariens 02400200

GEAR CASE - CAST IRON

$

$

Not available

28

Ariens 52419300

GEAR CASE,CAST IRON-.875 SHAFT

$

$

Not available

29

Ariens 00008000

ARIENS 16 OZ.BOTTLE OF L2 LUBE
(Superseded to 00068800)

Note: (5 OZ. CAPACITY)

$18.99

$

In Stock, Qty 20+

0
