924338 (ST 1332 LE) - Ariens 32" Snow Blower, 13hp Tecumseh (SN: 000101 & Above) Wheels And Axle Parts Diagram

32" Snow Blower, 13hp Tecumseh

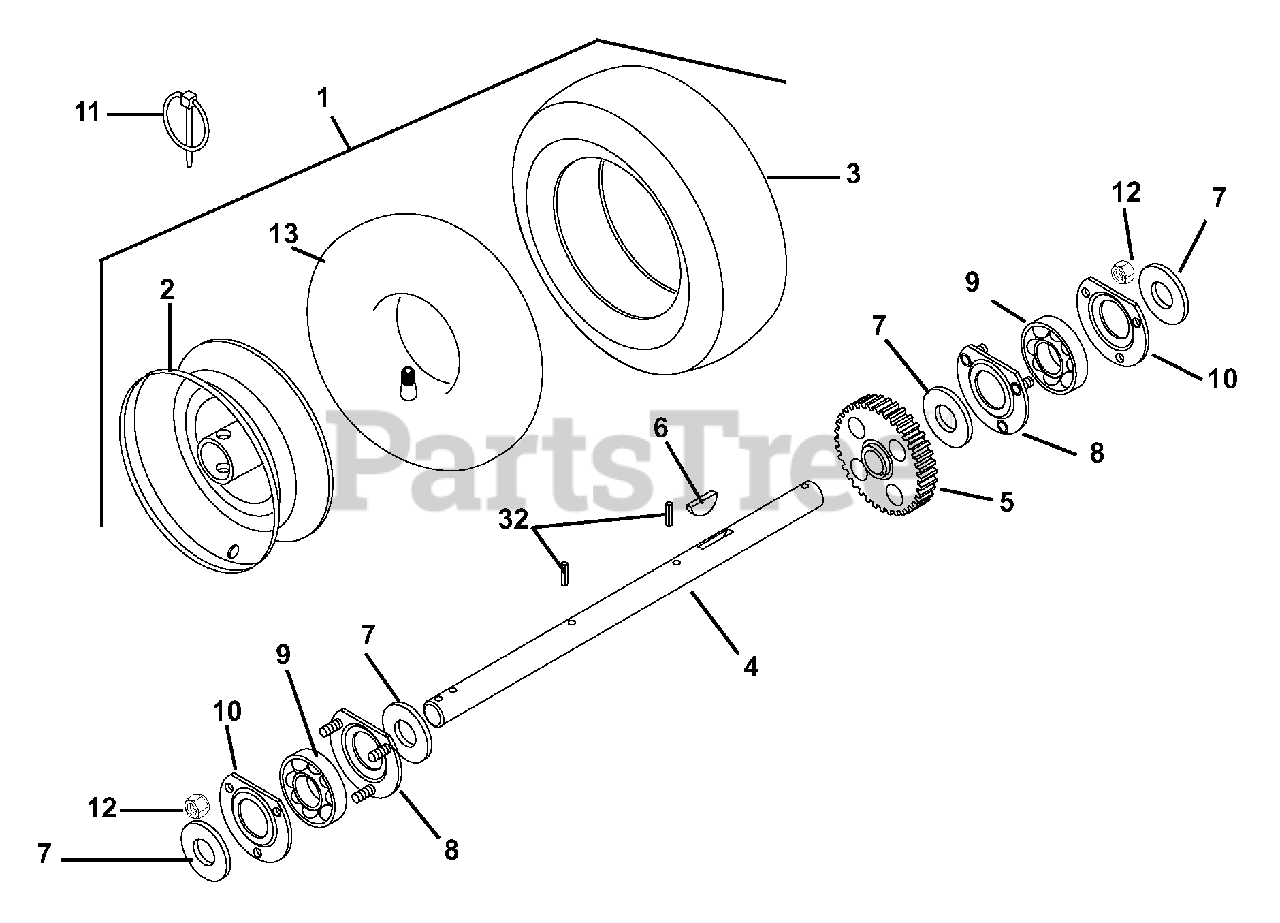

Wheels And Axle Parts Diagram

  • Title

1

Ariens 07100007

TIRE/WHEEL ASSEMBLY 16X4.80-8

Note: (924125)

$

$

Not available

1

Ariens 07100006

TIRE/WHEEL ASSEMBLY 16X6.5-8

Note: (924128, 338)

$

$

Not available

2

Ariens 07100014

WHEEL, 6.50-8.00

Note: (924128, 338)

$

$

Not available

2

Ariens 07100015

WHEEL, 4.5-8

Note: (924125)

$

$

Not available

3

Ariens 07121800

TIRE 4.80-8 NHS

Note: (924124, 125,126, 127, 335, 337, 336)

$76.99

$

Usually ships in 4-12 days

0

3

Ariens 07121600

TIRE 16X6.50-8 SNO-HOG TREAD
(Superseded to 07124000)

Note: (924128, 338, 516, 517, 518)

$

$

Not available

4

Ariens 00276700

SHAFT, AXLE

Note: (924125, 128, 338)

$

$

Not available

5

Ariens 00276800

GEAR, SPUR-FELLOWS 35T .875 ID

Note: (924125, 128, 338)

$134.99

$

Usually ships in 4-12 days

0

6

Ariens 06601200

KEY-WDRF .25X.750X.313 SAE91

Note: (924125, 128, 338)

$3.49

$

In Stock, Qty 12

0

7

Ariens 06436900

WSHR-FL-STL .880X1.250X.062YWZ

Note: (924125, 128, 338)

$2.49

$

In Stock, only 3 left!

0

8

Ariens 00301700

BEARING FLANGE

Note: (924125, 128, 338)

$17.99

$

In Stock, only 1 left!

0

9

Ariens 05409300

BRG-BALL .876 X 1.750 X .50

Note: (924125, 128, 338)

$37.99

$

In Stock, only 4 left!

0

10

Ariens 01014200

BEARING FLANGE

Note: (924125, 128, 338)

$6.49

$

Usually ships in 4-12 days

0

11

Ariens 07053700

PIN-LOK .31X1.75

Note: (924125, 128, 338)

$2.99

$

Usually ships in 4-12 days

0

12

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

Note: (924125, 128, 338)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 07103700

TUBE

Note: (924125, 124, 126, 127, 335, 336, 337)

$15.99

$

In Stock, only 2 left!

0

13

Ariens 07108700

TUBE

Note: (924128, 338, 516, 517, 518)

$23.99

$

Usually ships in 4-12 days

0

32

Ariens 05803000

PIN-ROLL .188X1.50

Note: (924124, 126, 127, 335, 336, 337, 516, 517, 518)

$1.49

$

In Stock, only 4 left!

0

32

Ariens 05803000

PIN-ROLL .188X1.50

Note: (924125, 128, 338)

$1.49

$

In Stock, only 4 left!

0
