924502 (ST 1332) - Ariens 32" Snow Blower, 13hp Tecumseh (SN: 000101 & Above) Electric Discharge Chute Parts Diagram

32" Snow Blower, 13hp Tecumseh

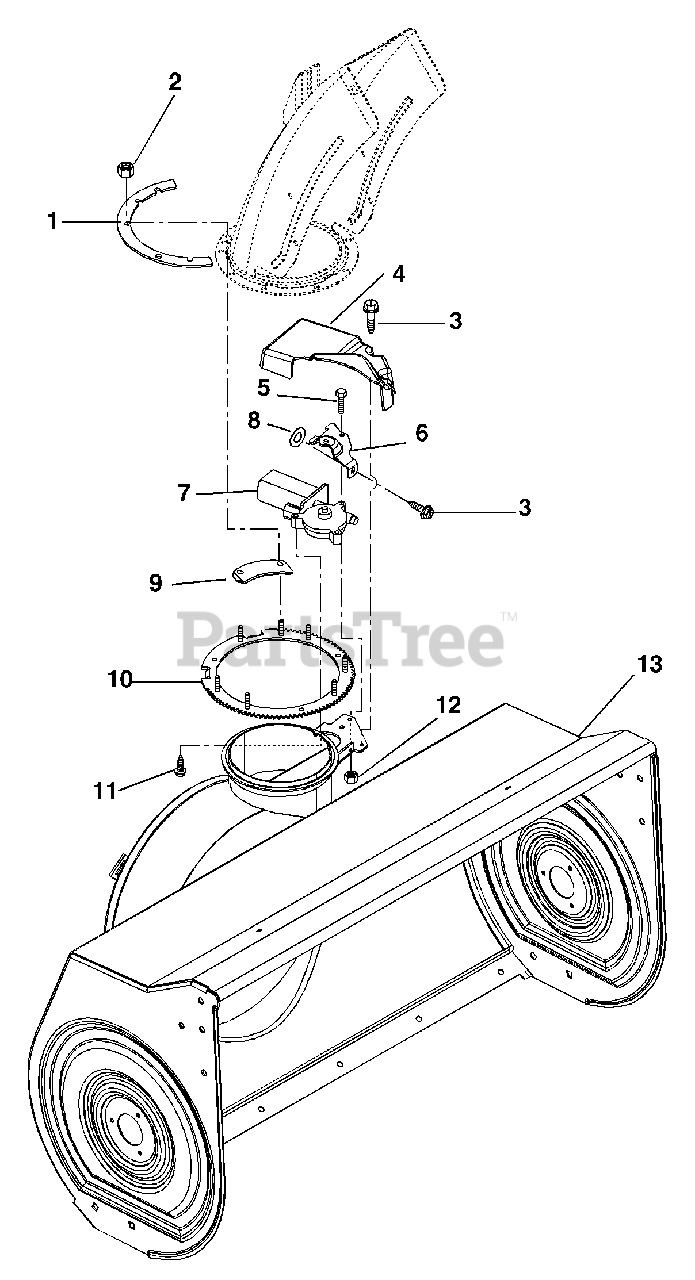

Electric Discharge Chute Parts Diagram

  • Title

1

Ariens 02486959

RING, COVER

$32.99

$

Usually ships in 4-12 days

0

2

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 07411900

@SCR-TAP 12-24X.50 HWH TR YWZC
(Superseded to 07400136)

$2.49

$

In Stock, Qty 5

0

4

Ariens 02487100

COVER, MOTOR

$36.99

$

Usually ships in 4-12 days

0

5

Ariens 05947400

@BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

$2.49

$

In Stock, Qty 7

0

6

Ariens 02488251

BRACKET, ELECTRIC MOTOR

$52.99

$

Usually ships in 4-12 days

0

7

Ariens 02486300

MOTOR, ELECTRIC RH - CHUTE
(Superseded to 52423300)

$

$

Not available

8

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

9

Ariens 02487000

CLAMP, CHUTE

$13.99

$

In Stock, only 1 left!

0

10

Ariens 02486800

GEAR, CHUTE

$96.99

$

Usually ships in 4-12 days

0

11

Ariens 07414400

@SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.99

$

In Stock, only 2 left!

0

12

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 02485159

HOUSING, BLOWER-32"E
(Superseded to 52414600)

$

$

Not available
