924505 (ST 1332) - Ariens 32" Snow Blower, 13hp Tecumseh (SN: 000101 - 003249) Decals Parts Diagram

32" Snow Blower, 13hp Tecumseh

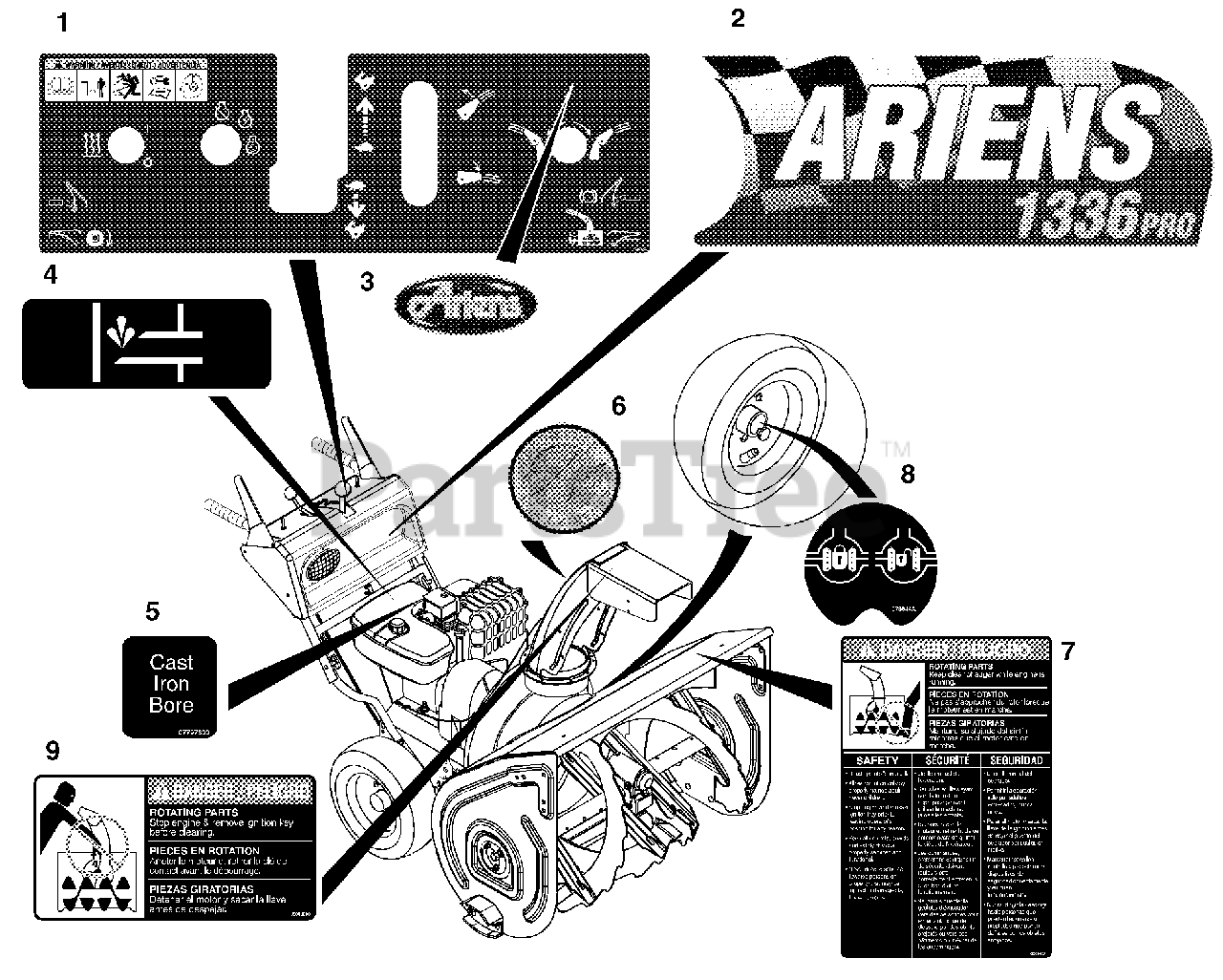

Decals Parts Diagram

  • Title

1

Ariens 08092200

DECAL, CONTROL - 1332, 1336

Note: (Models 505, 506)

$

$

Not available

Ariens 08092300

DECAL, CONTROL - 1024/1128

Note: (Models 300, 508)

$90.99

$

Usually ships in 4-12 days

0

Ariens 08092400

DECAL, CONTROL - 1024

Note: (Model 117)

$17.99

$

Usually ships in 4-12 days

0

Ariens 08092500

DECAL, CONTROL

Note: (Model 116)

$

$

Not available

2

Ariens 08092700

DECAL, FRONT PANEL - 1336

Note: (Model 506)

$10.99

$

Usually ships in 4-12 days

0

Ariens 08092800

DECAL, FRONT PANEL - 1332

Note: (Model 505)

$10.99

$

Usually ships in 4-12 days

0

Ariens 08092900

DECAL, FRONT PANEL - 1128

Note: (Model 508)

$10.99

$

Usually ships in 4-12 days

0

Ariens 08093000

DECAL, FRONT PANEL - 1024

Note: (Models 117, 300)

$

$

Not available

Ariens 08093100

DECAL, FRONT PANEL - 1028

Note: (Model 116)

$

$

Not available

3

Ariens 07746400

DECAL, "ARIENS" JEWEL

$

$

Not available

4

Ariens 07733900

DECAL, PRIMER "TECUMSEH'S"

$

$

Not available

5

Ariens 07797600

DECAL - CAST IRON BORE

$

$

Not available

6

Ariens 07751100

DECAL, A+

$

$

Not available

7

Ariens 08094000

DECAL, DANGER
(Superseded to 08000519)

$11.99

$

Usually ships in 4-12 days

0

8

Ariens 07864400

DIFFERENTIAL LOCK DECAL

$28.99

$

Usually ships in 4-12 days

0

9

Ariens 08093900

DECAL, DANGER - ROT. PARTS

$18.99

$

Usually ships in 4-12 days

0
