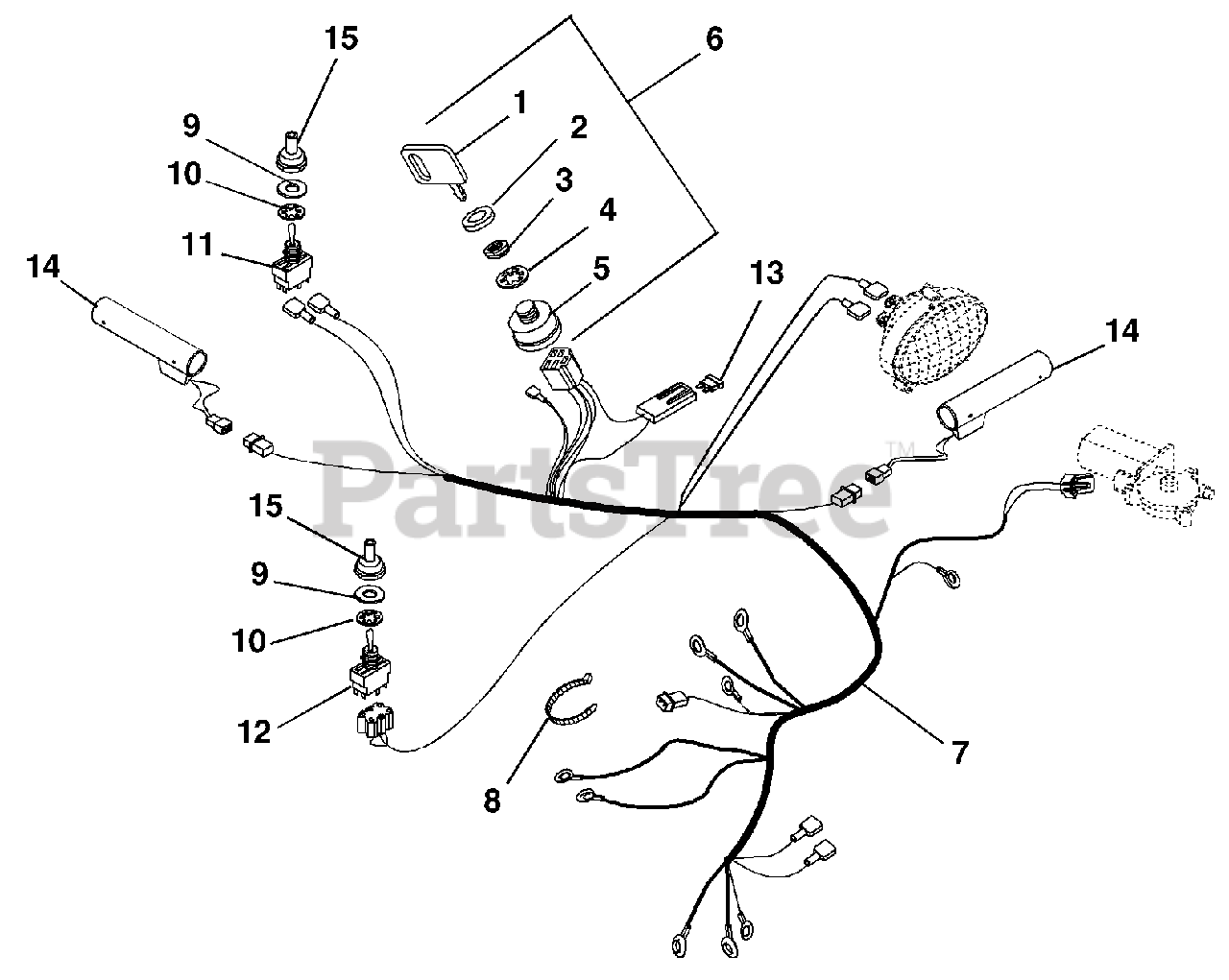

924507 (PB 936) - Ariens 36" Power Brush, 9hp Tecumseh (SN: 000101 - 000799) Electrical Parts Diagram

36" Power Brush, 9hp Tecumseh

Electrical Parts Diagram

  • Title

1

Ariens 02460700

KEY -W/CAP

Note: (Models 300, 505, 506, 508)

$10.99

$

In Stock, Qty 20+

0

2

Ariens 07517700

CAP - IGNITION SWITCH

Note: (Models 300, 505, 506, 508)

$3.99

$

In Stock, Qty 19

0

3

Ariens 06517300

NUT-PANEL .625-32 GRECO

Note: (Models 300, 505, 506, 508)

$9.49

$

Usually ships in 4-12 days

0

4

Ariens 06306900

WSHR-LK-INT .625X.045 YWZC
(Superseded to 06300124)

Note: (Models 300, 505, 506, 508)

$4.99

$

Usually ships in 4-12 days

0

5

Ariens 02739600

IGNITION SWITCH ASSEMBLY
(Superseded to 52709300)

Note: (Models 300, 505, 506, 508)

$58.99

$

In Stock, only 2 left!

0

6

Ariens 52709300

SWITCH ASSEMBLY

Note: (Includes Items 1 thru 5); (Models 300, 505, 506, 508)

$58.99

$

In Stock, only 2 left!

0

7

Ariens 02494400

HARNESS, WIRING-LIGHT&HOT GRIP
(Superseded to 02494401)

Note: (Models 116, 117, 507)

$52.99

$

Usually ships in 4-12 days

0

7

Ariens 02494300

HARNESS, WIRING-LT,HG,12V

Note: (Models 300, 508)

$

$

Not available

7

Ariens 02494200

HARNESS, WIRE-LT,HG,12V,CHUTE

Note: (Models 505, 506)

$

$

Not available

8

Ariens 07517300

CABLE TIE LG 5-1/2

Note: (Models 300, 505, 506, 508)

$

$

Not available

8

Ariens 07517300

CABLE TIE LG 5-1/2

Note: (Models 116, 117, 507)

$

$

Not available

9

Ariens 06403800

WSHR-FL-STL .505X.875X.024 PL

Note: (Models 505, 506)

$2.49

$

In Stock, only 2 left!

0

9

Ariens 06403800

WSHR-FL-STL .505X.875X.024 PL

Note: (Models 116, 117, 300, 507, 508)

$2.49

$

In Stock, only 2 left!

0

10

Ariens 06310900

WSHR-LK-INT .563X.040 YWZC

Note: (Models 505, 506)

$2.49

$

In Stock, only 2 left!

0

10

Ariens 06310900

WSHR-LK-INT .563X.040 YWZC

Note: (Models 116, 117, 300, 507, 508)

$2.49

$

In Stock, only 2 left!

0

11

Ariens 02485700

SWITCH, ON/OFF

$17.99

$

Usually ships in 4-12 days

0

12

Ariens 02485600

SWITCH, CHUTE ROTATION

Note: (Models 505, 506)

$53.99

$

Usually ships in 4-12 days

0

13

Ariens 00524700

FUSE, 15 AMP.

$

$

Not available

14

Ariens 07532900

WARMER, HAND W/TERMINAL
(Superseded to 07500514)

Note: (Recommend Fast Drying Epoxy for Installation)

$49.99

$

In Stock, only 1 left!

0

15

Ariens 09207600

BOOT, SWITCH

Note: (Optional)

$65.99

$

Usually ships in 4-12 days

0
