924515 - Gravely 36" Power Brush, Tecumseh (SN: 000101 & Above) Brush Drive Unit Parts Diagram

36" Power Brush, Tecumseh

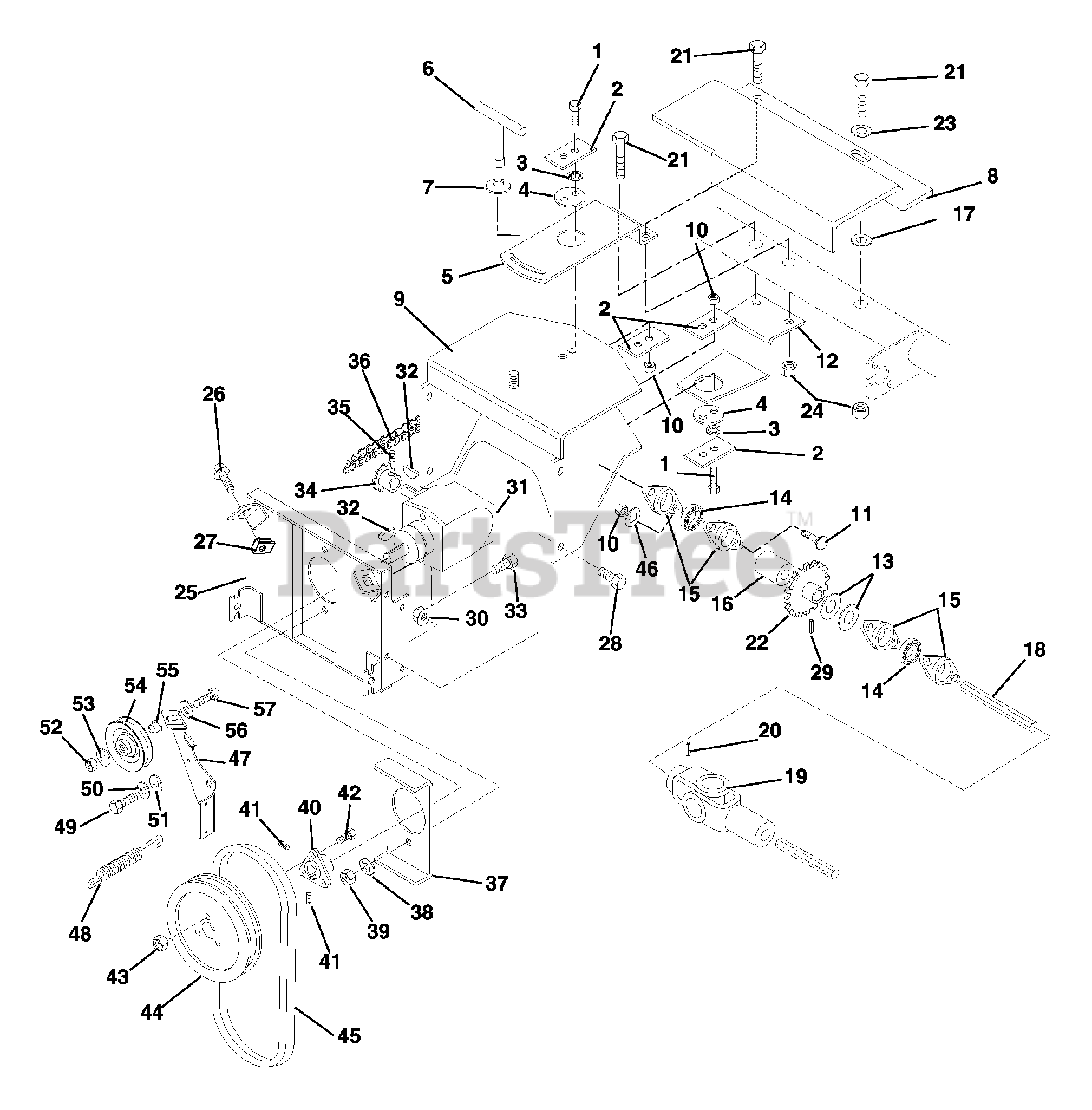

Brush Drive Unit Parts Diagram

  • Title

1

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 11

0

2

Gravely 02404800

RETAINER

$18.99

$

Usually ships in 4-12 days

0

3

Gravely 06307200

WSHR-LK-EXT.326X.599X.031YWZC
(Superseded to 06300125)

$0.99

$

In Stock, Qty 9

0

4

Gravely 02404900

PIVOT CENTER

$21.99

$

Usually ships in 4-12 days

0

5

Gravely 02471751

PLATE, TOP MOUNT

$87.99

$

Usually ships in 4-12 days

0

6

Gravely 02470900

T-LOCK HANDLE

$61.99

$

Usually ships in 4-12 days

0

7

Gravely 00597000

WASHER, CUPPED SERRATED, .375
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

8

Gravely 02470151

GUARD, SHAFT

$

$

Not available

9

Gravely 02405051

FRAME, ADAPTOR

$

$

Not available

10

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 02471851

PLATE, BOTTOM MOUNT

$79.99

$

Usually ships in 4-12 days

0

13

Gravely 039022

WSHR-FL-STL 1.031X1.625X.188
(Superseded to 06400025)

$6.49

$

Usually ships in 4-12 days

0

14

Gravely 05409700

BRG-BALL .884HEXX52MMX1.07

$96.99

$

Usually ships in 4-12 days

0

15

Gravely 02429600

BEARING FLANGE

$6.49

$

Usually ships in 4-12 days

0

16

Gravely 02447600

SPACER 1.006X1.307X.500

$25.99

$

Usually ships in 4-12 days

0

17

Gravely 06436800

WSHR-FL-STL .390X.88X.18 YWZC

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 02429100

SHAFT

$79.99

$

Usually ships in 4-12 days

0

19

Gravely 02495500

JOINT, UNIVERSAL

$291.99

$

Usually ships in 4-12 days

0

20

Gravely 05803000

PIN-ROLL .188X1.50

$1.49

$

In Stock, only 4 left!

0

21

Gravely 05961100

BLT-HEX .38-16X3.25 GR5 YWZC
(Superseded to 05901817)

$4.99

$

In Stock, Qty 20+

0

22

Gravely 01062000

SPROCKET

$105.99

$

Usually ships in 4-12 days

0

23

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 02498851

PLATE, MOUNTING-BROOM

$

$

Not available

26

Gravely 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.99

$

In Stock, only 4 left!

0

27

Gravely 07002600

NUT-RETNR .38-16 TINRMAN

$9.99

$

In Stock, only 2 left!

0

28

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

29

Gravely 036831

PIN-ROLL .188X1.75
(Superseded to 05805600)

$

$

Not available

30

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 02400400

GEAR BOX ASSEMBLY

$571.99

$

Usually ships in 4-12 days

0

32

Gravely 106751

KEY-WDRF .188X.75X.313 SAE 9
(Superseded to 06600300)

$1.49

$

In Stock, Qty 13

0

33

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 18

0

34

Gravely 02429800

SPROCKET

$

$

Not available

35

Gravely 06001100

SCR-SET .25-20X.38 SKHCUPNL OH

$2.99

$

In Stock, only 2 left!

0

36

Gravely 01207800

CHAIN
(Superseded to 02477700)

$16.99

$

In Stock, only 2 left!

0

37

Gravely 02429551

PLATE, STIFFENER

$

$

Not available

38

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

40

Gravely 035892

HUB ASSEMBLY
(Superseded to 50202100)

$87.99

$

In Stock, only 2 left!

0

41

Gravely 06005500

SCR-SET .31-18X.38 SKHCUPDL

$3.49

$

In Stock, only 2 left!

0

42

Gravely 07005300

BLT-SERRDHD SL .31-18X.75 YZ
(Superseded to 07028700)

$6.49

$

Usually ships in 4-12 days

0

43

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

44

Gravely 07307000

PLY-V 9.0 X 1.25 3BLT

$52.99

$

In Stock, only 1 left!

0

45

Gravely 07238400

V-BELT, HA-RAW EDGE

$34.99

$

In Stock, only 4 left!

0

46

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

47

Gravely 52418200

ARM, AUGER/BRAKE-HIGH W/LINING

$59.99

$

Usually ships in 4-12 days

0

48

Gravely 08300001

SG-TENS .06X.492X5.25 WLD 11

$23.99

$

Usually ships in 4-12 days

0

49

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

50

Gravely 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 8

0

51

Gravely 06437500

WSHR-FL-STL .328X1.0X.094 YWZC
(Superseded to 06401027)

$3.99

$

In Stock, only 2 left!

0

52

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

53

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

54

Gravely 02457400

IDLER
(Superseded to 52007000)

$40.99

$

In Stock, only 3 left!

0

55

Gravely 01213100

SPCR, BRG .315X.50X.688X.281

$3.99

$

In Stock, only 2 left!

0

56

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

57

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 11

0
