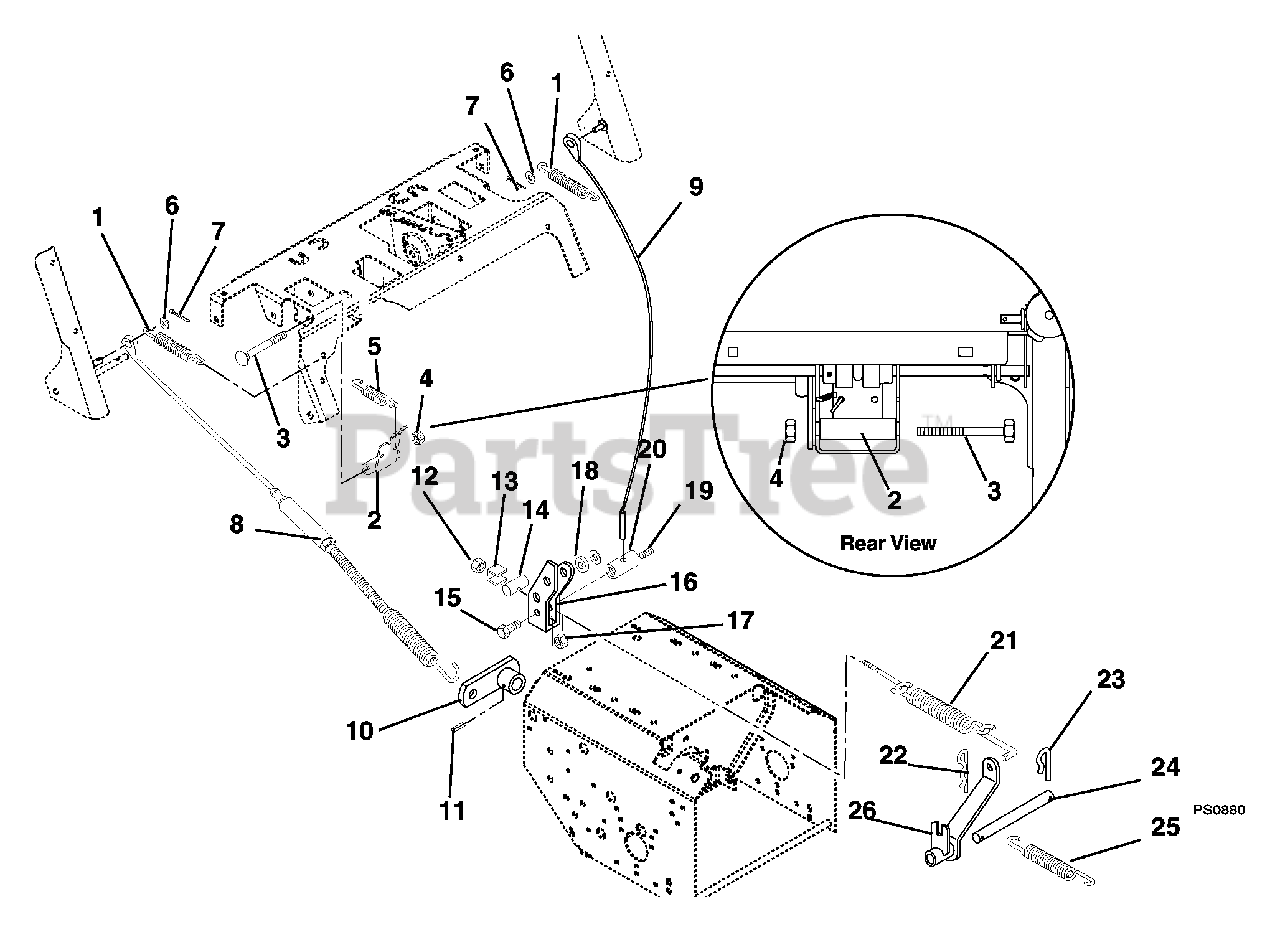

924515 - Gravely 36" Power Brush, Tecumseh (SN: 000101 & Above) Cables And Controls Parts Diagram

36" Power Brush, Tecumseh

Cables And Controls Parts Diagram

  • Title

1

Gravely 08337100

SPRING-EXT .056X.50X3.76

$14.99

$

In Stock, only 2 left!

0

2

Gravely 02492200

ARM, INTERLOCK

$

$

Not available

3

Gravely 05957800

BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$3.49

$

In Stock, Qty 11

0

4

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 08337000

SPRING-EXT .047X.438X1.45

$6.99

$

In Stock, Qty 13

0

6

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06707400

PIN-CTR .09X.50 EXTPRSQCT YWZ

$1.49

$

In Stock, only 2 left!

0

8

Gravely 06947500

CABLE, AUGER

$55.99

$

In Stock, only 3 left!

0

9

Gravely 06947400

CABLE, TRACTION

$64.99

$

In Stock, only 2 left!

0

10

Gravely 02485551

LEVER, CLUTCH

$63.99

$

Usually ships in 4-12 days

0

11

Gravely 05802600

PIN-ROLL .156X.88

$2.99

$

In Stock, Qty 20+

0

12

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.99

$

In Stock, Qty 5

0

13

Gravely 01054200

ADAPTER SPACER

$

$

Not available

14

Gravely 02422700

ADAPTER

$12.99

$

Usually ships in 4-12 days

0

15

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$2.49

$

In Stock, Qty 20+

0

16

Gravely 02422800

CLUTCH ENGAGEMENT YOKE
(Superseded to 02422851)

$30.99

$

Usually ships in 4-12 days

0

17

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$2.49

$

In Stock, Qty 20+

0

18

Gravely 02408600

SPACER 1.00 X .64 X .38

$

$

Not available

19

Gravely 06005500

SCR-SET .31-18X.38 SKHCUPDL

$3.99

$

In Stock, only 1 left!

0

20

Gravely 02213500

ROD ADAPTER

$41.99

$

In Stock, only 2 left!

0

21

Gravely 52404700

SPRING ASSEMBLY

$

$

Not available

22

Gravely 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$1.49

$

In Stock, Qty 7

0

23

Gravely 06944800

CLIP, SPRING

$1.99

$

In Stock, Qty 20+

0

24

Gravely 02406900

ROD, FORK PIVOT

$31.99

$

Usually ships in 4-12 days

0

25

Gravely 08309400

SG-TENS .080X.73X3.06 WLD 20

$36.99

$

In Stock, only 2 left!

0

26

Gravely 02427200

FORK, CLUTCH

$71.99

$

Usually ships in 4-12 days

0
