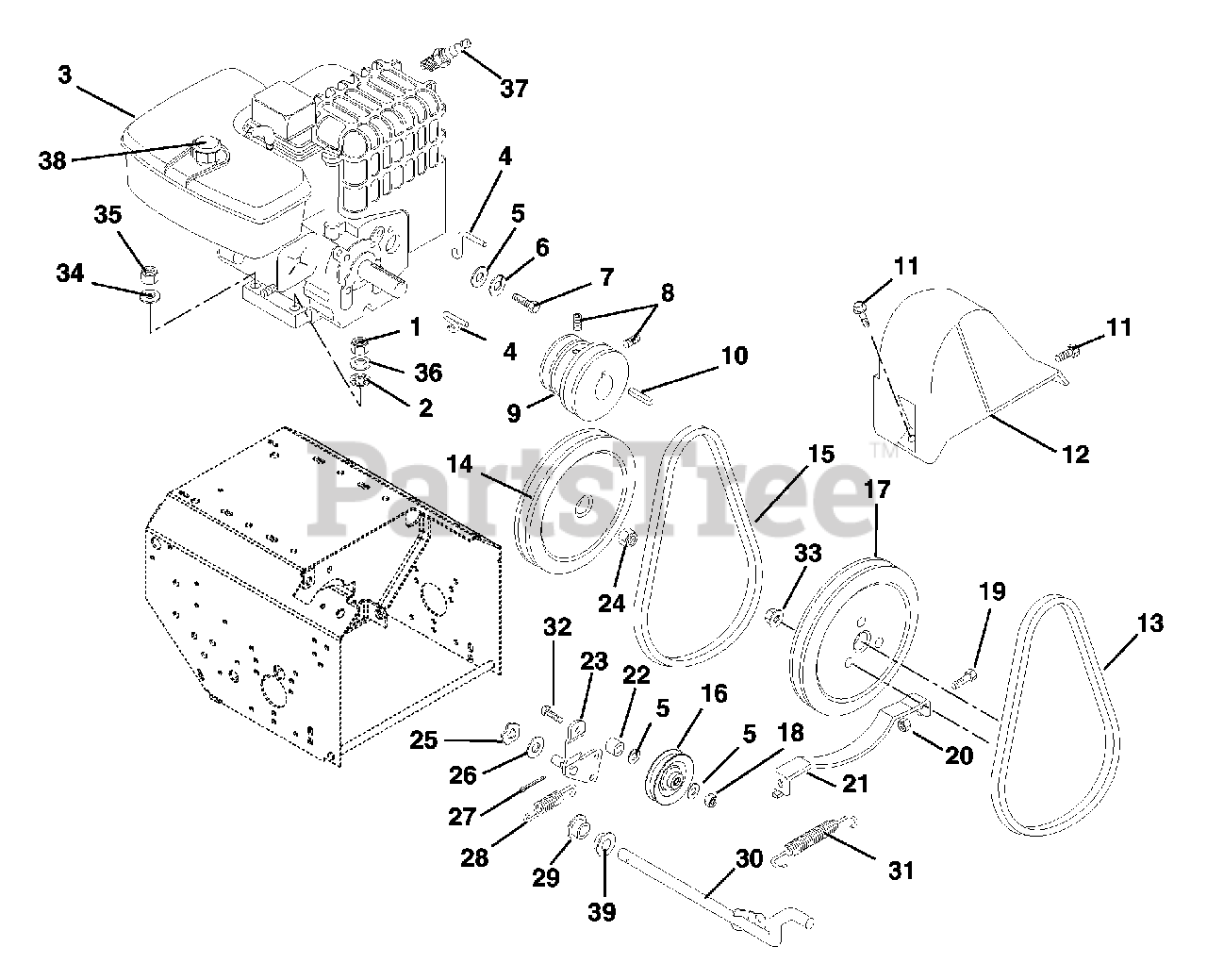

924515 - Gravely 36" Power Brush, Tecumseh (SN: 000101 & Above) Engine And Belt Drive Parts Diagram

36" Power Brush, Tecumseh

Engine And Belt Drive Parts Diagram

  • Title

1

Gravely 06529800

Nut, Locking Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 06310500

Washer, Lock Internal .31

$0.99

$

In Stock, only 3 left!

0

3

Gravely 08261200

Engine, 9HP Tecumseh OHV

$

$

Not available

4

Gravely 02410900

Belt Finger

$34.99

$

Usually ships in 4-12 days

0

5

Gravely 06435700

Washer, Flat Steel .38 x .88 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

6

Gravely 06308600

Washer, Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 05947300

Bolt, Hex .31-24 x .75 Grade 5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06005500

Screw, Set .31-18 x .38

$2.99

$

In Stock, Qty 17

0

9

Gravely 02489100

Engine Sheave

$142.99

$

Usually ships in 4-12 days

0

10

Gravely 06601800

Key, Straight .25 x 1.75 x .25

$3.99

$

In Stock, only 2 left!

0

11

Gravely 07412000

Screw, Tap .25-20 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 02489000

Belt Cover
(Superseded to 52422600)

$129.99

$

In Stock, only 1 left!

0

13

Gravely 07238400

V-Belt

$31.99

$

In Stock, Qty 8

0

14

Gravely 07325700

Pulley-V 8.40 x 1.00 with Key

$59.99

$

Usually ships in 4-12 days

0

15

Gravely 07211200

V-Belt,Traction Drive

$17.99

$

In Stock, Qty 13

0

16

Gravely 02457400

Idler
(Superseded to 52007000)

$39.99

$

In Stock, Qty 15

0

17

Gravely 07307000

Pulley-V 9.0 x 1.25

$34.99

$

In Stock, Qty 6

0

18

Gravely 06529800

Nut, Locking Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 05947900

Bolt, Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 5

0

20

Gravely 06529700

Nut, Locking Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 02423651

Belt Retainer

$22.99

$

Usually ships in 4-12 days

0

22

Gravely 01103100

Spacer

$3.99

$

In Stock, only 1 left!

0

23

Gravely 02453751

Idler Arm

$77.99

$

Usually ships in 4-12 days

0

24

Gravely 06530300

Nut, Locking Nylon .63-18
(Superseded to 06500936)

$3.99

$

In Stock, Qty 11

0

25

Gravely 01026000

Wave Washer

$2.49

$

Usually ships in 4-12 days

0

26

Gravely 06436500

Washer, Flat Steel .38 x .81 x .023

$2.49

$

In Stock, only 2 left!

0

27

Gravely 06707000

Pin, Cotter .09 x 1.00
(Superseded to 121224)

$0.99

$

Usually ships in 4-12 days

0

28

Gravely 08309400

Spring, Tension .80 x .73 x 3.06

$34.99

$

In Stock, only 2 left!

0

29

Gravely 036057

Bushing, Flange Nylon .50 x .63 x .31 x .75
(Superseded to 05503700)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 02498600

Shaft, Activating

$131.99

$

Usually ships in 4-12 days

0

31

Gravely 08317200

Spring, Tension .05 x .44 x 3.37

$14.99

$

In Stock, only 4 left!

0

32

Gravely 05947500

Bolt, Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, only 2 left!

0

33

Gravely 06530400

Nut, Locking Flange .31-18
(Superseded to 06500815)

$1.49

$

In Stock, only 2 left!

0

34

Gravely 06307400

Washer, Locking .31 x .097 Heavy
(Superseded to 06300123)

$0.99

$

In Stock, only 4 left!

0

35

Gravely 06529200

Nut, Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

36

Gravely 06437200

Washer, Flat Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 9

0

37

Gravely 21533500

Plug, Spark

$4.49

$

In Stock, Qty 18

0

38

Gravely 07531800

Fuel Cap

$11.99

$

In Stock, only 2 left!

0

39

Gravely 035958

Bushing, Flange .50 x.63 x.50 x.75
(Superseded to 05502100)

$3.99

$

In Stock, Qty 9

0
