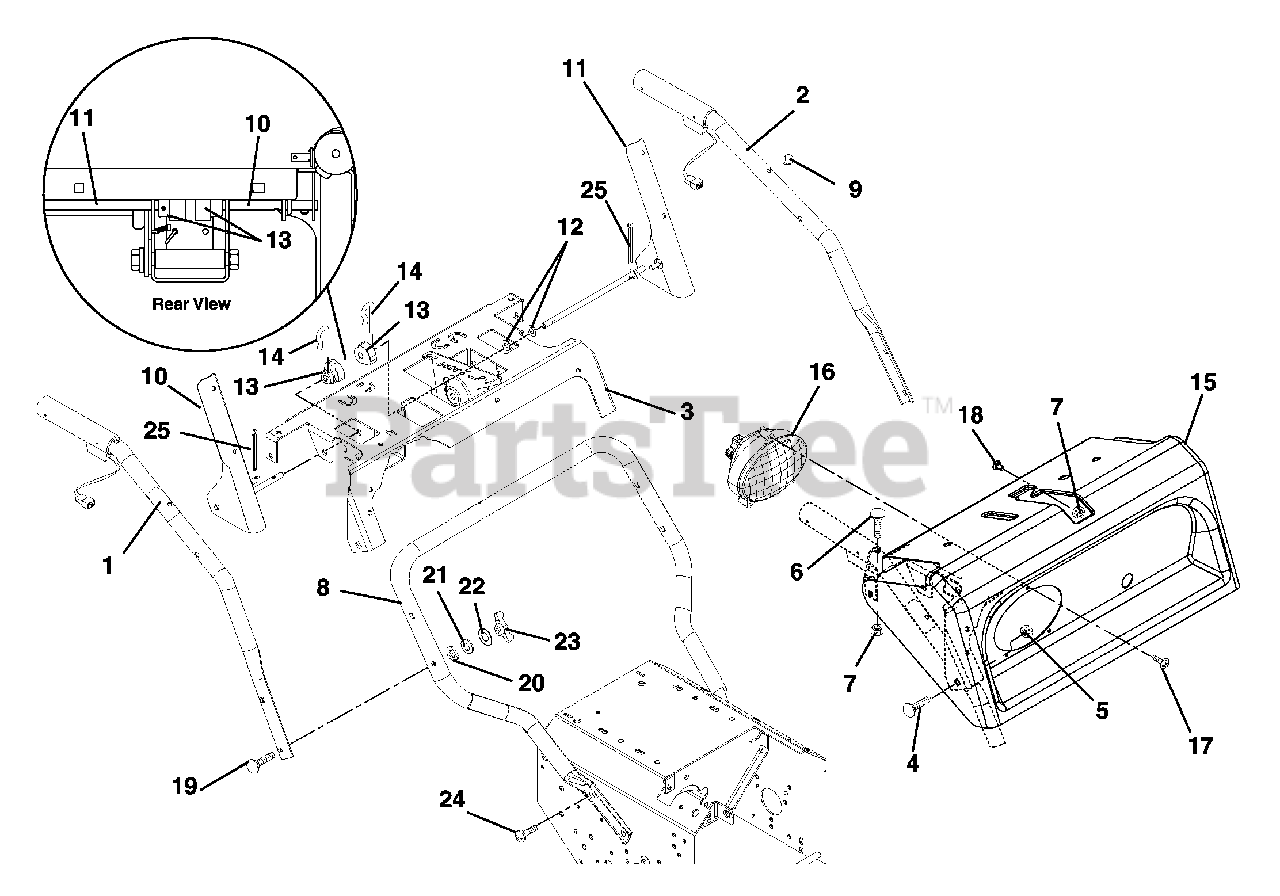

924515 - Gravely 36" Power Brush, Tecumseh (SN: 000101 & Above) Handlebars, Lever Controls, Panel And Dash Parts Diagram

36" Power Brush, Tecumseh

Handlebars, Lever Controls, Panel And Dash Parts Diagram

  • Title

1

Gravely 52415100

HANDLEBAR, UPPER RH

Note: (Includes Hand Warmer)

$

$

Not available

2

Gravely 52415200

HANDLEBAR, UPPER LH

Note: (Includes Hand Warmer)

$135.99

$

Usually ships in 4-12 days

0

3

Gravely 02491651

PANEL, SUB

$265.99

$

Usually ships in 4-12 days

0

4

Gravely 06212100

BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.99

$

In Stock, Qty 11

0

5

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5YZ

$2.99

$

In Stock, Qty 9

0

7

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 02491851

HANDLEBAR, LOWER

$246.99

$

Usually ships in 4-12 days

0

9

Gravely 07511800

BUMPER

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 52416600

KIT, RH LEVER W/GRIP

$62.99

$

In Stock, only 2 left!

0

11

Gravely 52416700

KIT, LH LEVER W/GRIP

$83.99

$

In Stock, only 2 left!

0

12

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 02492100

CAM, INTERLOCK
(Superseded to 03888100)

$8.49

$

In Stock, only 2 left!

0

14

Gravely 06714500

PIN, SPRING CLIP

$2.99

$

In Stock, Qty 20+

0

15

Gravely 52419000

PANEL W/CONTROL DECAL-GRAVELY

$

$

Not available

16

Gravely 02485000

HEADLAMP, OVAL W/ 1156 BULB
(Superseded to 52423200)

$58.99

$

Usually ships in 4-12 days

0

17

Gravely 07416700

SCR-TAP 10-16X.75 HI-LO PPH

$0.99

$

Usually ships in 4-12 days

0

18

Gravely 06214300

BLT-RDHDSQSHNK.25-20X.50 YWZC
(Superseded to 06200305)

$1.99

$

In Stock, only 3 left!

0

19

Gravely 06221600

BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$3.49

$

In Stock, Qty 12

0

20

Gravely 06446800

WASHER,SADDLE-.320 X.937 X.062

$0.99

$

Usually ships in 4-12 days

0

21

Gravely 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 8

0

22

Gravely 06439400

WSHR-FL-STL .328X.875X.062YWZC

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

$3.99

$

In Stock, Qty 20+

0

24

Gravely 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.99

$

In Stock, only 3 left!

0

25

Gravely 06706900

PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, only 2 left!

0
