924515 - Gravely 36" Power Brush, Tecumseh (SN: 000101 & Above) Reduction Drive Parts Diagram

36" Power Brush, Tecumseh

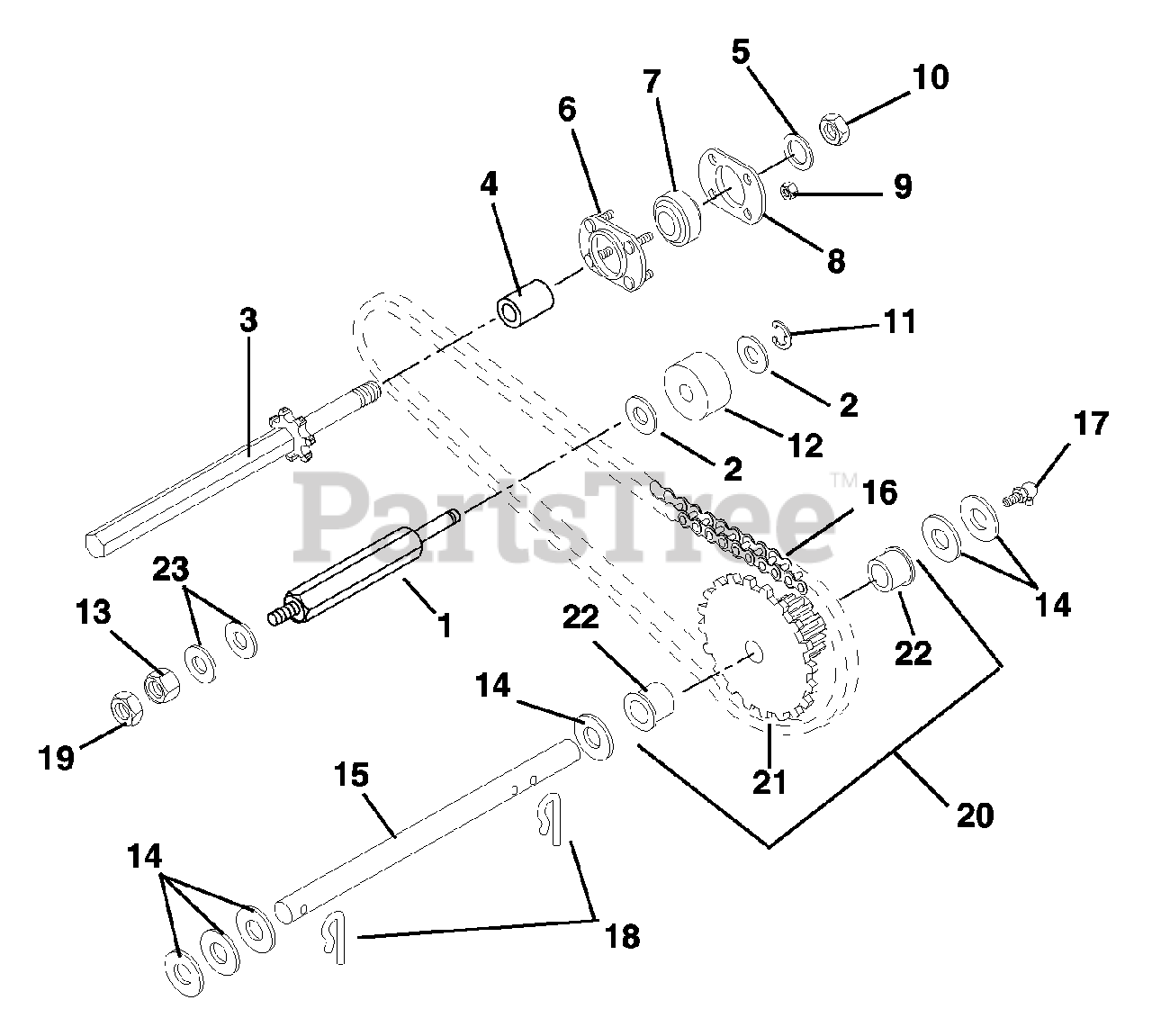

Reduction Drive Parts Diagram

  • Title

1

Gravely 02477300

Hex Shaft

$77.99

$

In Stock, Qty 5

0

2

Gravely 06437200

Washer, Flat Steel .34 x .69 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 8

0

3

Gravely 02498900

Shaft, Hex with Sprocket
(Superseded to 52422100)

$77.99

$

In Stock, only 1 left!

0

4

Gravely 05531600

Spacer .45 x .75 x 1.60

$13.99

$

In Stock, only 3 left!

0

5

Gravely 06436600

Washer, Flat Steel .51 x .88 x .072
(Superseded to 06401126)

$3.99

$

In Stock, only 2 left!

0

6

Gravely 00308500

Bearing Flange

$22.99

$

In Stock, only 4 left!

0

7

Gravely 05435200

Bearing, Ball .44 x 1.38 x .44

$9.49

$

In Stock, Qty 20+

0

8

Gravely 02414100

Bearing Flange

$18.99

$

In Stock, only 1 left!

0

9

Gravely 06530600

Nut, Locking Dual Face 10-24

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06536400

Nut, Locking Center .44-14
(Superseded to 06500930)

$2.99

$

Usually ships in 4-12 days

0

11

Gravely 05718300

Ring, Retaining External .31 x .025

$2.49

$

In Stock, Qty 13

0

12

Gravely 07530500

Idler

$3.99

$

In Stock, Qty 20+

0

13

Gravely 06529800

Nut, Locking Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06436100

Washer, Flat Steel .630 x 1.01 x .062
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 02496900

Shaft, Pinion
(Superseded to 52422400)

$48.99

$

In Stock, only 4 left!

0

16

Gravely 02477700

Roller Chain #41-34 Pitches

$14.99

$

In Stock, only 2 left!

0

17

Gravely 07029700

Fitting, Hydraulic Drive

$11.99

$

Usually ships in 4-12 days

0

18

Gravely 06714500

Pin, Spring Clip

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06536100

Nut, Jam .31-18
(Superseded to 06500909)

$0.99

$

In Stock, only 3 left!

0

20

Gravely 52403200

Pinion and Sprocket Assembly

Note: (Contains Items 21,22)

$

$

Not available

21

Gravely 02436800

Pinion and Sprocket
(Superseded to 52403200)

$

$

Not available

22

Gravely 05502600

Bushing, Flange .63 x .75 x .50 x .88
(Superseded to 05500111)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06435700

Washer, Flat Steel .38 x .88 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0
