924515 - Gravely 36" Power Brush, Tecumseh (SN: 000101 & Above) Wheels And Axle Parts Diagram

36" Power Brush, Tecumseh

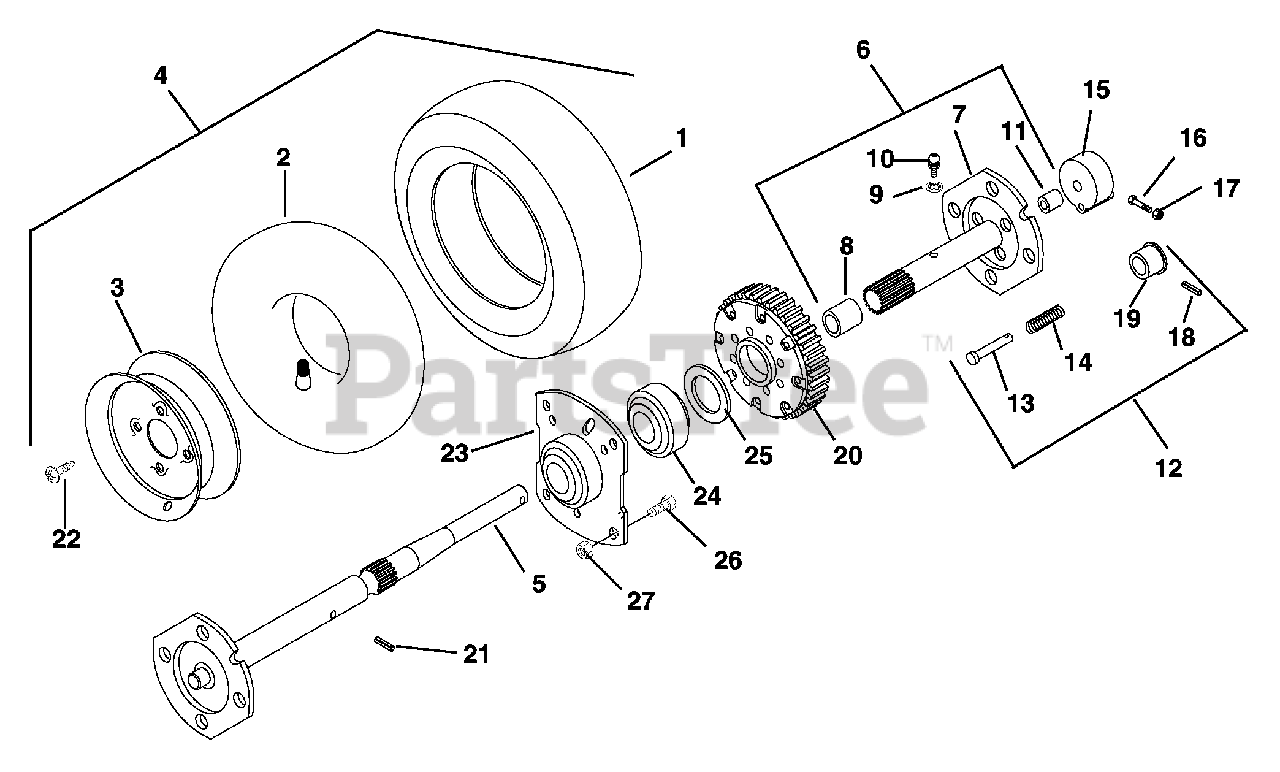

Wheels And Axle Parts Diagram

  • Title

1

Gravely 07121600

Tire 16 x 6.50-8
(Superseded to 07124000)

$

$

Not available

2

Gravely 07108700

Tube 6.50 x 8

$34.99

$

Usually ships in 4-12 days

0

3

Gravely 07107700

Wheel 6.50-8

$82.99

$

Usually ships in 4-12 days

0

4

Gravely 07121700

Tire/Wheel Assembly #35-16 x 6.50
(Superseded to 07100018)

$

$

Not available

5

Gravely 02475800

Axle, Right Hand

$338.99

$

In Stock, only 1 left!

0

6

Gravely 52405500

Axle Assembly Left Hand

Note: (Contains Items 7-11)

$198.99

$

Usually ships in 4-12 days

0

7

Gravely 02441051

Axle, Left Hand
(Superseded to 52405500)

$198.99

$

Usually ships in 4-12 days

0

8

Gravely 05505700

Bushing, Sleeve .75 x .81 x .75

$17.99

$

In Stock, only 1 left!

0

9

Gravely 06307000

Washer, Locking .25 x .05

$2.49

$

Usually ships in 4-12 days

0

10

Gravely 411027

Fitting, Lube .25-28 x .26
(Superseded to 07012600)

$

$

Not available

11

Gravely 05502900

Bushing, Sleeve .56 x .63 x .63

$13.99

$

In Stock, Qty 11

0

12

Gravely 52405900

Lockout Hub Assembly

Note: (Contains Items 13-15,18,19)

$135.99

$

In Stock, only 1 left!

0

13

Gravely 01037400

Pin

$17.99

$

Usually ships in 4-12 days

0

14

Gravely 08300700

Spring, Compression .03 x.34 x 1.06

$5.99

$

Usually ships in 4-12 days

0

15

Gravely 01037200

Lockout Hub

$85.99

$

In Stock, only 1 left!

0

16

Gravely 05948100

Screw, Cap .25-20 x 2.00 Grade 8

$2.49

$

In Stock, only 1 left!

0

17

Gravely 06530900

Nut, Jam Nylon .25-20

$0.99

$

In Stock, Qty 9

0

18

Gravely 05803200

Pin, Roll .09 x 1.00

$0.99

$

Usually ships in 4-12 days

0

19

Gravely 01037500

Knob

$53.99

$

Usually ships in 4-12 days

0

20

Gravely 52405300

Differential Assembly

$610.99

$

Usually ships in 4-12 days

0

21

Gravely 05803000

Pin Roll .19 x 1.50

$0.99

$

In Stock, Qty 20+

0

22

Gravely 07416900

Screw, Tapping .50-20 x .62 Hex Head
(Superseded to 07001825)

$13.99

$

In Stock, only 3 left!

0

23

Gravely 02457853

Bearing Retainer
(Superseded to 02457800)

$16.99

$

Usually ships in 4-12 days

0

24

Gravely 05417700

Bearing, Ball 1.13 x 2.19 x .63

$27.99

$

In Stock, Qty 10

0

25

Gravely 06437400

Washer, Flat Steel 1.14 x 1.72 x .13

$5.99

$

In Stock, only 3 left!

0

26

Gravely 07028600

Bolt Serrated Neck Slotted .25-20 x .50

$3.99

$

In Stock, Qty 20+

0

27

Gravely 06530100

Nut, Locking Flange .25-20
(Superseded to 06500824)

$0.99

$

In Stock, Qty 17

0
