924519 - Gravely 36" Power Brush, Tecumseh (SN: 000101 & Above) Brush Head Parts Diagram

36" Power Brush, Tecumseh

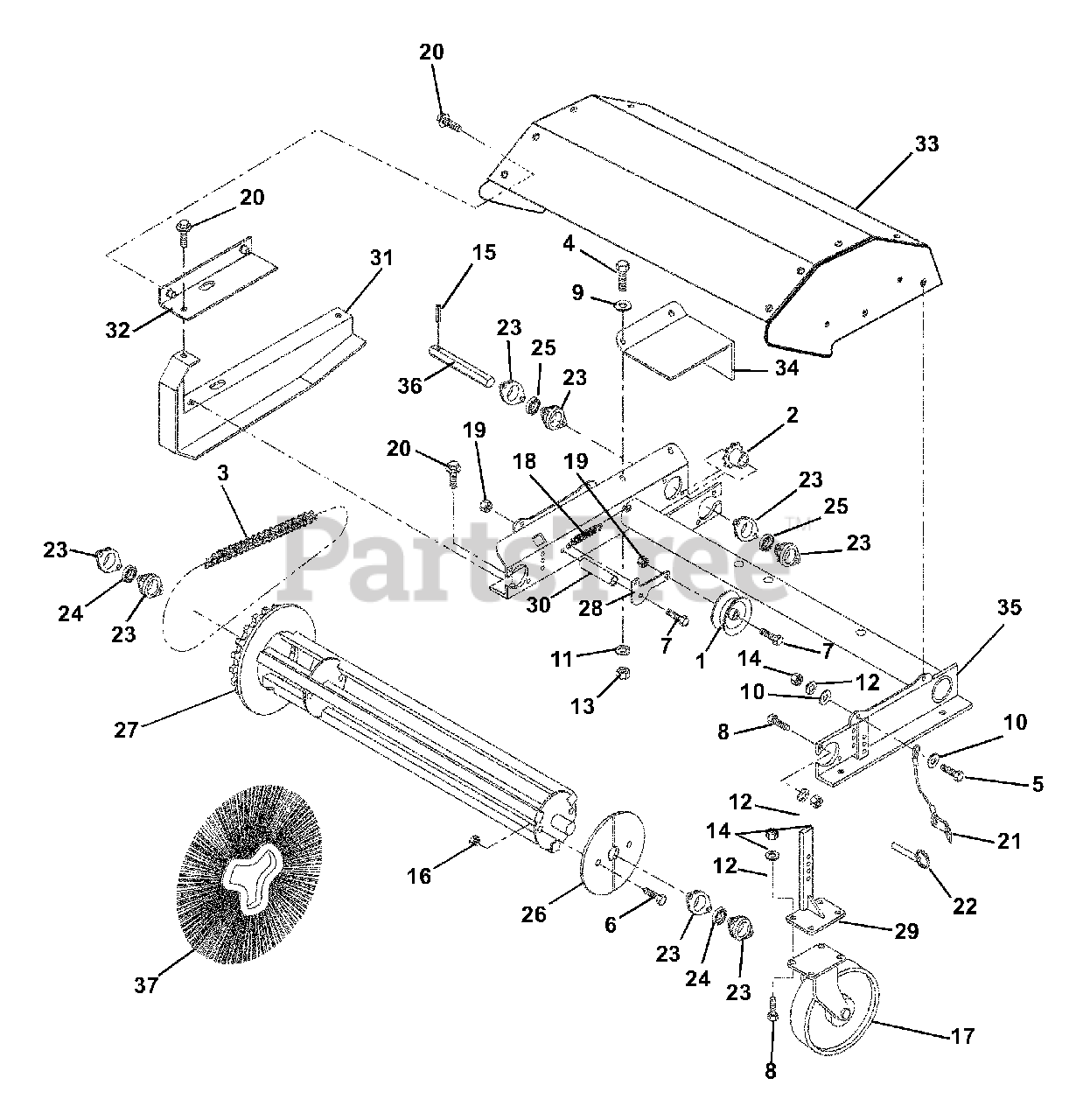

Brush Head Parts Diagram

  • Title

1

Gravely 01061300

Chain Tightener

$

$

Not available

2

Gravely 01060900

Sprocket

$

$

Not available

3

Gravely 02468300

Chain, Assembly #40 x 106

$105.99

$

Usually ships in 4-12 days

0

4

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$1.49

$

In Stock, Qty 5

0

5

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.99

$

In Stock, Qty 5

0

6

Gravely 05963700

Bolt, Hex .31-18 x 2.25 Grade 5
(Superseded to 05901806)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 05957900

Bolt, Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.99

$

In Stock, Qty 5

0

8

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 06437300

Washer, Flat Steel .28 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 10

0

10

Gravely 06435800

Washer, Flat Steel .31 x .73 x .065
(Superseded to 06401124)

$1.49

$

In Stock, Qty 7

0

11

Gravely 06308400

Washer, Lock .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

12

Gravely 06308600

Washer, Lock .31 x .078 Regular
(Superseded to 06300119)

$1.49

$

In Stock, Qty 18

0

13

Gravely 06533200

Nut, Hex .25-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 6

0

14

Gravely 06529200

Nut, Hex .31-18
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

15

Gravely 02468400

Pin, Spring Lok .19 x 1.25

$

$

Not available

16

Gravely 02468500

Nut, Lok Stamped .31-18

$

$

Not available

17

Gravely 07109400

Wheel, 5 inch Diameter

$123.99

$

In Stock, Qty 7

0

18

Gravely 02468600

Spring, Tension .50 x 3.00

$

$

Not available

19

Gravely 06529600

Nut, Locking Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 02468700

Screw, Gear 10.9 M6 x 1-20

$

$

Not available

21

Gravely 02468800

Lanyard .06 Cable 1.25 x 6

$

$

Not available

22

Gravely 00547800

Pin, Hitch .38 x 2

$11.99

$

Usually ships in 4-12 days

0

23

Gravely 02411300

Flange, Spherical 2 inch

$8.49

$

Usually ships in 4-12 days

0

24

Gravely 05423400

Bearing 1.00 Bore, Spherical

$

$

Not available

25

Gravely 05409700

Bearing, Ball .84 Hex x 52 MM x 1.07

$96.99

$

Usually ships in 4-12 days

0

26

Gravely 01062900

Retainer Plate

$

$

Not available

27

Gravely 02469000

Weldment, Core

$

$

Not available

28

Gravely 02469100

Arm, Idler

$

$

Not available

29

Gravely 02469200

Weldment, Caster Leg

$197.99

$

In Stock, only 1 left!

0

30

Gravely 02469300

Bushing .62 x 12 Gauge x .75

$

$

Not available

31

Gravely 02469400

Shield, Chain

$

$

Not available

32

Gravely 02469500

Shield Chain Top

$

$

Not available

33

Gravely 02469600

Weldment, Faceted Hood

$

$

Not available

34

Gravely 02469700

Shield, Input

$

$

Not available

35

Gravely 02469800

Weldment, Broom Frame

$

$

Not available

36

Gravely 02469900

Shaft, Hex 20.5 with Hole
(Superseded to 02490600)

$

$

Not available

37

Gravely 02470000

Set, 24 Section

$597.99

$

Usually ships in 4-12 days

0
