924519 - Gravely 36" Power Brush, Tecumseh (SN: 000101 & Above) Electrical Parts Diagram

36" Power Brush, Tecumseh

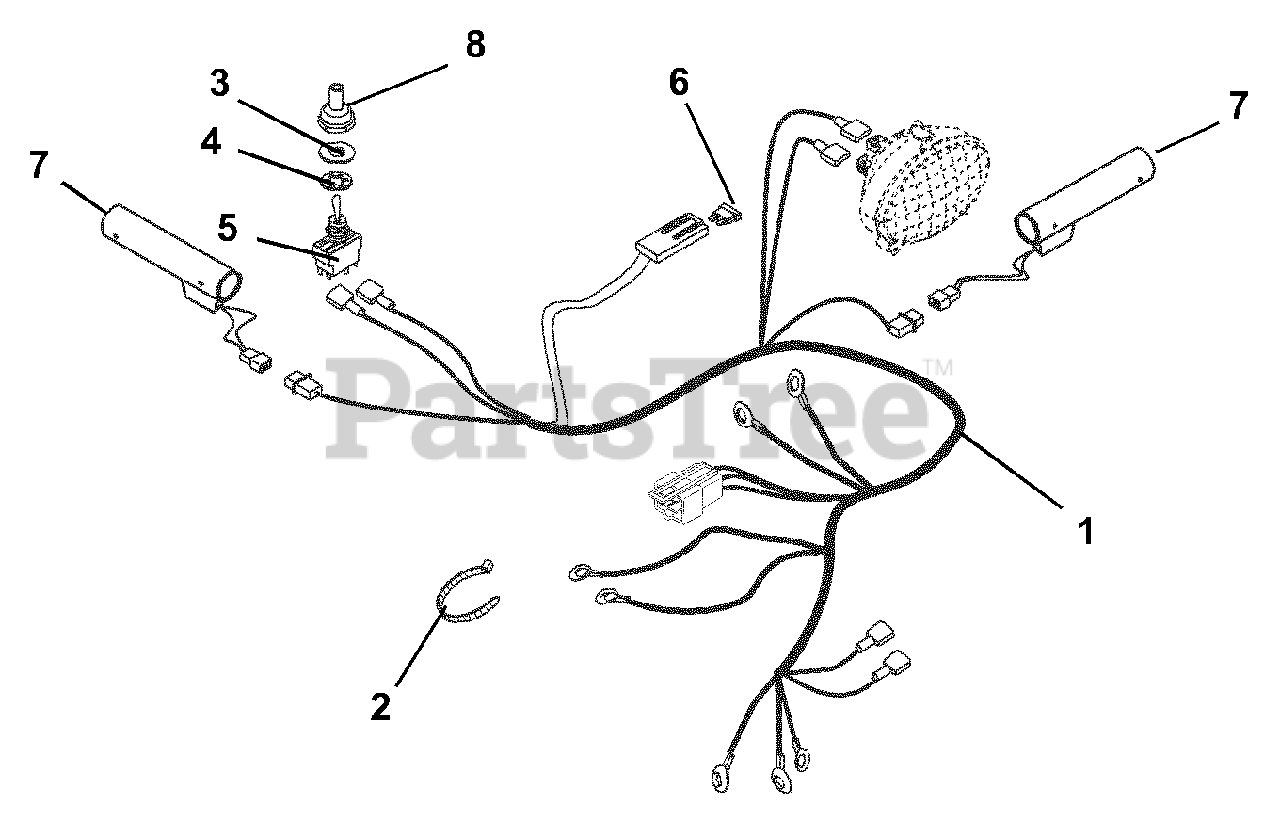

Electrical Parts Diagram

  • Title

1

Gravely 00277600

HARNESS, WIRE-LIGHT,HANDWARMER
(Superseded to 00277601)

$92.99

$

Usually ships in 4-12 days

0

2

Gravely 036313

CABLE TIE LG 5-1/2
(Superseded to 07517300)

$1.49

$

Usually ships in 4-12 days

0

3

Gravely 036523

WSHR-FL-STL .505X.875X.024 PL
(Superseded to 06403800)

$2.49

$

Usually ships in 4-12 days

0

4

Gravely 06310900

WSHR-LK-INT .563X.040 YWZC

$2.49

$

In Stock, only 1 left!

0

5

Gravely 02485700

SWITCH, ON/OFF

$17.99

$

In Stock, only 1 left!

0

6

Gravely 00524700

FUSE, 15 AMP.

$

$

Not available

7

Gravely 07532900

WARMER, HAND W/TERMINAL
(Superseded to 07500514)

Note: (Recommend Fast Drying Epoxy for Installation)

$49.99

$

In Stock, only 2 left!

0

8

Gravely 09207600

BOOT, SWITCH

Note: (Optional)

$65.99

$

Usually ships in 4-12 days

0
