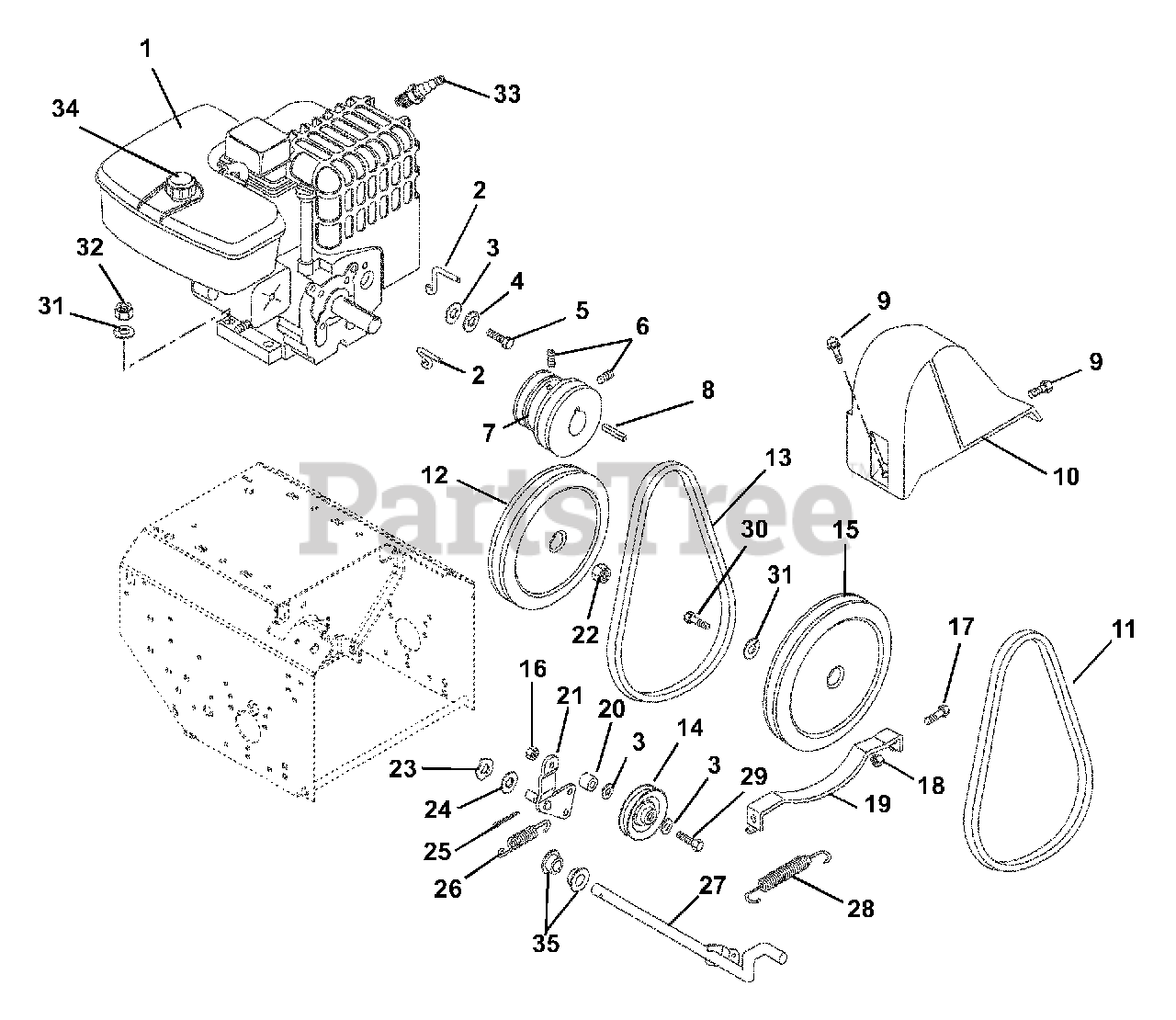

924519 - Gravely 36" Power Brush, Tecumseh (SN: 000101 & Above) Engine And Belt Drive Parts Diagram

36" Power Brush, Tecumseh

Engine And Belt Drive Parts Diagram

  • Title

1

Gravely 08261200

Engine, 9HP Tecumseh OHV

$

$

Not available

2

Gravely 02410900

Belt Finger

$34.99

$

Usually ships in 4-12 days

0

3

Gravely 06435700

Washer, Flat Steel .38 x .88 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

4

Gravely 06308600

Washer, Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 05947300

Bolt, Hex .31-24 x .75 Grade 5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06005500

Screw, Set .31-18 x .38

$2.99

$

In Stock, Qty 17

0

7

Gravely 00261900

Engine Sheave

$297.99

$

Usually ships in 4-12 days

0

8

Gravely 06601800

Key, Straight .25 x 1.75 x .25

$3.99

$

In Stock, only 2 left!

0

9

Gravely 07412000

Screw, Tap .25-20 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 02489000

Belt Cover
(Superseded to 52422600)

$129.99

$

In Stock, only 1 left!

0

11

Gravely 07200004

V-Belt

$34.99

$

In Stock, Qty 20+

0

12

Gravely 07325700

Pulley-V 8.40 x 1.00 with Key

$59.99

$

Usually ships in 4-12 days

0

13

Gravely 07211200

V-Belt,Traction Drive

$17.99

$

In Stock, Qty 13

0

14

Gravely 02457400

Idler
(Superseded to 52007000)

$39.99

$

In Stock, Qty 15

0

15

Gravely 00258500

Pulley .87 x 8.5
(Superseded to 52610800)

$60.99

$

Usually ships in 4-12 days

0

16

Gravely 06529800

Nut, Locking Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 05947900

Bolt, Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 5

0

18

Gravely 06529700

Nut, Locking Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 02423651

Belt Retainer

$22.99

$

Usually ships in 4-12 days

0

20

Gravely 01103100

Spacer

$3.99

$

In Stock, only 1 left!

0

21

Gravely 02453751

Idler Arm

$77.99

$

Usually ships in 4-12 days

0

22

Gravely 06530300

Nut, Locking Nylon .63-18
(Superseded to 06500936)

$3.99

$

In Stock, Qty 11

0

23

Gravely 01026000

Wave Washer

$2.49

$

Usually ships in 4-12 days

0

24

Gravely 06436500

Washer, Flat Steel .38 x .81 x .023

$2.49

$

In Stock, only 2 left!

0

25

Gravely 06707000

Pin, Cotter .09 x 1.00
(Superseded to 121224)

$0.99

$

Usually ships in 4-12 days

0

26

Gravely 08309400

Spring, Tension .80 x .73 x 3.06

$34.99

$

In Stock, only 2 left!

0

27

Gravely 02498600

Shaft, Activating

$131.99

$

Usually ships in 4-12 days

0

28

Gravely 08317200

Spring, Tension .05 x .44 x 3.37

$14.99

$

In Stock, only 4 left!

0

29

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

30

Gravely 05947300

Bolt, Hex .3-24 x .75
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 06307400

Washer, Locking .31 x .097 Heavy
(Superseded to 06300123)

$0.99

$

In Stock, only 4 left!

0

32

Gravely 06529200

Nut, Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

33

Gravely 21533500

Plug, Spark

$4.49

$

In Stock, Qty 16

0

34

Gravely 07531800

Fuel Cap

$11.99

$

In Stock, only 2 left!

0

35

Gravely 05502100

Bushing, Flange .50 x.63 x.50 x.75

$3.99

$

In Stock, Qty 9

0
