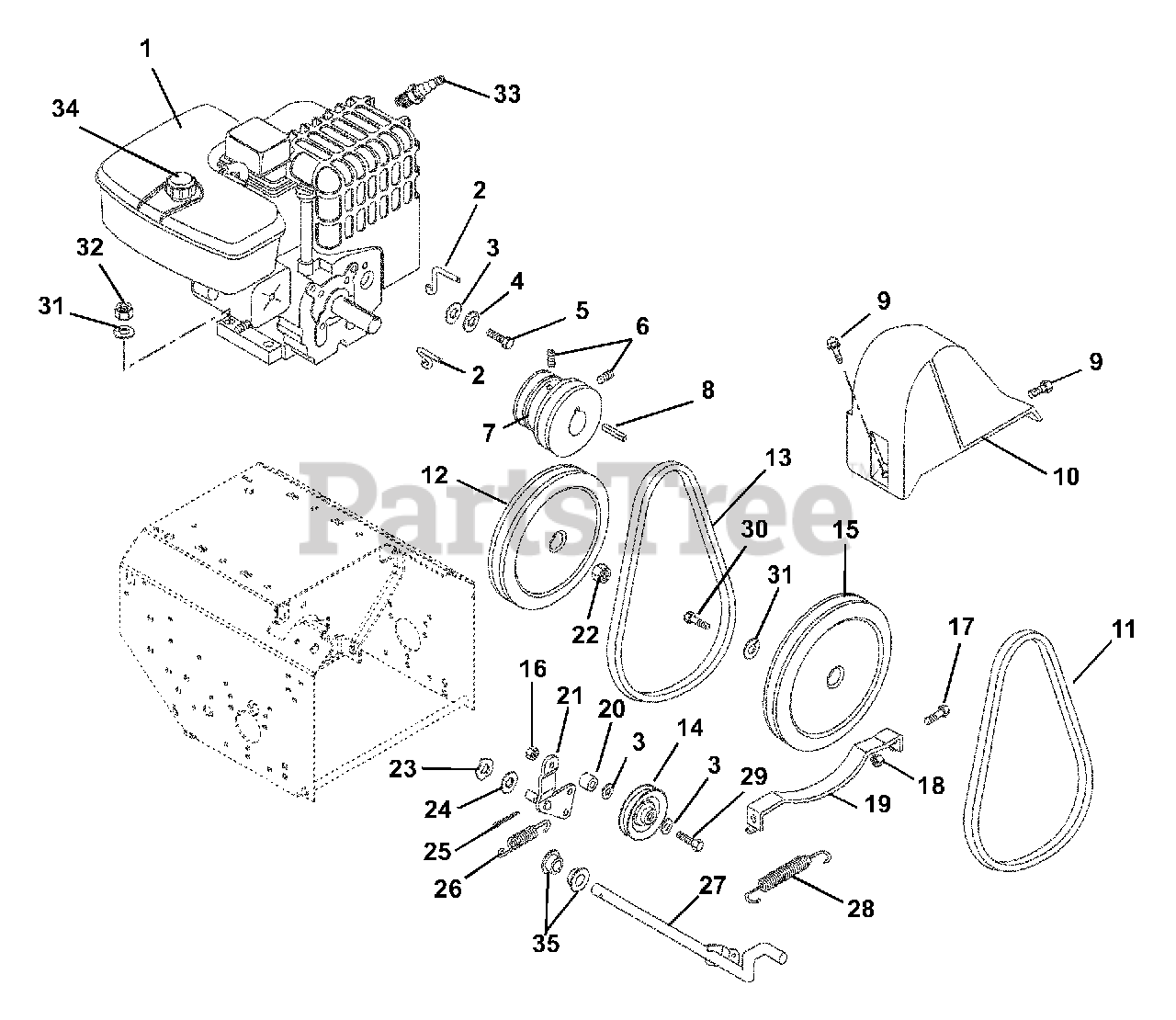

924519 - Gravely 36" Power Brush, Tecumseh (SN: 000101 & Above) Engine And Belt Drive Parts Diagram

36" Power Brush, Tecumseh

Engine And Belt Drive Parts Diagram

  • Title

1

Gravely 08261200

ENGINE,9HP OHV TEC.-ALL SEASON

$

$

Not available

2

Gravely 02410900

BELT FINGER

$26.99

$

In Stock, only 2 left!

0

3

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.99

$

In Stock, Qty 5

0

6

Gravely 06005500

SCR-SET .31-18X.38 SKHCUPDL

$3.49

$

In Stock, only 2 left!

0

7

Gravely 00261900

SHEAVE, ENGINE

$329.99

$

Usually ships in 4-12 days

0

8

Gravely 06601800

KEY-STR .25X1.75X.25

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 02489000

COVER, BELT
(Superseded to 52422600)

$

$

Not available

11

Gravely 07200004

V-BELT, 4L-RAW EDGE

$36.99

$

In Stock, Qty 20+

0

12

Gravely 07325700

PLY-V 8.40X1.00 W/KEY

$60.99

$

In Stock, only 2 left!

0

13

Gravely 07211200

V-BELT, 3L-RAW EDGE

$19.99

$

In Stock, only 3 left!

0

14

Gravely 02457400

IDLER
(Superseded to 52007000)

$40.99

$

In Stock, Qty 10

0

15

Gravely 00258500

PULLEY, 4L W/HUB, .87 X 8.5
(Superseded to 52610800)

$62.99

$

In Stock, only 1 left!

0

16

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 2 left!

0

18

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 02423651

BELT RETAINER

$23.99

$

Usually ships in 4-12 days

0

20

Gravely 01103100

SPACER .50 X .32 X .42

$3.99

$

In Stock, Qty 12

0

21

Gravely 02453751

IDLER ARM

$

$

Not available

22

Gravely 06530300

NUT-LK-NYL .625-18 YWZC
(Superseded to 06500936)

$4.99

$

In Stock, Qty 8

0

23

Gravely 01026000

WAVE WASHER .406X.750X.063FH

$2.99

$

In Stock, only 2 left!

0

24

Gravely 06436500

WSHR-FL-STL .382X.812X.023YWZC

$2.49

$

In Stock, only 2 left!

0

25

Gravely 06707000

PIN-CTR .09X1.00 EXTPRSQCT YZ
(Superseded to 121224)

$0.99

$

In Stock, Qty 11

0

26

Gravely 08309400

SG-TENS .080X.73X3.06 WLD 20

$35.99

$

In Stock, only 2 left!

0

27

Gravely 02498600

SHAFT, ACTIVATING-WELDMENT

$134.99

$

Usually ships in 4-12 days

0

28

Gravely 08317200

SG-TENS .047X.44X3.37 WLD 1.47

$15.99

$

Usually ships in 4-12 days

0

29

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

30

Gravely 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.99

$

In Stock, Qty 5

0

31

Gravely 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 8

0

32

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

33

Gravely 21533500

PLUG, SPARK

$3.99

$

Usually ships in 4-12 days

0

34

Gravely 07531800

CAP, FUEL - TECUMSEH

$20.99

$

In Stock, only 2 left!

0

35

Gravely 05502100

BSHG-FLG .500X.625X.500X.750

$3.99

$

In Stock, Qty 19

0
