924519 - Gravely 36" Power Brush, Tecumseh (SN: 000101 & Above) Friction Wheel Drive Parts Diagram

36" Power Brush, Tecumseh

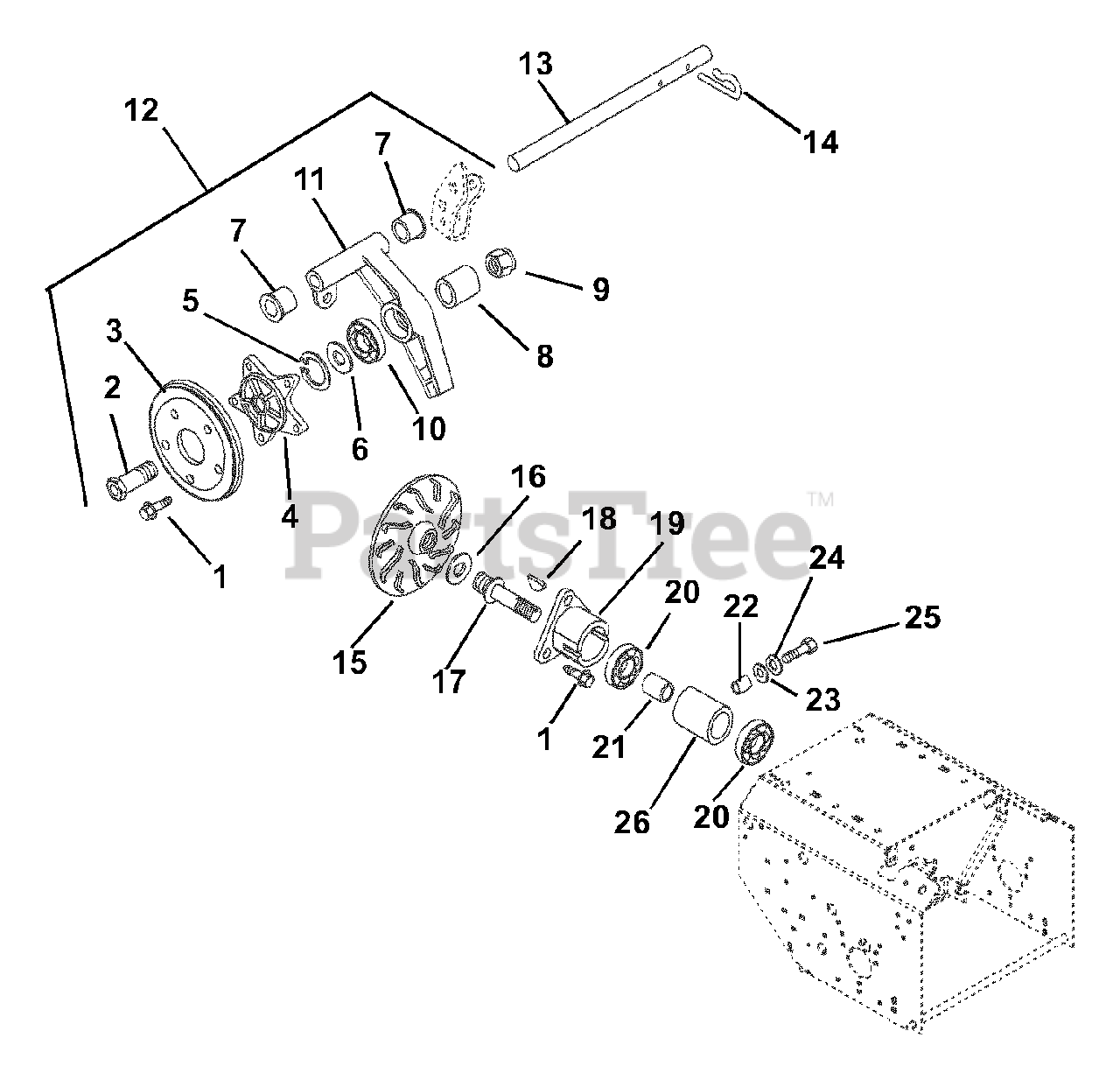

Friction Wheel Drive Parts Diagram

  • Title

1

Gravely 07411500

Screw, Tapping .31-18 x .50
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

2

Gravely 02445500

Spindle Hub

$79.99

$

Usually ships in 4-12 days

0

3

Gravely 00170800

Friction Disc
(Superseded to 09475300)

$36.99

$

In Stock, Qty 8

0

4

Gravely 02445400

Disc Hub

$24.99

$

In Stock, only 2 left!

0

5

Gravely 05702100

Ring, Retaining Internal 1.75 x .062

$6.49

$

In Stock, only 2 left!

0

6

Gravely 06436900

Washer, Flat Steel .88 x 1.25 x .062

$2.49

$

In Stock, Qty 6

0

7

Gravely 05502600

Bushing, Flange .63 x .750 x .50 x .88
(Superseded to 05500111)

$2.49

$

In Stock, Qty 20+

0

8

Gravely 05512600

Bushing, Sleeve .88 x 1.25 x .53

$6.49

$

In Stock, only 2 left!

0

9

Gravely 06530500

Nut, Locking Nylon .88-14

$7.49

$

Usually ships in 4-12 days

0

10

Gravely 05409300

Bearing, Ball .88 x 1.75 x .50

$37.99

$

In Stock, only 3 left!

0

11

Gravely 02444500

Carrier
(Superseded to 52404600)

$204.99

$

Usually ships in 4-12 days

0

12

Gravely 52404600

Friction Wheel Assembly

Note: (Contains 1-11)

$204.99

$

Usually ships in 4-12 days

0

13

Gravely 02477000

Carrier Shaft

$44.99

$

Usually ships in 4-12 days

0

14

Gravely 06714500

Pin, Spring Clip

$2.99

$

In Stock, Qty 19

0

15

Gravely 01054600

Drive Plate

$170.99

$

Usually ships in 4-12 days

0

16

Gravely 02407100

Drive Disc Spacer 1.30 x .76 x .19

$16.99

$

Usually ships in 4-12 days

0

17

Gravely 02407600

Spindle

$77.99

$

Usually ships in 4-12 days

0

18

Gravely 06611000

Key, Feather .125 x .50 x .194

$2.99

$

In Stock, only 1 left!

0

19

Gravely 02458200

Housing Mount

$95.99

$

In Stock, only 2 left!

0

20

Gravely 05435100

Bearing .63 x 1.38 x .43

$16.99

$

In Stock, Qty 20+

0

21

Gravely 02415500

Bearing Spacer

$5.49

$

In Stock, only 2 left!

0

22

Gravely 00303400

Roller

$15.99

$

In Stock, only 2 left!

0

23

Gravely 06437200

Washer, Flat Steel .34 x .69 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06307400

Washer, Lock .312 x .097
(Superseded to 06300123)

$0.99

$

In Stock, Qty 5

0

25

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

26

Gravely 02458100

Spindle Housing

$79.99

$

Usually ships in 4-12 days

0
