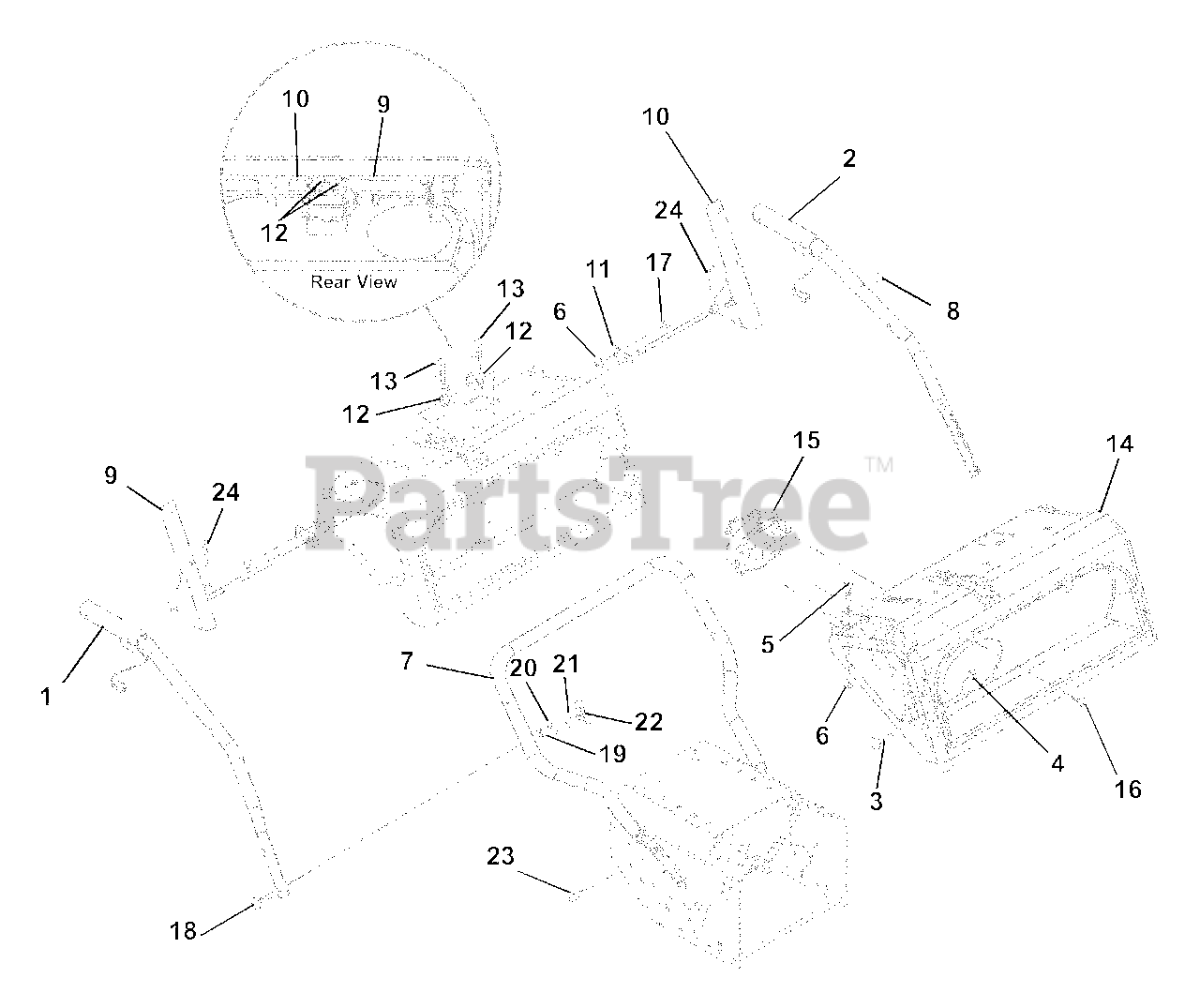

924519 - Gravely 36" Power Brush, Tecumseh (SN: 000101 & Above) Handlebars, Lever Controls, Panel And Dash Parts Diagram

36" Power Brush, Tecumseh

Handlebars, Lever Controls, Panel And Dash Parts Diagram

  • Title

1

Gravely 52415100

HANDLEBAR, UPPER RH

Note: (Includes Hand Warmer)

$

$

Not available

2

Gravely 52415200

HANDLEBAR, UPPER LH

Note: (Includes Hand Warmer)

$135.99

$

Usually ships in 4-12 days

0

3

Gravely 06220200

BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

$3.49

$

In Stock, Qty 15

0

4

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5YZ

$2.99

$

In Stock, Qty 9

0

6

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 02491851

HANDLEBAR, LOWER

$246.99

$

Usually ships in 4-12 days

0

8

Gravely 07511800

BUMPER

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 52419900

KIT, RH LEVER W/GRIP

$65.99

$

In Stock, only 2 left!

0

10

Gravely 52419800

KIT, LH LEVER W/GRIP

$79.99

$

In Stock, only 2 left!

0

11

Gravely 00184751

BRACKET, RETAINING

$24.99

$

Usually ships in 4-12 days

0

12

Gravely 02492100

CAM, INTERLOCK
(Superseded to 03888100)

$8.49

$

In Stock, only 2 left!

0

13

Gravely 06714500

PIN, SPRING CLIP

$2.99

$

In Stock, Qty 20+

0

14

Gravely 52421900

PANEL W/CONTRL DECAL-GRAVELY

$

$

Not available

15

Gravely 02485000

HEADLAMP, OVAL W/ 1156 BULB
(Superseded to 52423200)

$58.99

$

Usually ships in 4-12 days

0

16

Gravely 07416700

SCR-TAP 10-16X.75 HI-LO PPH

$0.99

$

Usually ships in 4-12 days

0

17

Gravely 06220600

BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.49

$

In Stock, Qty 11

0

18

Gravely 06221600

BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$3.49

$

In Stock, Qty 12

0

19

Gravely 06446800

WASHER,SADDLE-.320 X.937 X.062

$0.99

$

Usually ships in 4-12 days

0

20

Gravely 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 8

0

21

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

$3.99

$

In Stock, Qty 20+

0

23

Gravely 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.99

$

In Stock, only 3 left!

0

24

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0
