924519 - Gravely 36" Power Brush, Tecumseh (SN: 000101 & Above) Handlebars, Lever Controls, Panel And Dash Parts Diagram

36" Power Brush, Tecumseh

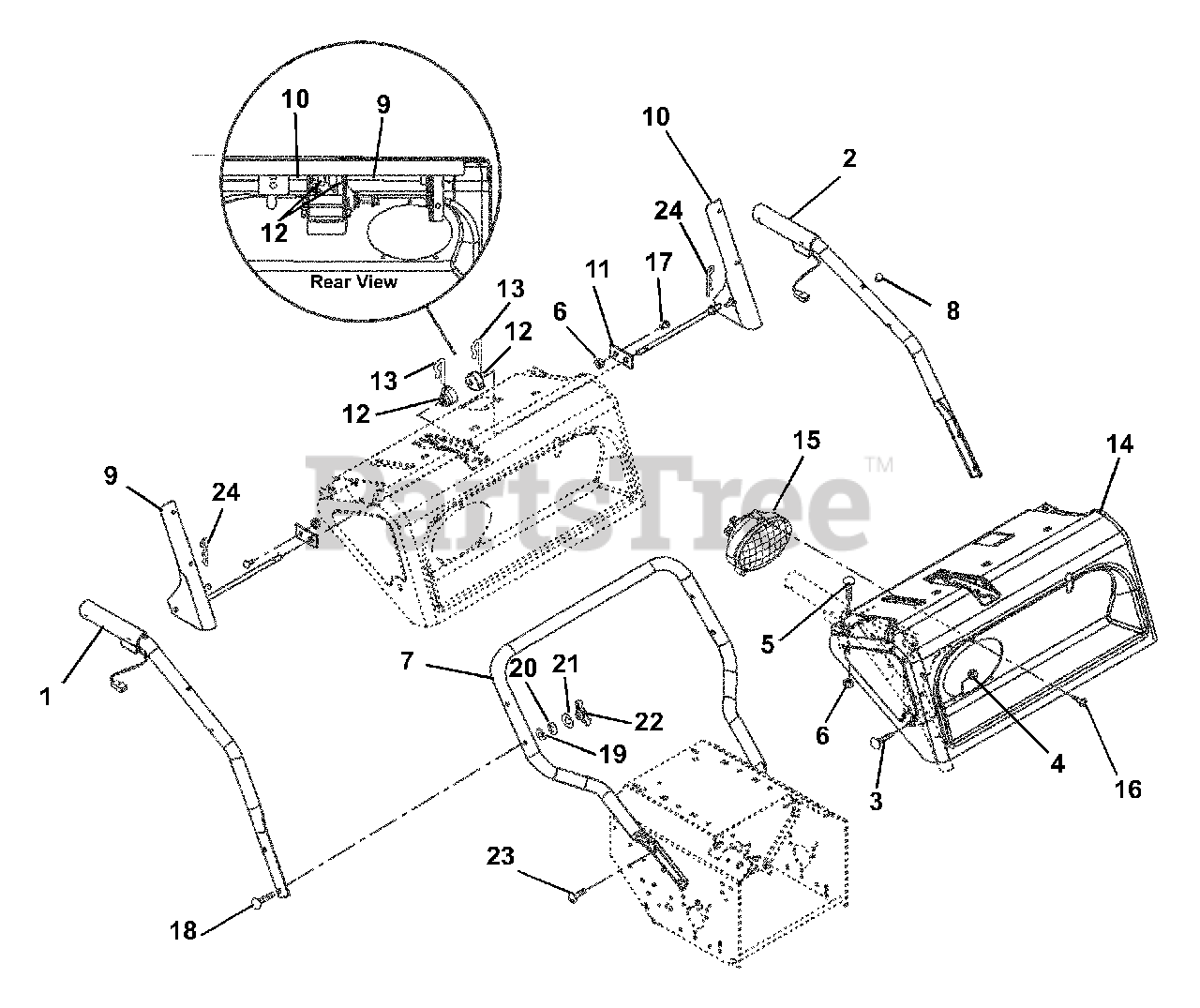

Handlebars, Lever Controls, Panel And Dash Parts Diagram

  • Title

1

Gravely 52415100

Handlebar, Upper Right Hand

Note: (Includes Hand Warmer)

$

$

Not available

2

Gravely 52415200

Handlebar, Upper Left Hand

Note: (Includes Hand Warmer)

$135.99

$

Usually ships in 4-12 days

0

3

Gravely 06220200

Bolt, Round Head Square Neck .31-18 x 1.75 Grade 5
(Superseded to 06200324)

$2.99

$

In Stock, only 3 left!

0

4

Gravely 06529800

Nut, Locking Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06220100

Bolt, Round Head Square Neck .25-20 x 1.25

$2.49

$

In Stock, only 2 left!

0

6

Gravely 06529700

Nut, Locking Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 02491851

Handlebar, Lower

$241.99

$

Usually ships in 4-12 days

0

8

Gravely 07511800

Bumper

$3.49

$

Usually ships in 4-12 days

0

9

Gravely 52419900

Kit, Right Hand Lever with Grip

$219.99

$

In Stock, Qty 20+

0

10

Gravely 52419800

Kit, Left Hand Lever with Grip

$64.99

$

In Stock, only 2 left!

0

11

Gravely 00184751

Bracket, Retaining

$23.99

$

In Stock, only 1 left!

0

12

Gravely 02492100

Cam, Interlock
(Superseded to 03888100)

$6.99

$

In Stock, Qty 11

0

13

Gravely 06714500

Pin, Spring Clip

$1.99

$

In Stock, Qty 20+

0

14

Gravely 52421900

Panel with Control Decal, Gravely 936

$

$

Not available

15

Gravely 02485000

Headlamp, Oval with 1156 Bulb
(Superseded to 52423200)

$52.99

$

Usually ships in 4-12 days

0

16

Gravely 07416700

Screw, Tapping 10-16 x .75 Hi-Lo

$0.99

$

Usually ships in 4-12 days

0

17

Gravely 06220600

Bolt, Round Head Square Short Neck .25-20 x .50
(Superseded to 06200306)

$0.99

$

In Stock, Qty 7

0

18

Gravely 06221600

Bolt, Round Head Square Neck .31-18 x 2.25
(Superseded to 06200408)

$2.99

$

Usually ships in 4-12 days

0

19

Gravely 06446800

Washer, Saddle .32 x .94 x .062

$0.99

$

Usually ships in 4-12 days

0

20

Gravely 06307400

Washer, Locking .31 x .097 Heavy
(Superseded to 06300123)

$0.99

$

In Stock, only 4 left!

0

21

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

22

Gravely 07531700

Knob, Wing .31-18
(Superseded to 07534800)

$7.99

$

In Stock, Qty 11

0

23

Gravely 07028500

Bolt, Screw Hex Flanged Whiz Lock Head .38-16 x .75
(Superseded to 07001824)

$1.49

$

In Stock, only 2 left!

0

24

Gravely 06714800

Pin-Hair #25
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0
