924519 - Gravely 36" Power Brush, Tecumseh (SN: 000101 & Above) Speed Selector And Frame Parts Diagram

36" Power Brush, Tecumseh

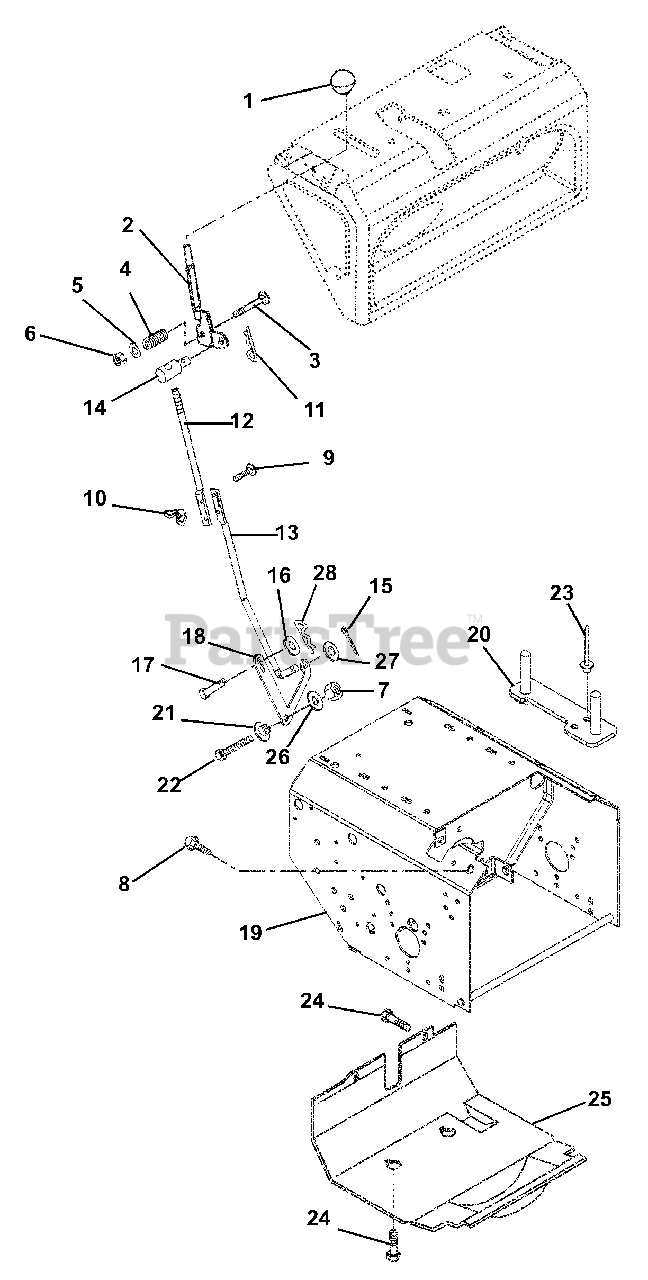

Speed Selector And Frame Parts Diagram

  • Title

1

Gravely 07533500

Knob, Ball Black 1-.41, .38-16

$10.99

$

In Stock, only 1 left!

0

2

Gravely 03247900

Lever, Shift Weldment

$92.99

$

Usually ships in 4-12 days

0

3

Gravely 06224400

Bolt, Round Head Square Neck .38-16 x 2.50 Grade 5
(Superseded to 06200234)

$4.99

$

In Stock, Qty 8

0

4

Gravely 08335700

Spring, Compression .13 x .78 x 1.25

$9.99

$

In Stock, Qty 8

0

5

Gravely 06435900

Washer, Flat Steel .44 x 1.00 x .083
(Superseded to 06401008)

$1.99

$

In Stock, Qty 19

0

6

Gravely 06529600

Nut, Locking Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06529800

Nut, Locking Center .31-18
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 07028500

Bolt, Hex Flanged Whiz Lock Head .38-16 x .75
(Superseded to 07001824)

$1.99

$

In Stock, Qty 6

0

9

Gravely 06219800

Bolt, Round Head Square Neck .25-20 x 1.00 Grade 5
(Superseded to 06200402)

$2.49

$

Usually ships in 4-12 days

0

10

Gravely 06537500

Nut, Locking Wing .25-20
(Superseded to 06500805)

$5.49

$

In Stock, only 1 left!

0

11

Gravely 06713500

Pin, Hair Internal .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 02492800

Rod, Shift-Upper

$40.99

$

Usually ships in 4-12 days

0

13

Gravely 02487700

Rod, Shift-Lower

$

$

Not available

14

Gravely 02493000

Pivot, Rod

$

$

Not available

15

Gravely 06707300

Pin, Cotter .12 x .75

$0.99

$

In Stock, only 2 left!

0

16

Gravely 06436500

Washer, Flat Steel .38 x .81 x .023

$2.49

$

In Stock, only 2 left!

0

17

Gravely 01215100

Clevis Pin .37/.38 x .69

$

$

Not available

18

Gravely 02498700

Arm, Shift

$22.99

$

Usually ships in 4-12 days

0

19

Gravely 02498553

Main Frame

$216.99

$

Usually ships in 4-12 days

0

20

Gravely 00188400

Bolt Strap

$21.99

$

Usually ships in 4-12 days

0

21

Gravely 05534600

Bushing, Flange .325 x .500 x .327 x .875

$3.99

$

Usually ships in 4-12 days

0

22

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.99

$

In Stock, Qty 6

0

23

Gravely 06813600

Rivet, Pop
(Superseded to 06800140)

$1.49

$

In Stock, only 3 left!

0

24

Gravely 07415900

Screw, Tapping .312-12 x .375 Hex Washer
(Superseded to 07411500)

$1.99

$

In Stock, Qty 20+

0

25

Gravely 02477153

Cover, Bottom

$

$

Not available

26

Gravely 06439400

Washer, Flat Steel .328 x .875 x .062

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 06441900

Washer, Flat-Steel .53 x 1.06 x .095
(Superseded to 06401015)

$1.49

$

In Stock, Qty 6

0

28

Gravely 06714800

Pin, Hair
(Superseded to 06700223)

$0.99

$

In Stock, Qty 9

0
