924519 - Gravely 36" Power Brush, Tecumseh (SN: 000101 & Above) Wheels And Axle Parts Diagram

36" Power Brush, Tecumseh

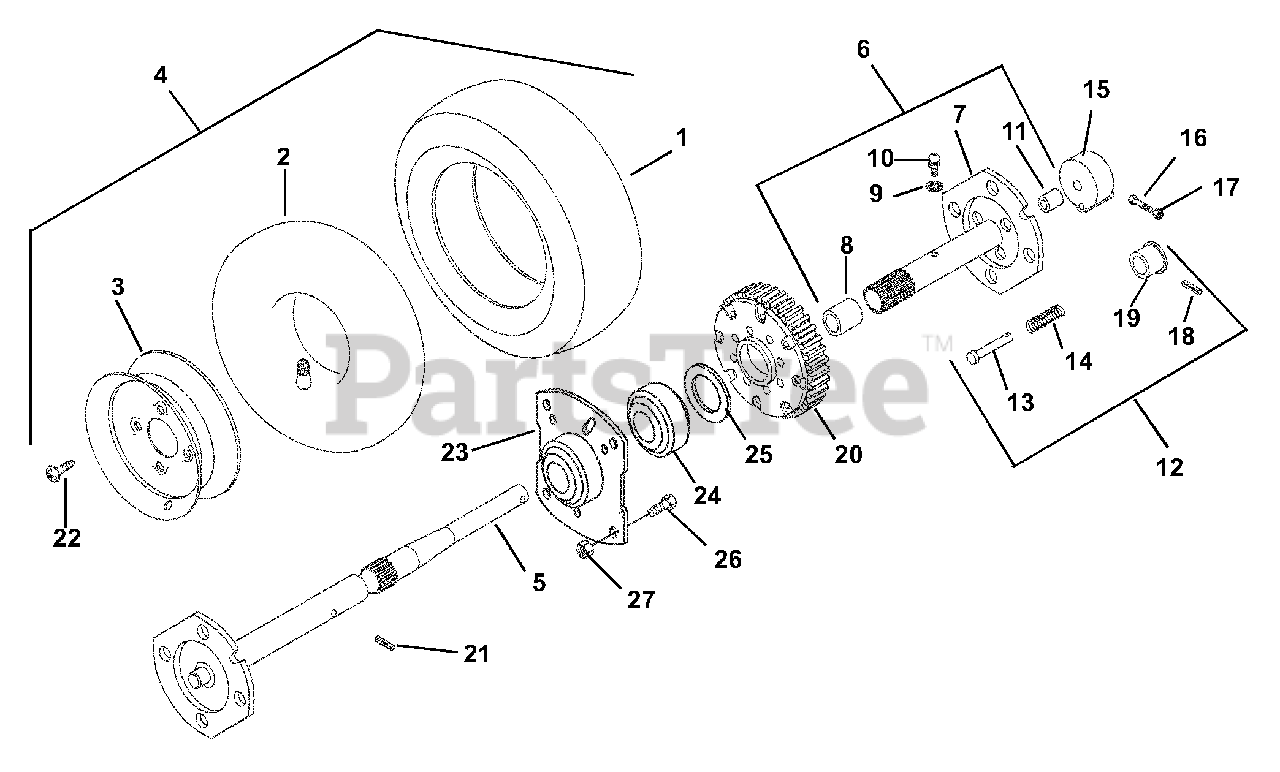

Wheels And Axle Parts Diagram

  • Title

1

Gravely 07121600

TIRE 16X6.50-8 SNO-HOG TREAD
(Superseded to 07124000)

$

$

Not available

2

Gravely 07108700

TUBE

$23.99

$

Usually ships in 4-12 days

0

3

Gravely 07100021

WHEEL, 6.50-8 SILVER

$

$

Not available

4

Gravely 07100018

T/WHL ASSY 16X6.50-8 SNO SILVR

$

$

Not available

5

Gravely 00296551

AXLE, RH

$283.99

$

Usually ships in 4-12 days

0

6

Gravely 52419700

AXLE, LH-ASSEMBLY

Note: (Contains Items 7-11)

$211.99

$

Usually ships in 4-12 days

0

7

Gravely 00296651

AXLE, LH

$131.99

$

Usually ships in 4-12 days

0

8

Gravely 05505700

BSHG-SLV .750X.814X .750 BRZ

$17.99

$

In Stock, only 4 left!

0

9

Gravely 06307000

WSHR-LK .250X.047 LT YWZC

$2.49

$

Usually ships in 4-12 days

0

10

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

11

Gravely 05502900

BSHG-SLV .562X.625X.625 BRZ

$14.99

$

In Stock, only 4 left!

0

12

Gravely 52405900

LOCKOUT HUB ASSEMBLY

Note: (Contains Items 13-15, 18, 19)

$135.99

$

In Stock, only 1 left!

0

13

Gravely 01037400

PIN

$17.99

$

In Stock, only 2 left!

0

14

Gravely 08300700

SG-COMP .028X.34X1.062 WLD75

$6.49

$

In Stock, only 2 left!

0

15

Gravely 01037200

LOCKOUT HUB

$87.99

$

Usually ships in 4-12 days

0

16

Gravely 05948100

BLT-HEX .25-20X2.0 PL GR8 YWZC

$6.99

$

In Stock, Qty 12

0

17

Gravely 06530900

NUT-JAM-NYL .250-20 W/INSERTYZ

$0.99

$

In Stock, Qty 6

0

18

Gravely 05803200

PIN-ROLL .093X1.00

$0.99

$

In Stock, Qty 10

0

19

Gravely 01037500

KNOB

$54.99

$

In Stock, only 2 left!

0

20

Gravely 52405300

DIFFERENTIAL ASSEMBLY

$610.99

$

Usually ships in 4-12 days

0

21

Gravely 05803000

PIN-ROLL .188X1.50

$1.49

$

In Stock, only 4 left!

0

22

Gravely 07416900

SCR-TAP .500-20X.62 HH YWZC
(Superseded to 07001825)

$14.99

$

Usually ships in 4-12 days

0

23

Gravely 02457853

BEARING RETAINER
(Superseded to 02457800)

$17.99

$

Usually ships in 4-12 days

0

24

Gravely 05417700

BRG-BALL 1.13X2.19X.63

$30.99

$

Usually ships in 4-12 days

0

25

Gravely 06437400

WSHR-FL-STL 1.140X1.718X.134YZ

$

$

Not available

26

Gravely 07028600

BLT-SERNK SL .25-20X.50 YWZC

$3.99

$

In Stock, only 4 left!

0

27

Gravely 06530100

NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, Qty 20+

0
