924550 (ST 824) - Ariens 24" Snow Blower, 8hp Tecumseh (SN: 000101 & Above) Wheels And Axle Parts Diagram

24" Snow Blower, 8hp Tecumseh

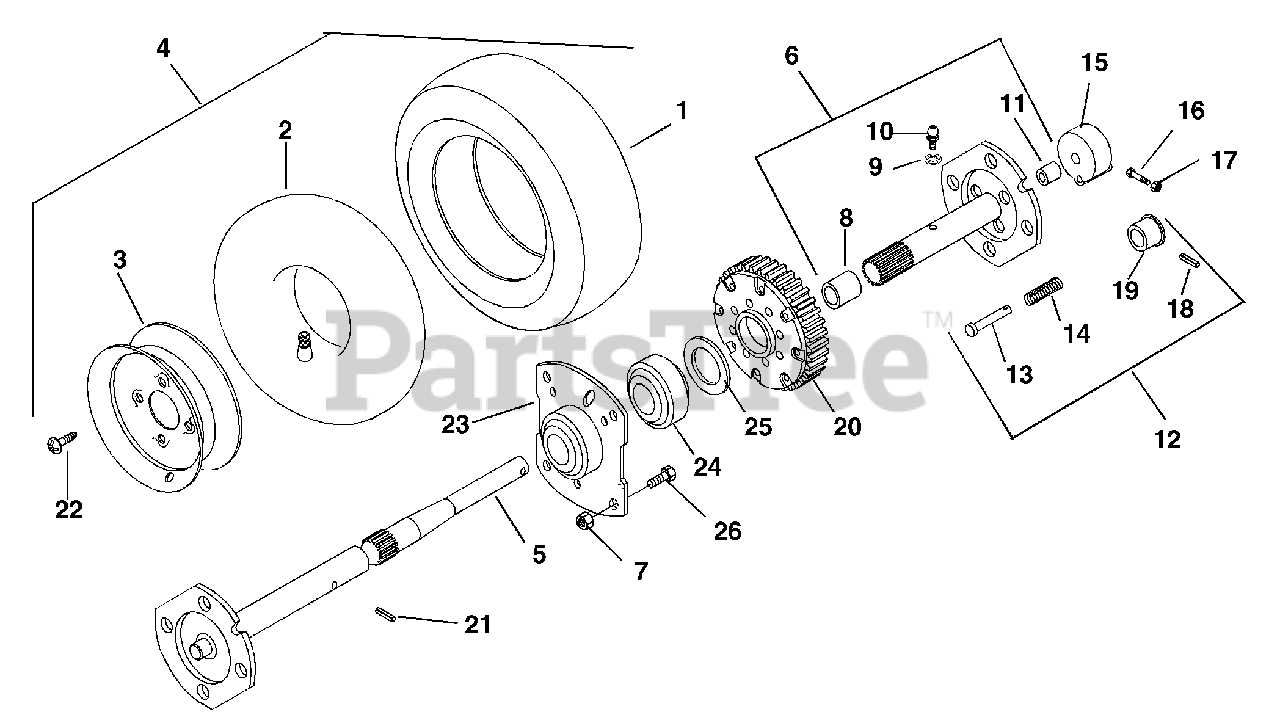

Wheels And Axle Parts Diagram

  • Title

1

Ariens 07121800

TIRE 4.80-8 NHS

$81.99

$

Usually ships in 4-12 days

0

2

Ariens 07103700

TUBE

$15.99

$

In Stock, only 2 left!

0

3

Ariens 07107600

WHL

$68.99

$

In Stock, only 1 left!

0

4

Ariens 07121900

T/WHL ASSY 4.80-8
(Superseded to 07100017)

$139.99

$

Usually ships in 4-12 days

0

5

Ariens 02475800

AXLE, RH

$345.99

$

In Stock, only 1 left!

0

6

Ariens 52405500

L.H.AXLE ASSEMBLY

Note: (Contains Items 8-11)

$202.99

$

In Stock, only 1 left!

0

7

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 05505700

BSHG-SLV .750X.814X .750 BRZ

$17.99

$

In Stock, only 2 left!

0

9

Ariens 06307000

WSHR-LK .250X.047 LT YWZC

$2.49

$

Usually ships in 4-12 days

0

10

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

11

Ariens 05502900

BSHG-SLV .562X.625X.625 BRZ

$14.99

$

In Stock, Qty 6

0

12

Ariens 52405900

LOCKOUT HUB ASSEMBLY

Note: (Contains Items 13-15,18,19)

$135.99

$

Usually ships in 4-12 days

0

13

Ariens 01037400

PIN

$17.99

$

Usually ships in 4-12 days

0

14

Ariens 08300700

SG-COMP .028X.34X1.062 WLD75

$6.49

$

Usually ships in 4-12 days

0

15

Ariens 01037200

LOCKOUT HUB

$87.99

$

Usually ships in 4-12 days

0

16

Ariens 05948100

BLT-HEX .25-20X2.0 PL GR8 YWZC

$6.99

$

In Stock, only 1 left!

0

17

Ariens 06530900

NUT-JAM-NYL .250-20 W/INSERTYZ

$0.99

$

In Stock, Qty 6

0

18

Ariens 05803200

PIN-ROLL .093X1.00

$0.99

$

Usually ships in 4-12 days

0

19

Ariens 01037500

KNOB

$54.99

$

Usually ships in 4-12 days

0

20

Ariens 52405300

DIFFERENTIAL ASSEMBLY

$610.99

$

Usually ships in 4-12 days

0

21

Ariens 05803000

PIN-ROLL .188X1.50

$1.49

$

In Stock, only 2 left!

0

22

Ariens 07416900

SCR-TAP .500-20X.62 HH YWZC
(Superseded to 07001825)

$14.99

$

In Stock, only 3 left!

0

23

Ariens 02457859

BEARING RETAINER

$

$

Not available

24

Ariens 05417700

BRG-BALL 1.13X2.19X.63

$30.99

$

In Stock, only 2 left!

0

25

Ariens 06437400

WSHR-FL-STL 1.140X1.718X.134YZ

$

$

Not available

26

Ariens 07028600

BLT-SERNK SL .25-20X.50 YWZC

$3.99

$

In Stock, Qty 6

0
