924I (1695313) - Snapper 24" Snow Thrower, 9hp (2008) Decals Group Parts Diagram

24" Snow Thrower, 9hp

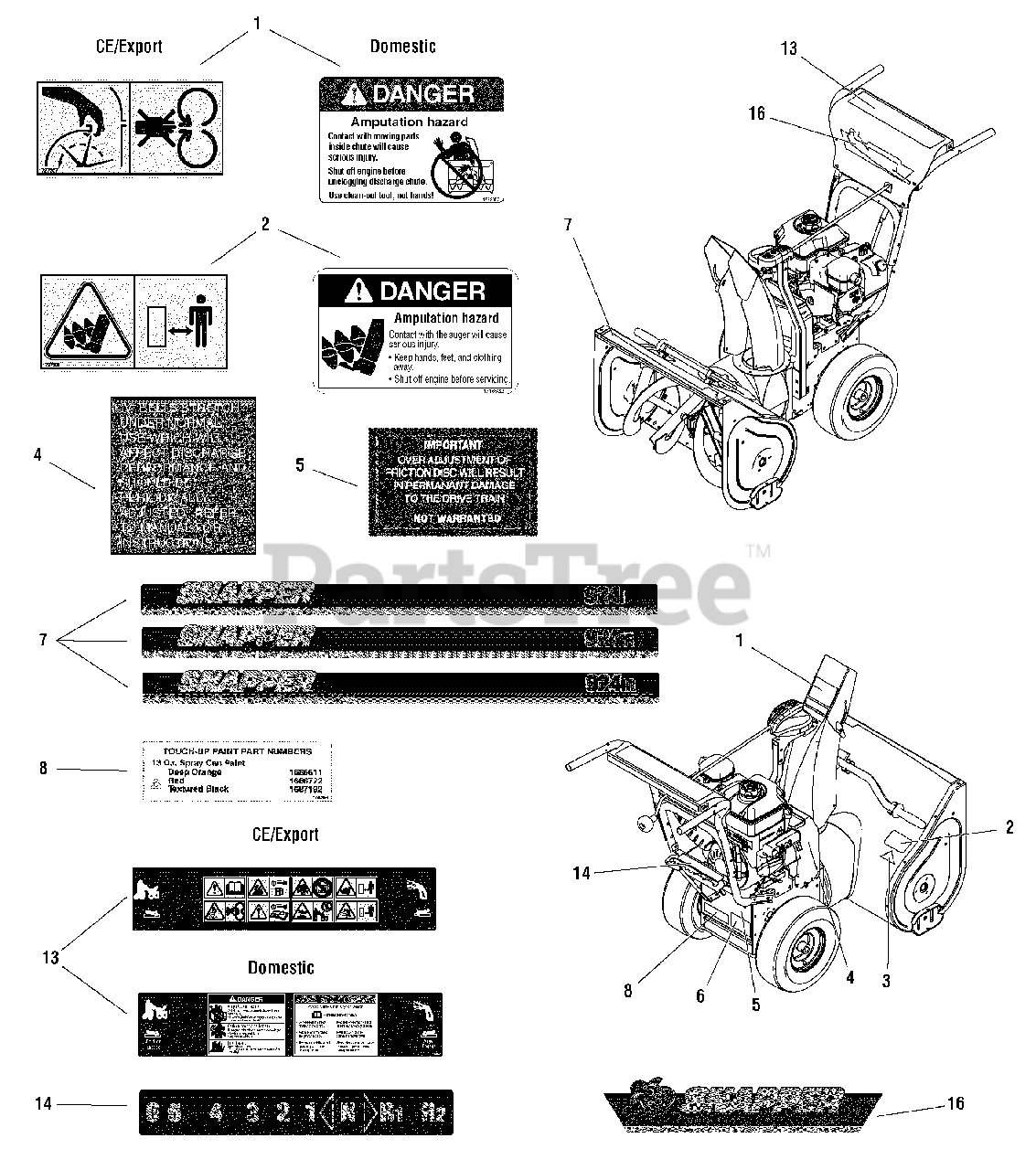

Decals Group Parts Diagram

  • Title

1

Snapper 1727207

DECAL, Chute Warning
(Superseded to 1727207SM)

Note: (CE/Export)

$18.99

$

Usually ships in 2-12 days

0

1

Snapper 1733057

DECAL, Danger Amputation Hazard
(Superseded to 1733057SM)

$7.99

$

Usually ships in 2-12 days

0

2

Snapper 1727208

DECAL, Impeller Warning
(Superseded to 1727208SM)

Note: (CE/Export)

$18.99

$

Usually ships in 2-12 days

0

2

Snapper 1716532

DECAL, Danger Avoid Injury, Auger
(Superseded to 1716532SM)

$12.99

$

Usually ships in 2-12 days

0

3

*DECAL, OPEI

$

$

Not available

4

Snapper 725432

DECAL, Belt Stretch and Adjustment
(Superseded to 7390MA)

Note: (Domestic Models Only)

$23.99

$

Usually ships in 2-12 days

0

5

Snapper 728183

DECAL, Over Adjust of Friction Disc
(Superseded to 7859MA)

Note: (Domestic Models Only)

$11.99

$

Usually ships in 2-12 days

0

6

*STICKER, Serial w/Bar Code

$

$

Not available

7

Snapper 1735121

DECAL, Snapper 924IE

Note: (CE/Export)

$

$

Currently unavailable

7

Snapper 1735122

DECAL, Snapper 924IR

Note: (CE/Export)

$

$

Currently unavailable

7

Snapper 1737272

DECAL, Snapper 924I

Note: (was 1734584)

$

$

Currently unavailable

8

Snapper 1720454

DECAL, Touch Up Paint
(Superseded to 1720454SM)

$13.99

$

In Stock, only 1 left!

0

13

Snapper 1734591

DECAL, Dash
(Superseded to 1734591SM)

Note: (CE/Export)

$8.49

$

Usually ships in 2-12 days

0

13

Snapper 1734499

DECAL, Dash
(Superseded to 1734499SM)

$7.99

$

Usually ships in 2-12 days

0

14

Snapper 1735229

DECAL, Speed Control
(Superseded to 1735229SM)

$9.99

$

Usually ships in 2-12 days

0

16

Snapper 1737271

DECAL, Snapper w/Icon

Note: (was 1735114)

$

$

Currently unavailable
