924I (1695313) - Snapper 24" Snow Thrower, 9hp (2008) Handles & Controls Group Parts Diagram

24" Snow Thrower, 9hp

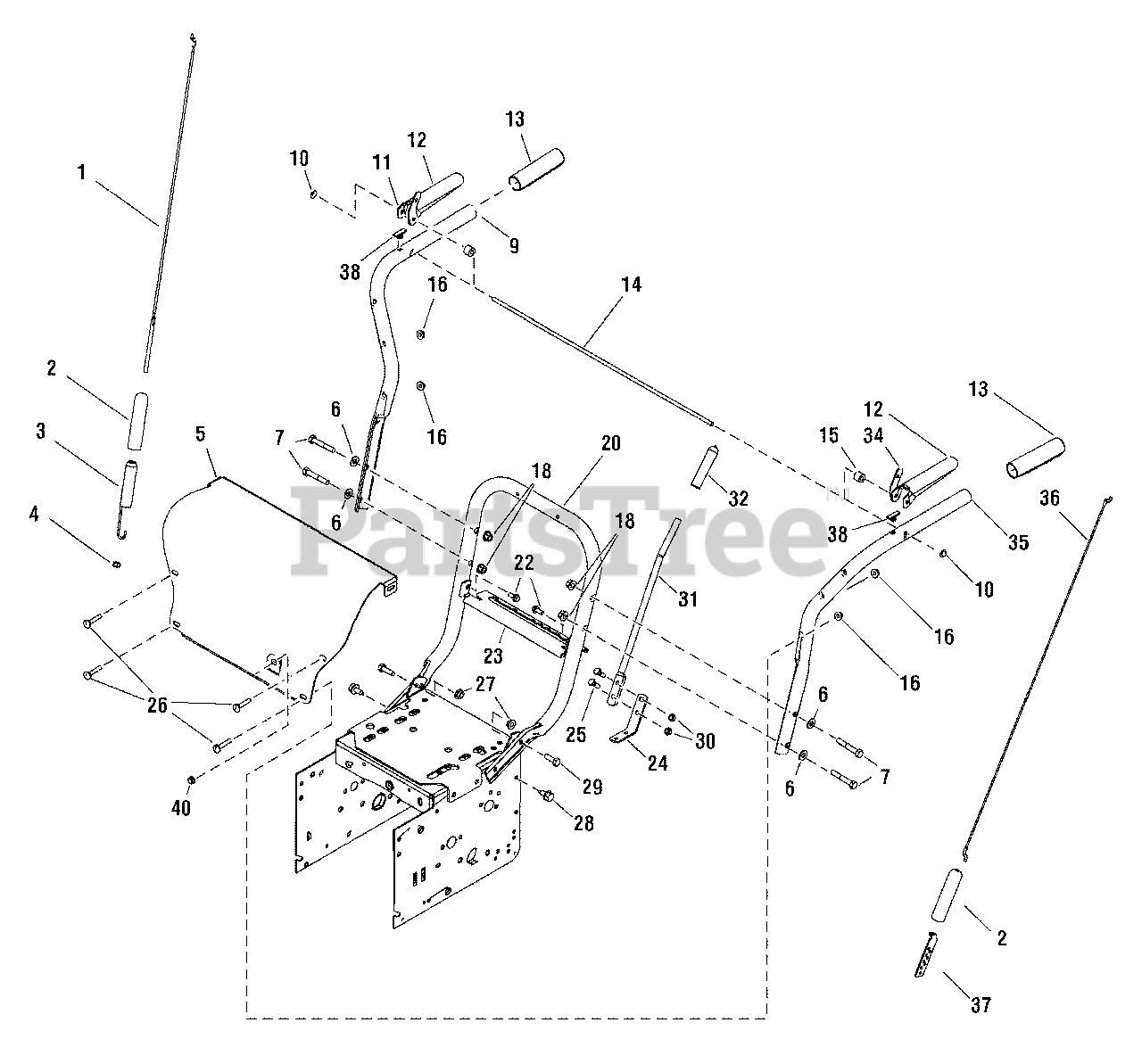

Handles & Controls Group Parts Diagram

  • Title

1

Snapper 725684

CABLE, Auger
(Superseded to 761872MA)

$15.99

$

In Stock, only 1 left!

0

2

Snapper 723154

BOOT, Spring End Cover
(Superseded to 308146MA)

$6.49

$

In Stock, only 1 left!

0

3

Snapper 722520

SPRING, Auger Control
(Superseded to 1673MA)

$8.99

$

In Stock, Qty 19

0

4

Snapper 1920397

NUT, Hex Lock Esna Light 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

5

Snapper 1734250D

PANEL, Dash Upper
(Superseded to 1734250DSM)

$104.99

$

Usually ships in 2-12 days

0

6

Snapper 1919326

WASHER, 5/16
(Superseded to 703332)

$4.49

$

In Stock, Qty 17

0

7

Snapper 1921978

CAPSCREW, Hex Head 5/16-18 x 2 G5
(Superseded to 703867)

$4.99

$

In Stock, Qty 6

0

9

Snapper 1740573A

HANDLE, Upper
(Superseded to 1740573ASM)

$58.99

$

Usually ships in 2-12 days

0

10

Snapper 1960126

NUT, Push Pal 1/4 Diameter Stud Capped
(Superseded to 704066)

$4.99

$

In Stock, Qty 14

0

11

Snapper 723725A

LEVER ASSEMBLY, Clutch R.H.
(Superseded to 1740700AYP)

$39.99

$

Usually ships in 2-12 days

0

12

Snapper 723705

GRIP, Control Lever
(Superseded to 337380MA)

$8.49

$

In Stock, only 2 left!

0

13

Snapper 723707

GRIP, Handle
(Superseded to 337399MA)

$5.49

$

Usually ships in 2-12 days

0

14

Snapper 1734522

ROD, 1/4 Diamter 21.81 Large
(Superseded to 1734522SM)

$11.99

$

Usually ships in 2-12 days

0

15

Snapper 1734396

SPACER
(Superseded to 1734396SM)

$3.99

$

Usually ships in 2-12 days

0

16

Snapper 1960694

NUT, Hex Flange 1/4-20 Esna
(Superseded to 703463)

$4.49

$

In Stock, Qty 5

0

18

Snapper 1960686

NUT, Hex Flange 5/16-18 Esna
(Superseded to 703115)

$3.49

$

In Stock, Qty 17

0

20

Snapper 1740701A

HANDLE, Lower
(Superseded to 1740701ASM)

$140.99

$

Usually ships in 2-12 days

0

22

Snapper 1927429

SCREW, Hex Washer Head Taptite 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, only 1 left!

0

23

Snapper 1740698A

BRACKET, Gear Select
(Superseded to 1740698ASM)

$19.99

$

Usually ships in 2-12 days

0

24

Snapper 725568

LEVER, Spring Shift
(Superseded to 760564MA)

$9.99

$

Usually ships in 2-12 days

0

25

Snapper 1923341

CAPSCREW, Hex Head 1/4-20 x 3/4 G5
(Superseded to 1923341SM)

$4.49

$

In Stock, Qty 8

0

26

Snapper 1960633

CARRIAGE BOLT, 1/4-20 x 1-1/2 G5
(Superseded to 704214)

$3.99

$

Usually ships in 2-12 days

0

27

Snapper 1935048

NUT, Hex Flange 5/16-18 Two-Way Lock
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

28

Snapper 1664847

SCREW, Hex Washer Head Taptite 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

29

Snapper 1921333

CAPSCREW, Hex Head 5/16-18 x 1 G5
(Superseded to 703585)

$4.99

$

In Stock, only 3 left!

0

30

Snapper 1923358

NUT, Hex Centerlock 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

31

Snapper 723688A

ROD, Shift No Thread
(Superseded to 723688AYP)

$7.49

$

Usually ships in 2-12 days

0

32

Snapper 723604

GRIP, Ball End
(Superseded to 331624MA)

$5.99

$

In Stock, only 1 left!

0

34

Snapper 723723A

LEVER ASSEMBLY, Clutch L.H.
(Superseded to 723723AYP)

$16.99

$

Usually ships in 2-12 days

0

35

Snapper 1740587A

HANDLE, Upper L.H.
(Superseded to 1740587ASM)

$76.99

$

Usually ships in 2-12 days

0

36

Snapper 722096

CABLE, Front Drive
(Superseded to 1501123MA)

$12.99

$

In Stock, Qty 9

0

37

Snapper 723259

BRACKET, Cable Adjusting
(Superseded to 313441MA)

$

$

Not available

38

Snapper 723949

BUMPER
(Superseded to 4049MA)

$

$

Not available

40

Snapper 1667588

BUSHING
(Superseded to 1667588SM)

$5.99

$

In Stock, Qty 15

0
