924I (1695313) - Snapper 24" Snow Thrower, 9hp (2008) Traction Drive Group Parts Diagram

24" Snow Thrower, 9hp

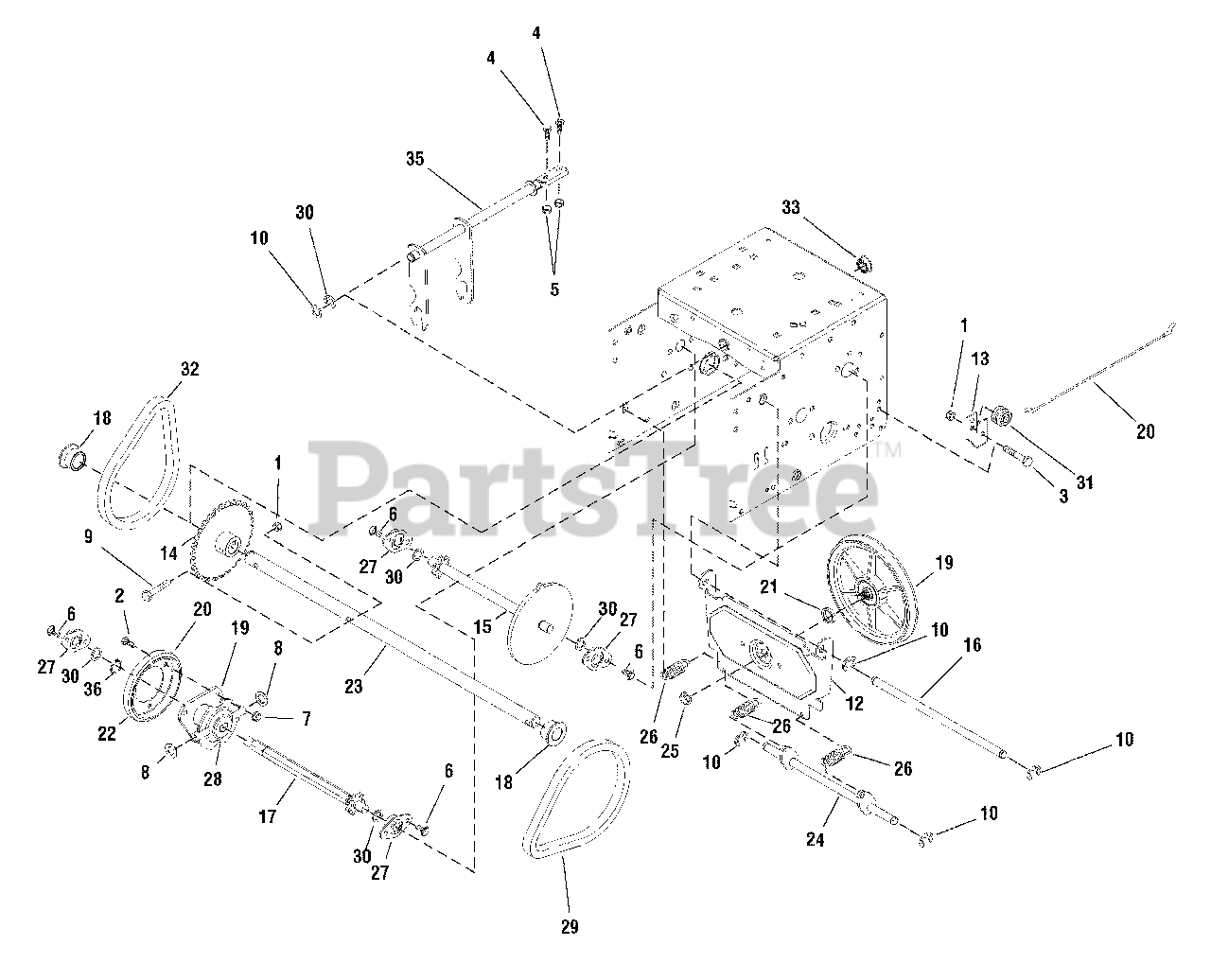

Traction Drive Group Parts Diagram

  • Title

1

Snapper 1920397

NUT, Hex Lock Esna Light 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

2

Snapper 1921959

CAPSCREW, Hex Head 1/4-20 x 5/8 G5
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 20+

0

3

Snapper 1922837

CAPSCREW, Hex Head 1/4-20 x 1-1/2 G5
(Superseded to 703234)

$4.49

$

In Stock, only 3 left!

0

4

Snapper 1923341

CAPSCREW, Hex Head 1/4-20 x 3/4 G5
(Superseded to 1923341SM)

$4.49

$

In Stock, Qty 8

0

5

Snapper 1923358

NUT, Hex Centerlock 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

6

Snapper 1924856

SCREW, Hex Washer Head Taptite 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, Qty 15

0

7

Snapper 1928372

NUT, Hex Keps 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 18

0

8

Snapper 80003590

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

9

Snapper 720220

BOLT, Hex 1/4-20 x 1-3/4 G8
(Superseded to 704212)

$5.49

$

In Stock, Qty 11

0

10

Snapper 721910

RETAINER, Ring 7/16
(Superseded to 11X30MA)

$4.49

$

In Stock, only 2 left!

0

12

Snapper 722069

PLATE, Swinging
(Superseded to 1501057YZMA)

$37.99

$

In Stock, only 1 left!

0

13

Snapper 722070

BRACKET, Cable Spool
(Superseded to 1501059YZMA)

$3.49

$

In Stock, only 1 left!

0

14

Snapper 722080

WELD, Axle Sprocket
(Superseded to 1501089MA)

$42.99

$

In Stock, only 1 left!

0

15

Snapper 722081

SPROCKET, Set
(Superseded to 1501237MA)

$80.99

$

In Stock, only 1 left!

0

16

Snapper 722082

AXLE, Swing Plate
(Superseded to 703328)

$21.99

$

In Stock, only 1 left!

0

17

Snapper 722083

HEX SHAFT & SPROCKET ASSEMBLY
(Superseded to 1501100MA)

$

$

Not available

18

Snapper 722091

BEARING, Axle D-Hole
(Superseded to 1501114MA)

$11.99

$

In Stock, only 4 left!

0

19

Snapper 722092

FRICTION PULLEY ASSEMBLY
(Superseded to 1501115MA)

$

$

Not available

20

Snapper 722095

CABLE, Front Drive
(Superseded to 1501122MA)

$8.49

$

In Stock, Qty 20+

0

21

Snapper 722110

SPACER, Friction Pulley
(Superseded to 1501158MA)

$4.99

$

In Stock, only 2 left!

0

22

Snapper 722185

WHEEL, Friction
(Superseded to 1501435MA)

$27.99

$

In Stock, Qty 20+

0

23

Snapper 722209

AXLE
(Superseded to 1501562YZMA)

$59.99

$

Usually ships in 2-12 days

0

24

Snapper 722377

WELD, Spring Link
(Superseded to 1502105YZMA)

$33.99

$

Usually ships in 2-12 days

0

25

Snapper 722391

NUT, 38-24 FlangeLock
(Superseded to 15X114MA)

$4.49

$

Usually ships in 2-12 days

0

26

Snapper 722423

SPRING, Extension
(Superseded to 1736469YP)

$6.99

$

In Stock, Qty 6

0

27

Snapper 723655

RETAINER & BUSHING ASSEMBLY
(Superseded to 334163MA)

$11.99

$

In Stock, Qty 20+

0

28

Snapper 723694

HUB, Friction Wheel & Bearing
(Superseded to 1739282YP)

$39.99

$

In Stock, Qty 6

0

29

Snapper 724613

CHAIN, Roller
(Superseded to 579851MA)

$21.99

$

In Stock, only 1 left!

0

30

Snapper 724619

WASHER, Flat
(Superseded to 579858MA)

$4.49

$

In Stock, only 2 left!

0

31

Snapper 724621

SPOOL CABLE, Auger Control
(Superseded to 579860MA)

$5.99

$

In Stock, Qty 10

0

32

Snapper 724627

CHAIN, Roller
(Superseded to 579868MA)

$20.99

$

In Stock, only 1 left!

0

33

Snapper 724636

BEARING, Flange 1/2 x 7/8
(Superseded to 579944MA)

$15.99

$

In Stock, only 2 left!

0

35

Snapper 722078

WELD, Speed Select
(Superseded to 1501085YZMA)

$40.99

$

Usually ships in 2-12 days

0

36

Snapper 1733326

RING, Retaining Extension
(Superseded to 1733326SM)

$4.49

$

In Stock, only 1 left!

0
