925009 - Ariens Emperor 38" Rear-Engine Rider, 8hp Tecumseh (SN: 000501 - 001824) Drive Assembly Parts Diagram

Emperor 38" Rear-Engine Rider, 8hp Tecumseh

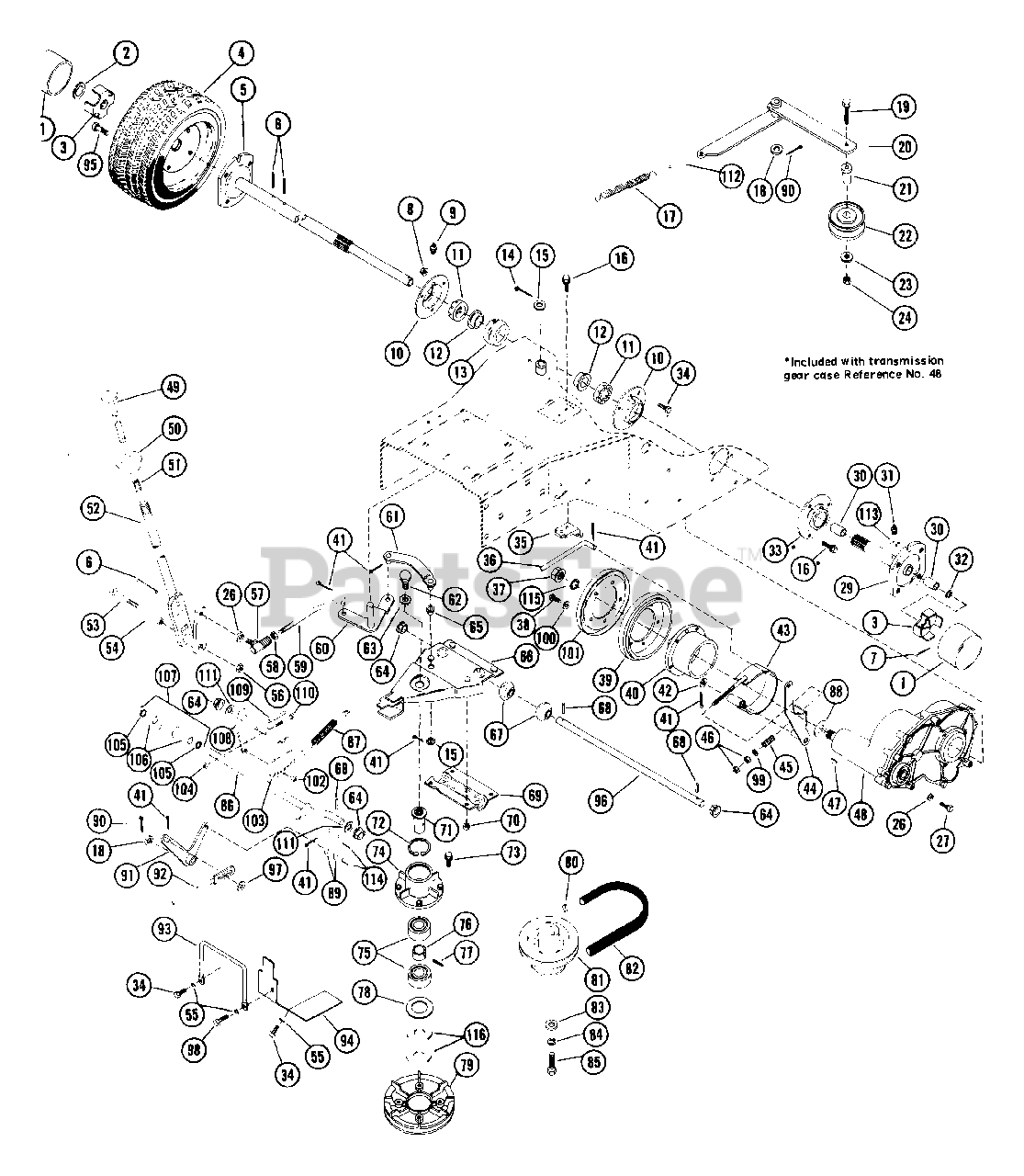

Drive Assembly Parts Diagram

  • Title

1

Ariens 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

2

Ariens 01036600

PUSHNUT

$6.49

$

Usually ships in 4-12 days

0

3

Ariens 00337600

SPINDLE CUP
(Superseded to 01238200)

$15.99

$

Usually ships in 4-12 days

0

4

Ariens 60394800

TERRA TIRE & WHEEL ASSEMBLY
(Superseded to 07115200)

$

$

Not available

Ariens 07120100

WHEEL
(Superseded to 51116000)

$75.99

$

In Stock, Qty 5

0

Ariens 07107700

WHL

$83.99

$

Usually ships in 4-12 days

0

Ariens 07108700

TUBE

$36.99

$

Usually ships in 4-12 days

0

5

Ariens 02504500

R H AXLE SHAFT

$

$

Not available

6

Ariens 05803000

PIN-ROLL .188X1.50

$1.49

$

In Stock, only 2 left!

0

7

Ariens 06701400

PIN-COTR .12 X 1.25 PL
(Superseded to 06712600)

$0.99

$

In Stock, Qty 12

0

8

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 01215200

ZERK FITTING

$

$

Not available

10

Ariens 02511000

BEARING FLANGE

$

$

Not available

11

Ariens 02504600

ADJUSTMENT SPACER

$

$

Not available

12

Ariens 05505600

BSHG-FLG 1.125X1.31X.50X1.62BR

$

$

Not available

13

Ariens 02511800

SPHERICAL BUSHING

$

$

Not available

14

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

15

Ariens 06405600

WSHR-FL-STL .505X.880X.072 PL
(Superseded to 06436600)

$3.99

$

In Stock, Qty 20+

0

16

Ariens 07002200

BLT-SCRHFWH .25-20X.62 PL

$

$

Not available

17

Ariens 08310800

SG-TENS 4.75 FREE LENGTH
(Superseded to 52502300)

$

$

Not available

18

Ariens 06405800

WSHR-FL-STL .505X1.000X.062
(Superseded to 06439200)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 05906900

BLT-HEX .31-18X1.25 PL GR2
(Superseded to 05947500)

$2.99

$

In Stock, Qty 6

0

20

Ariens 02523800

ARM

$5.99

$

Usually ships in 4-12 days

0

21

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.99

$

In Stock, Qty 12

0

22

Ariens 01213200

IDLER
(Superseded to 52007000)

$40.99

$

In Stock, only 2 left!

0

23

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.99

$

In Stock, Qty 20+

0

24

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.99

$

In Stock, Qty 20+

0

26

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 5

0

27

Ariens 05904500

BLT-HEX .31-18X1.50 PL GR2
(Superseded to 05952400)

$1.99

$

In Stock, Qty 6

0

29

Ariens 62501000

L H AXLE ASSEMBLY
(Superseded to 52503800)

Note: (Includes bushings,"O" rings, and zerk fitting)

$

$

Not available

30

Ariens 05505700

BSHG-SLV .750X.814X .750 BRZ

$17.99

$

In Stock, only 2 left!

0

31

Ariens 02209300

SPIN DRIVE ZERK FITTING
(Superseded to 07012600)

$

$

Not available

32

Ariens 05605800

O-RING .755X.950X.097

$

$

Not available

33

Ariens 05607100

SEAL 1.125X2.496X.380

$38.99

$

Usually ships in 4-12 days

0

34

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, only 3 left!

0

35

Ariens 02511900

NEUTRAL STOP
(Superseded to 02533200)

$

$

Not available

36

Ariens 02516500

BRAKE ROD

$

$

Not available

37

Ariens 06507700

NUT-LK-NYL.625-18 PL
(Superseded to 06530300)

$4.99

$

In Stock, Qty 12

0

38

Ariens 05903900

BLT-HEX .31-18X.50 PL GR2
(Superseded to 05947200)

$1.99

$

In Stock, Qty 13

0

39

Ariens 00300300

FRICTION DISC
(Superseded to 09475300)

$36.99

$

In Stock, only 1 left!

0

40

Ariens 02503400

FRICTION DISC HUB

$

$

Not available

41

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

42

Ariens 06407800

WSHR-FL-STL .380X.626X.033

$

$

Not available

43

Ariens 02503300

BRAKE BAND

$

$

Not available

44

Ariens 02503200

BRAKE LEVER

$

$

Not available

45

Ariens 08309000

SG-COMP .105X.585X.75

$

$

Not available

46

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$1.49

$

In Stock, Qty 9

0

47

Ariens 06600100

KEY-WDRF .188X.875X.375 SAE11

$3.49

$

In Stock, Qty 9

0

48

Ariens 52501100

GEAR CASE ASSEMBLY

$

$

Not available

49

Ariens 02505000

SHIFT CONTROL ROD

$

$

Not available

50

Ariens 01024800

SHIFT BALL

$

$

Not available

51

Ariens 08301500

SG-COMP ??X.44X?? WLD 10

$

$

Not available

52

Ariens 02504900

SHIFT LEVER

$

$

Not available

53

Ariens 05903500

BLT-HEX .38-16X2.50 PL GR2
(Superseded to 05958400)

$2.99

$

In Stock, Qty 20+

0

54

Ariens 02511700

SHIFT SPACER

$

$

Not available

55

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$0.99

$

Usually ships in 4-12 days

0

56

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

57

Ariens 00306000

SNAP IN BALL JOINT

$

$

Not available

58

Ariens 06503100

NUT-HEX .312-24 PL
(Superseded to 06529500)

$2.49

$

Usually ships in 4-12 days

0

59

Ariens 02503000

SHIFT ROD

$

$

Not available

60

Ariens 02502900

SHIFT LEVER

$

$

Not available

61

Ariens 02502300

SHIFT LINK

$

$

Not available

62

Ariens 02502400

SPINDLE STUD

$

$

Not available

63

Ariens 06302000

WSHR-LK-EXT .500X.040 MED

Note: (Special)

$

$

Not available

64

Ariens 01212900

FLANGE BUSHING

$

$

Not available

65

Ariens 05503600

BSHG-FLG .372X.500X.312X.625NY

$2.49

$

In Stock, Qty 20+

0

66

Ariens 02524500

MTG PLATE

$

$

Not available

67

Ariens 02502500

BEARING

$20.99

$

Usually ships in 4-12 days

0

68

Ariens 05802100

PIN-ROLL .188X1.13

$2.49

$

Usually ships in 4-12 days

0

69

Ariens 02502600

BEARING RETAINER

$

$

Not available

70

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

71

Ariens 02502000

SPINDLE

$

$

Not available

72

Ariens 60298200

SNAP RING KIT
(Superseded to 05702100)

Note: (use as required)

$6.49

$

In Stock, only 2 left!

0

73

Ariens 07001200

BLT-SERHFWH .25-20X.75 PL
(Superseded to 07049400)

$2.99

$

Usually ships in 4-12 days

0

74

Ariens 02501900

SPINDLE HOUSING

$

$

Not available

75

Ariens 05407300

BRG-BALL .751X1.78X.61
(Superseded to 05412000)

$15.99

$

In Stock, Qty 20+

0

76

Ariens 02502100

SPACER .753X1.000X.457

$

$

Not available

77

Ariens 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

$2.99

$

In Stock, only 2 left!

0

78

Ariens 06407200

WSHR-FL-STL 1.375X2.125X.075

$

$

Not available

79

Ariens 02528400

DISC

$

$

Not available

80

Ariens 06602100

KEY-STR .25X2.0X.25

$5.49

$

Usually ships in 4-12 days

0

81

Ariens 02523700

SHEAVE
(Superseded to 02528500)

$

$

Not available

82

Ariens 07206500

V-BELT, SAE 380-RAW EDGE

$28.99

$

Usually ships in 4-12 days

0

83

Ariens 06402800

WSHR-FL-STL .438X1.125X.19

Note: (Used Only On Model(s): 006,009,012).

$

$

Not available

Ariens 06408300

WSHR-FL-STL .505X1.140X.250

Note: (Used Only On Model(s): 011).

$7.49

$

Usually ships in 4-12 days

0

84

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

Note: (Used Only On Model(s): 006,009,012).

$4.99

$

In Stock, Qty 17

0

Ariens 06300500

WSHR-LK .438X.133 HVY
(Superseded to 06310700)

Note: (Used Only On Model(s): 011).

$3.49

$

Usually ships in 4-12 days

0

85

Ariens 05901700

BLT-HEX .38-24X1.25 BLKO GR5

Note: (Used Only On Model(s): 006,009,012).

$

$

Not available

Ariens 05910300

BLT-HEX .44-20X1.25 GR5

Note: (Used Only On Model(s): 011).

$

$

Not available

86

Ariens 02524100

SHAFT

$

$

Not available

87

Ariens 08310000

SG-COMP .062X.438X6.625
(Superseded to 52502300)

$

$

Not available

88

Ariens 06408900

WSHR-FL-STL .627X.990X.032

$

$

Not available

89

Ariens 02529900

LINK PLATE

$

$

Not available

90

Ariens 06700200

PIN-COTR .09X1.0 PL

$0.99

$

Usually ships in 4-12 days

0

91

Ariens 02503800

CLUTCH LEVER

$

$

Not available

92

Ariens 02507900

CLUTCH ROD

$

$

Not available

93

Ariens 02505300

BELT GUIDE

$

$

Not available

94

Ariens 02503500

SPLASH GUARD

$

$

Not available

95

Ariens 07003200

BLT-WHL .50-20X.75 GR5 PL
(Superseded to 07416900)

$14.99

$

In Stock, only 3 left!

0

96

Ariens 02502700

HINGE SHAFT

$

$

Not available

97

Ariens 06405200

WSHR-FL-STL .382X.812X.023 PL
(Superseded to 06436500)

$2.49

$

In Stock, only 2 left!

0

98

Ariens 05900100

BLT-HEX .25-20X.75 PL GR2
(Superseded to 05946800)

$1.49

$

In Stock, Qty 12

0

99

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

Usually ships in 4-12 days

0

100

Ariens 06301800

WSHR-LK-INT .313X.030 PL
(Superseded to 06310500)

Note: (Special)

$0.99

$

In Stock, only 1 left!

0

101

Ariens 02520600

GUARD

$

$

Not available

102

Ariens 06509100

NUT-KEPS 8-32

$

$

Not available

103

Ariens 02527700

STOP ADJUSTMENT

$

$

Not available

104

Ariens 06507000

NUT-LK TOP .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

105

Ariens 05603400

SEAL .625X.875X.125

$10.99

$

Usually ships in 4-12 days

0

106

Ariens 05504700

BSHG-SLV .625X.750X.500 BR

$11.99

$

In Stock, Qty 10

0

107

Ariens 52500900

ROLLER ASSEMBLY

$

$

Not available

108

Ariens 02527800

SHAFT

$

$

Not available

109

Ariens 05804000

PIN-GRV .250X1.25 TP A

$

$

Not available

110

Ariens 05907900

BLT-HEX .25-20X1.50

$

$

Not available

111

Ariens 06403900

WSHR-FL-STL .630X1.005X.062 PL
(Superseded to 06436100)

$0.99

$

In Stock, Qty 12

0

112

Ariens 02529600

SPRING HOOK

$

$

Not available

113

Ariens 06302500

WSHR-LK .250X.047 LT PL
(Superseded to 06307000)

$2.49

$

Usually ships in 4-12 days

0

114

Ariens 02530100

CLEVIS PIN

$

$

Not available

115

Ariens 06301900

WSHR-LK-INT .625X.045 PL
(Superseded to 06306900)

$4.99

$

Usually ships in 4-12 days

0

116

Ariens 06413700

WSHR-FL-STL 2.125X1.375X.005

$

$

Not available
