925009 - Ariens Emperor 38" Rear-Engine Rider, 8hp Tecumseh (SN: 000501 - 001824) Electrical System Parts Diagram

Emperor 38" Rear-Engine Rider, 8hp Tecumseh

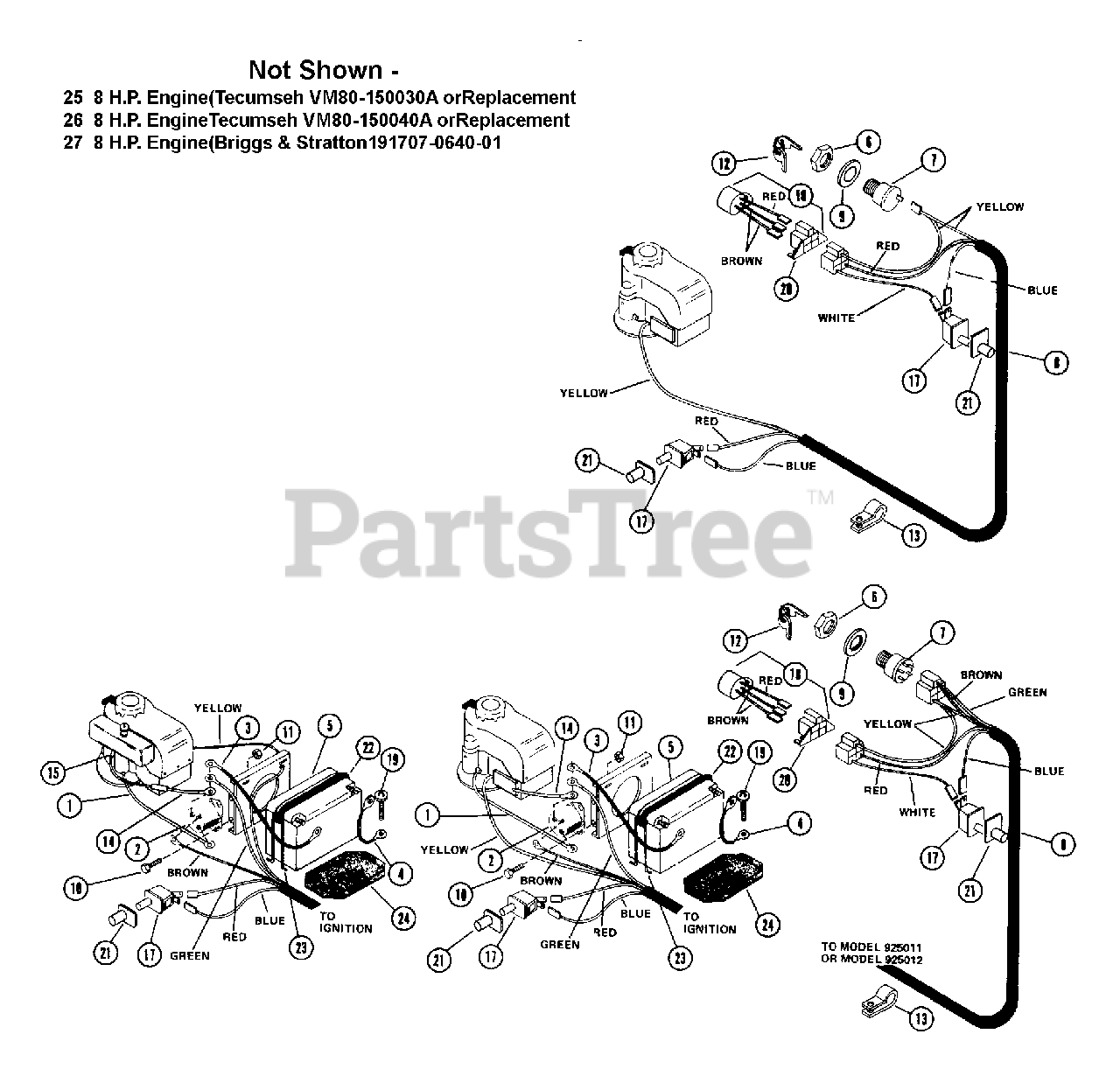

Electrical System Parts Diagram

  • Title

1

Ariens 02513300

GROUND CABLE

Note: (Used Only On Model(s): 925012).

$

$

Not available

1

Ariens 02518900

GROUND CABLE .25X13.00X.31
(Superseded to 03287100)

Note: (Used Only On Model(s): 925011).

$17.99

$

In Stock, only 2 left!

0

2

Ariens 02913200

SOLENOID,STARTER SWITCH
(Superseded to 53504000)

Note: (Used Only On Model(s): 011,012).

$81.99

$

Usually ships in 4-12 days

0

3

Ariens 02522700

GROUND CABLE
(Superseded to 02742000)

Note: (Used Only On Model(s): 011,012).

$

$

Not available

4

Ariens 02513600

GROUND WIRE
(Superseded to 00115600)

Note: (Used Only On Model(s): 011,012).

$5.99

$

Usually ships in 4-12 days

0

5

Ariens 02512900

BATTERY
(Superseded to 52708000)

Note: (Used Only On Model(s): 011,012).

$

$

Not available

6

Ariens 06507500

NUT .625-32 ALUM
(Superseded to 06517300)

Note: (SPECIAL)

$9.49

$

Usually ships in 4-12 days

0

7

Ariens 62500900

IGNITION SWITCH ASSEMBLY
(Superseded to 52709300)

Note: (Used Only On Model(s): 011,012).

$58.99

$

In Stock, only 1 left!

0

7

Ariens 62501100

KEY SWITCH ASSEMBLY
(Superseded to 52503900)

Note: (Used Only On Model(s): 006,009).

$

$

Not available

8

Ariens 02518200

WIRING HARNESS
(Superseded to 02534200)

Note: (Used Only On Model(s): 006,009).

$

$

Not available

8

Ariens 02517700

WIRING HARNESS
(Superseded to 02534000)

Note: (Used Only On Model(s): 012).

$

$

Not available

8

Ariens 02518500

WIRING HARNESS
(Superseded to 02534100)

Note: (Used Only On Model(s): 011).

$

$

Not available

9

Ariens 06301900

WSHR-LK-INT .625X.045 PL
(Superseded to 06306900)

Note: (SPECIAL)

$4.99

$

Usually ships in 4-12 days

0

10

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

Note: (Used Only On Model(s): 011,012).

$0.99

$

In Stock, Qty 5

0

11

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

Note: (Used Only On Model(s): 011,012).

$0.99

$

In Stock, Qty 20+

0

12

Ariens 01315700

KEYS
(Superseded to 02460700)

$10.99

$

In Stock, Qty 20+

0

13

Ariens 06906700

CLIP

Note: (Used Only On Model(s): 006,009).

$

$

Not available

13

Ariens 06908300

CLIP

Note: (Used Only On Model(s): 011,012).

$

$

Not available

14

Ariens 02514000

CHARGING WIRE

Note: (Used Only On Model(s): 012).

$

$

Not available

14

Ariens 02519300

CHARGING WIRE

Note: (Used Only On Model(s): 011).

$

$

Not available

15

Ariens 01319800

FUSE

Note: (Used Only On Model(s): 011).

$

$

Not available

17

Ariens 02517200

SWITCH

$43.99

$

Usually ships in 4-12 days

0

18

Ariens 52501400

MODULE ASSEMBLY
(Superseded to 52502600)

Note: (Used Only On Model(s): 006,009,012).

$

$

Not available

18

Ariens 52501300

MODULE ASSEMBLY
(Superseded to 52502500)

Note: (Used Only On Model(s): 011).

$

$

Not available

19

Ariens 07402600

SCR-TAP 10-24X.375 CRPH 1A
(Superseded to 07406900)

Note: (Used Only On Model(s): 011,012).

$2.99

$

Usually ships in 4-12 days

0

20

Ariens 02520300

CONNECTOR
(Superseded to 52401000)

$

$

Not available

21

Ariens 07404500

SCR-TAP 12-24X.50 HWH PL TR
(Superseded to 07411900)

$2.49

$

In Stock, Qty 5

0

22

Ariens 07504100

BATTERY STRAP
(Superseded to 07507500)

Note: (Used Only On Model(s): 011,012).

$15.99

$

Usually ships in 4-12 days

0

23

Ariens 02515200

HOOK
(Superseded to 03640900)

Note: (Used Only On Model(s): 011,012).

$40.99

$

Usually ships in 4-12 days

0

24

Ariens 02530700

RUBBER PAD

Note: (Used Only On Model(s): 011,012).

$

$

Not available

25

8 H.P. Engine(Tecumseh VM80-150030A orReplacement)

Note: (Used Only On Model(s): 006,009).

$

$

Not available

26

8 H.P. Engine(Tecumseh VM80-150040A orReplacement)

Note: (Used Only On Model(s): 012).

$

$

Not available

27

8 H.P. Engine(Briggs & Stratton191707-0640-01 or Replacement)

Note: (Used Only On Model(s): 011).

$

$

Not available
