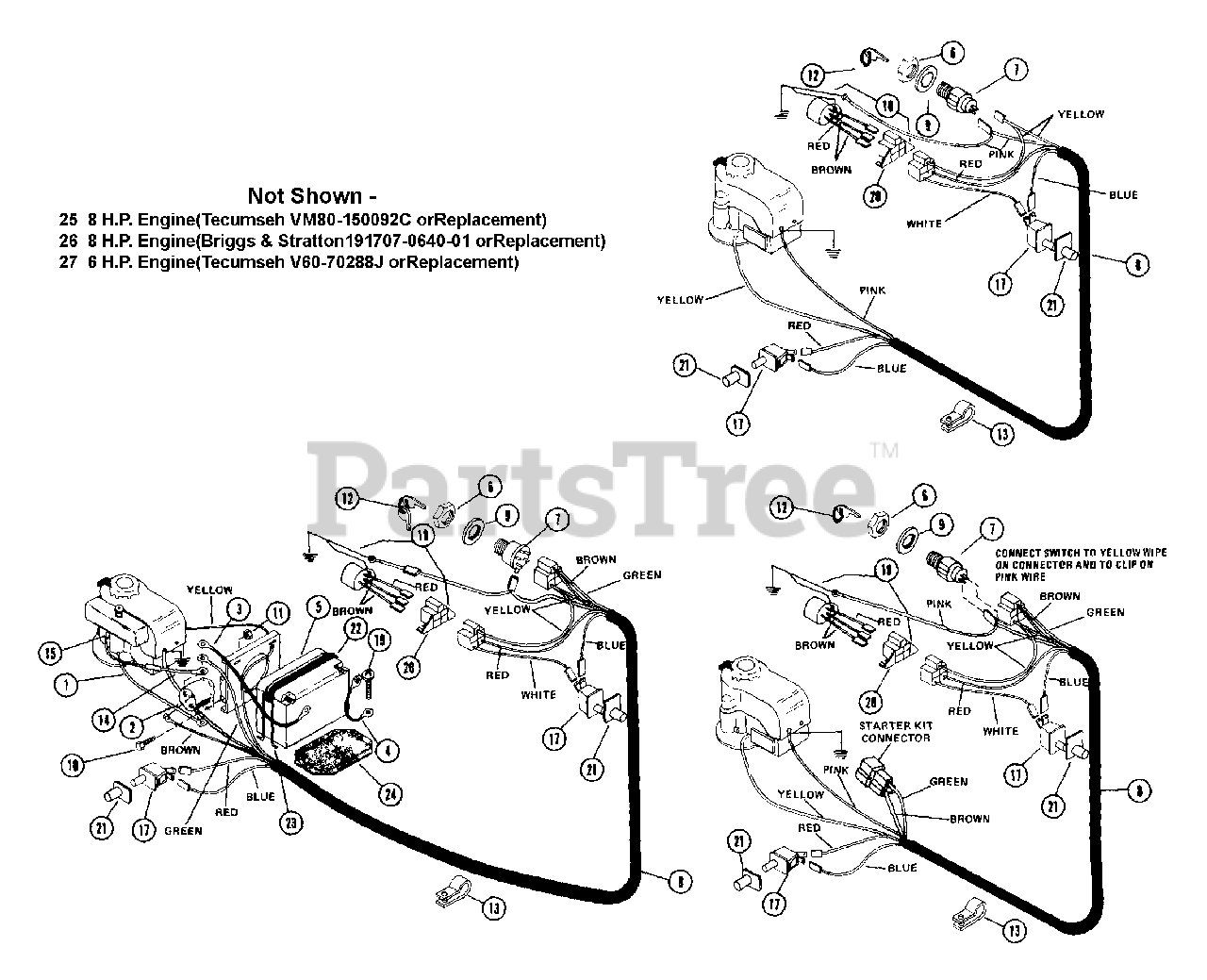

925014 - Ariens Emperor 30" Rear-Engine Rider, 8hp Tecumseh (SN: 000101 - 017500) Electrical System Parts Diagram

Emperor 30" Rear-Engine Rider, 8hp Tecumseh

Electrical System Parts Diagram

  • Title

1

Ariens 02518900

GROUND CABLE .25X13.00X.31
(Superseded to 03287100)

Note: (Used Only On Model(s): 925011).

$17.99

$

In Stock, only 2 left!

0

2

Ariens 02913200

SOLENOID,STARTER SWITCH
(Superseded to 53504000)

Note: (Used Only On Model(s): 011).

$81.99

$

Usually ships in 4-12 days

0

3

Ariens 02522700

GROUND CABLE
(Superseded to 02742000)

Note: (Used Only On Model(s): 011).

$

$

Not available

4

Ariens 02513600

GROUND WIRE
(Superseded to 00115600)

Note: (Used Only On Model(s): 011).

$5.99

$

Usually ships in 4-12 days

0

5

Ariens 02512900

BATTERY
(Superseded to 52708000)

Note: (Used Only On Model(s): 011).

$

$

Not available

6

Ariens 06507500

NUT .625-32 ALUM
(Superseded to 06517300)

Note: (SPECIAL)

$9.49

$

Usually ships in 4-12 days

0

7

Ariens 62500900

IGNITION SWITCH ASSEMBLY
(Superseded to 52709300)

Note: (Used Only On Model(s): 011).

$58.99

$

In Stock, only 2 left!

0

7

Ariens 01113400

KEY SWITCH
(Superseded to 52406900)

Note: (Used Only On Model(s): 013,014).

$39.99

$

In Stock, only 2 left!

0

8

Ariens 02536400

WIRING HARNESS
(Superseded to 02534200)

Note: (Used Only On Model(s): 013).

$

$

Not available

8

Ariens 02535200

WIRING HARNESS

Note: (Used Only On Model(s): 014).

$

$

Not available

8

Ariens 02534100

WIRING HARNESS-B&S

Note: (Used Only On Model(s): 011).

$

$

Not available

9

Ariens 06301900

WSHR-LK-INT .625X.045 PL
(Superseded to 06306900)

Note: (SPECIAL)

$4.99

$

Usually ships in 4-12 days

0

10

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

Note: (Used Only On Model(s): 011).

$0.99

$

In Stock, only 3 left!

0

11

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

Note: (Used Only On Model(s): 011).

$0.99

$

In Stock, Qty 20+

0

12

Ariens 01315700

KEYS
(Superseded to 02460700)

$10.99

$

In Stock, Qty 20+

0

13

Ariens 06906700

CLIP

Note: (Used Only On Model(s): 013,014).

$

$

Not available

13

Ariens 06908300

CLIP

Note: (Used Only On Model(s): 011).

$

$

Not available

14

Ariens 02518300

MUFFLER

Note: (Used Only On Model(s): 011).

$

$

Not available

15

Ariens 01319800

FUSE

Note: (Used Only On Model(s): 011).

$

$

Not available

17

Ariens 02517200

SWITCH

$43.99

$

Usually ships in 4-12 days

0

18

Ariens 52502600

MODULE T KIT

Note: (Used Only On Model(s): 013,014).

$

$

Not available

18

Ariens 52502500

MODULE B KIT

Note: (Used Only On Model(s): 011).

$

$

Not available

19

Ariens 07402600

SCR-TAP 10-24X.375 CRPH 1A
(Superseded to 07406900)

Note: (Used Only On Model(s): 011).

$2.99

$

Usually ships in 4-12 days

0

20

Ariens 02520300

CONNECTOR
(Superseded to 52401000)

$

$

Not available

21

Ariens 07404500

SCR-TAP 12-24X.50 HWH PL TR
(Superseded to 07411900)

$2.49

$

In Stock, Qty 5

0

22

Ariens 07507500

BATTERY STRAP

Note: (Used Only On Model(s): 011).

$15.99

$

Usually ships in 4-12 days

0

23

Ariens 02515200

HOOK
(Superseded to 03640900)

Note: (Used Only On Model(s): 011).

$40.99

$

Usually ships in 4-12 days

0

24

Ariens 02530700

RUBBER PAD

Note: (Used Only On Model(s): 011).

$

$

Not available

25

8 H.P. Engine(Tecumseh VM80-150092C orReplacement)

Note: (Used Only On Model(s): 014).

$

$

Not available

26

8 H.P. Engine(Briggs & Stratton191707-0640-01 or Replacement)

Note: (Used Only On Model(s): 011).

$

$

Not available

27

6 H.P. Engine(Tecumseh V60-70288J) orReplacement)

Note: (Used Only On Model(s): 013).

$

$

Not available
