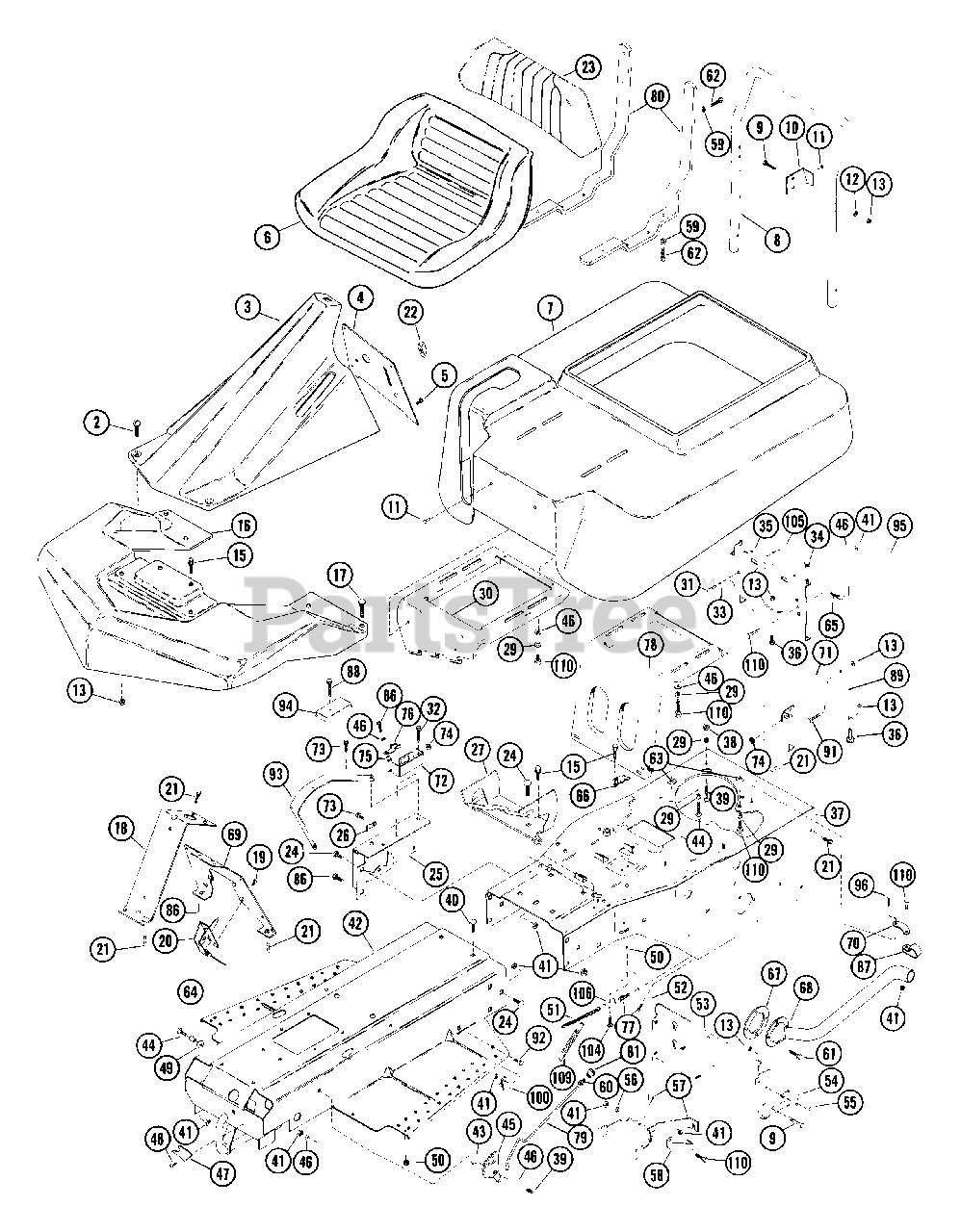

925017 - Ariens Emperor 38" Rear-Engine Rider, 10hp Tecumseh (SN: 000101 - 002000)

Emperor 38" Rear-Engine Rider, 10hp Tecumseh

925017 - Ariens Emperor 38" Rear-Engine Rider, 10hp Tecumseh (SN: 000101 - 002000) > Parts Diagrams (6) > Frame Assembly

  • Title
06103200

2

SCR-MCH .25-20X.63 CRPH PL

Part# 06103200

OEM Warranty Repair Part for Ariens

Not available

02525100

3

HOOD

Part# 02525100

OEM Warranty Repair Part for Ariens

Not available

52503100

4

CONTROL PANEL ASSEMBLY

Part# 52503100

Note: (includes decals)

OEM Warranty Repair Part for Ariens

Not available

07400100

5

SCR-TAP 10-12X.50 CRPH PL A

Part# 07400100

OEM Warranty Repair Part for Ariens

Not available

02507100

6

SEAT

Part# 02507100 (Superseded to 01235600)

Note: (Used Only On Model(s): 015,014,017,018).

OEM Warranty Repair Part for Ariens

Not available

02517900

SEAT

Part# 02517900 (Superseded to 02756800)

Note: (Used Only On Model(s): 011).

OEM Warranty Repair Part for Ariens

Not available

52500400

7

ENGINE COVER ASSEMBLY

Part# 52500400

Note: (Used Only On Model(s): 011).

OEM Warranty Repair Part for Ariens

Not available

02515900

8

SERVICE BAR

Part# 02515900

OEM Warranty Repair Part for Ariens

Not available

05905000

9

BLT-HEX .25-20X1.50 PL GR5

Part# 05905000 (Superseded to 05952500)

Note: (Used Only On Model(s): 014,015,017,018).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05905000

9

BLT-HEX .25-20X1.50 PL GR5

Part# 05905000 (Superseded to 05952500)

Note: (Used Only On Model(s): 011).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

02515500

10

BRACKET

Part# 02515500

Note: (Used Only On Model(s): 011).

OEM Warranty Repair Part for Ariens

Not available

06802500

11

RVT-POP .187X.402 DOME ST

Part# 06802500

Note: (Used Only On Model(s): 011).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06400700

12

WSHR-FL-STL.312X.734X.065PL

Part# 06400700 (Superseded to 06435800)

Note: (Used Only On Model(s): 011).

OEM Warranty Repair Part for Ariens

Not available

06504000

13

NUT-LK-CTR .250-20 PL

Part# 06504000 (Superseded to 06529700)

Note: (Used Only On Model(s): 011,014,017,018).

OEM Warranty Repair Part for Ariens

Not available

06504000

13

NUT-LK-CTR .250-20 PL

Part# 06504000 (Superseded to 06529700)

Note: (Used Only On Model(s): 015).

OEM Warranty Repair Part for Ariens

Not available

07001500

15

BLT-SERHFWH .25-20X.50 PL

Part# 07001500 (Superseded to 07049300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

02525800

16

FRONT WHEEL COVERS

Part# 02525800

OEM Warranty Repair Part for Ariens

Not available

07001100

17

SCR-SLTR-SERNK .25-20X.62 PL

Part# 07001100 (Superseded to 07028600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

02538100

18

PANEL

Part# 02538100

OEM Warranty Repair Part for Ariens

Not available

07402600

19

SCR-TAP 10-24X.375 CRPH 1A

Part# 07402600 (Superseded to 07406900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

06907600

20

THROTTLE CONTROL

Part# 06907600

Note: (Used Only On Model(s): 011,015).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $32.70

06908700

20

THROTTLE CONTROL

Part# 06908700

Note: (Used Only On Model(s): 014,017,018).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $58.08

07000900

21

BLT-SERHFWH .31-18X.50 PL

Part# 07000900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

07501900

22

KNOB

Part# 07501900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

02518000

23

SEAT BACK

Part# 02518000

Note: (Used Only On Model(s): 011).

OEM Warranty Repair Part for Ariens

Not available

06200900

24

BLT-RDHDSQSHNK .31-18X.50 YZ

Part# 06200900 (Superseded to 06222000)

Note: (Used Only On Model(s): 014,015,017,018).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

06200900

24

BLT-RDHDSQSHNK .31-18X.50 YZ

Part# 06200900 (Superseded to 06222000)

Note: (Used Only On Model(s): 011).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

02516600

25

SHIFT QUADRANT

Part# 02516600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

06906600

26

CLIP

Part# 06906600

Note: (Used Only On Model(s): 011).

OEM Warranty Repair Part for Ariens

Not available

02512200

27

SEAT HINGE

Part# 02512200 (Superseded to 52503500)

Note: (Used Only On Model(s): 011).

OEM Warranty Repair Part for Ariens

Not available

05904500

28

BLT-HEX .31-18X1.50 PL GR2

Part# 05904500 (Superseded to 05952400)

Note: (Used Only On Model(s): 017,014,018).

OEM Warranty Repair Part for Ariens

Not available

06300300

29

WSHR-LK .312X.097 PL HVY

Part# 06300300 (Superseded to 06307400)

OEM Warranty Repair Part for Ariens

Not available

02524000

30

BRACKET

Part# 02524000 (Superseded to 52503500)

Note: (Used Only On Model(s): 011).

OEM Warranty Repair Part for Ariens

Not available

07400900

31

SCR-TAP 10-16X1.0 SLHP PL AB

Part# 07400900

Note: (Used Only On Model(s): 011).

OEM Warranty Repair Part for Ariens

Not available

07402600

32

SCR-TAP 10-24X.375 CRPH 1A

Part# 07402600 (Superseded to 07406900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

06400100

33

WSHR-FL-STL .250X.562X.049 PL

Part# 06400100 (Superseded to 06442300)

Note: (Used Only On Model(s): 011).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

07503100

34

BUMPER GROMMET

Part# 07503100

Note: (Used Only On Model(s): 011).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

07503100

34

BUMPER GROMMET

Part# 07503100

Note: (Used Only On Model(s): 015,014,017,018).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

02535000

35

SEAT LEG

Part# 02535000

Note: (Used Only On Model(s): 015,014,017,018).

OEM Warranty Repair Part for Ariens

Not available

02536600

35

SEAT LEG

Part# 02536600

Note: (Used Only On Model(s): 011).

OEM Warranty Repair Part for Ariens

Not available

05902800

36

BLT-HEX .25-20X.50 PL GR2

Part# 05902800 (Superseded to 05947900)

Note: (Used Only On Model(s): 011).

OEM Warranty Repair Part for Ariens

Not available

05902800

36

BLT-HEX .25-20X.50 PL GR2

Part# 05902800 (Superseded to 05947900)

Note: (Used Only On Model(s): 015).

OEM Warranty Repair Part for Ariens

Not available

05902800

36

BLT-HEX .25-20X.50 PL GR2

Part# 05902800 (Superseded to 05947900)

Note: (Used Only On Model(s): 014,017,018).

OEM Warranty Repair Part for Ariens

Not available

02525900

37

FRAME

Part# 02525900

OEM Warranty Repair Part for Ariens

Not available

06501500

38

NUT-HEX .312-18

Part# 06501500 (Superseded to 06529200)

Note: (Used Only On Model(s): 015,011).

OEM Warranty Repair Part for Ariens

Not available

05906900

39

BLT-HEX .31-18X1.25 PL GR2

Part# 05906900 (Superseded to 05947500)

Note: (Used Only On Model(s): 011,015).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05906900

39

BLT-HEX .31-18X1.25 PL GR2

Part# 05906900 (Superseded to 05947500)

Note: (Used Only On Model(s): 014,017,018).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06202600

40

BLT-RDHDSQNK .312-18X.62 PL

Part# 06202600 (Superseded to 06200232)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06504200

41

NUT-LK .312-18 GR A PL

Part# 06504200 (Superseded to 06529800)

Note: (Used Only On Model(s): 011).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06504200

41

NUT-LK .312-18 GR A PL

Part# 06504200 (Superseded to 06529800)

Note: (Used Only On Model(s): 015).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06504200

41

NUT-LK .312-18 GR A PL

Part# 06504200 (Superseded to 06529800)

Note: (Used Only On Model(s): 014,017,018).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

52501600

42

FRONT FRAME ASSY.

Part# 52501600 (Superseded to 52502900)

OEM Warranty Repair Part for Ariens

Not available

02519500

43

SPACER -SHLD .344X.500X.469

Part# 02519500

OEM Warranty Repair Part for Ariens

Not available

05900300

44

BLT-HEX .31-18X1.00 PL GR 2

Part# 05900300 (Superseded to 05946900)

Note: (Used Only On Model(s): 011,015).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05900300

44

BLT-HEX .31-18X1.00 PL GR 2

Part# 05900300 (Superseded to 05946900)

Note: (Used Only On Model(s): 014,017,018).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

02519400

45

BRAKE LATCH

Part# 02519400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

06400200

46

WSHR-FL-STL .38X.875X.083 PL

Part# 06400200 (Superseded to 06435700)

Note: (Used Only On Model(s): 011).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06400200

46

WSHR-FL-STL .38X.875X.083 PL

Part# 06400200 (Superseded to 06435700)

Note: (Used Only On Model(s): 015).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06400200

46

WSHR-FL-STL .38X.875X.083 PL

Part# 06400200 (Superseded to 06435700)

Note: (Used Only On Model(s): 017,014,018).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

02507200

47

LOCK SPRING

Part# 02507200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

07400100

48

SCR-TAP 10-12X.50 CRPH PL A

Part# 07400100

OEM Warranty Repair Part for Ariens

Not available

06405700

49

WSHR-FL-STL .323X.625X.062 PL

Part# 06405700 (Superseded to 06436700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06505600

50

NUT-LK-FLG .250-20 PL

Part# 06505600 (Superseded to 06530100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

02525300

51

BRAKE CHAIN

Part# 02525300

OEM Warranty Repair Part for Ariens

Not available

02525400

52

BRACKET

Part# 02525400

OEM Warranty Repair Part for Ariens

Not available

02526000

53

COVER

Part# 02526000

OEM Warranty Repair Part for Ariens

Not available

06702900

54

PIN-HAIR INT .09X.188 PL

Part# 06702900

Note: (Used Only On Model(s): 011).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

02504300

55

PIN

Part# 02504300

Note: (Used Only On Model(s): 011).

OEM Warranty Repair Part for Ariens

Not available

06405700

56

WSHR-FL-STL .323X.625X.062 PL

Part# 06405700 (Superseded to 06436700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

02504400

57

BELT FINGER

Part# 02504400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $13.47

02509200

58

BELT FINGER BRACE

Part# 02509200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $12.24

06300200

59

WSHR-LK .250X.077 HVY PL

Part# 06300200 (Superseded to 06308000)

Note: (Used Only On Model(s): 011).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06504100

60

NUT-LK TOP 10-24 PL

Part# 06504100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

07403400

61

SCR-TAP 8-32X.38 SL HWH PL 23

Part# 07403400 (Superseded to 07414500)

Note: (Used Only On Model(s): 014,017,018).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

07403400

61

SCR-TAP 8-32X.38 SL HWH PL 23

Part# 07403400 (Superseded to 07414500)

Note: (Used Only On Model(s): 011,015).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05913200

62

BLT-HEX .25-20X1.00 GR2

Part# 05913200 (Superseded to 05947700)

Note: (Used Only On Model(s): 011).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06409000

63

WSHR-FL-STL .328X.875X.062 PL

Part# 06409000 (Superseded to 06439400)

Note: (Used Only On Model(s): 014,017,018).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

02513500

64

SPACER .344X1.000X.375

Part# 02513500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06702000

65

PIN-HAIR INT .08X.18X1.18

Part# 06702000 (Superseded to 06713500)

Note: (Used Only On Model(s): 015,014,017,018).

OEM Warranty Repair Part for Ariens

Not available

02535300

66

CLAMP

Part# 02535300

Note: (Used Only On Model(s): 015,014,017,018).

OEM Warranty Repair Part for Ariens

Not available

02524900

67

GASKET

Part# 02524900

Note: (Used Only On Model(s): 014,017,018).

OEM Warranty Repair Part for Ariens

Not available

02518800

67

GASKET

Part# 02518800

Note: (Used Only On Model(s): 011,015).

OEM Warranty Repair Part for Ariens

Not available

02538500

68

EXHAUST PIPE

Part# 02538500

Note: (Used Only On Model(s): 014,017,018).

OEM Warranty Repair Part for Ariens

Not available

02538600

68

EXHAUST PIPE

Part# 02538600

Note: (Used Only On Model(s): 011,015).

OEM Warranty Repair Part for Ariens

Not available

02538200

69

SUPPORT

Part# 02538200

OEM Warranty Repair Part for Ariens

Not available

02538700

70

STRAP

Part# 02538700

OEM Warranty Repair Part for Ariens

Not available

02524700

71

SHIELD

Part# 02524700

Note: (Used Only On Model(s): 014,017,018).

OEM Warranty Repair Part for Ariens

Not available

02517400

72

SWITCH HOUSING

Part# 02517400

OEM Warranty Repair Part for Ariens

Not available

07002200

73

BLT-SCRHFWH .25-20X.62 PL

Part# 07002200

Note: (Used Only On Model(s): 011).

OEM Warranty Repair Part for Ariens

Not available

07002200

73

BLT-SCRHFWH .25-20X.62 PL

Part# 07002200

Note: (Used Only On Model(s): 015,014,017,018).

OEM Warranty Repair Part for Ariens

Not available

07502600

74

GROMMET, .31 ID

Part# 07502600

Note: (Used Only On Model(s): 017,014,018).

OEM Warranty Repair Part for Ariens

Not available

07502600

74

GROMMET, .31 ID

Part# 07502600

Note: (Used Only On Model(s): 011,015).

OEM Warranty Repair Part for Ariens

Not available

01305900

75

BSHG, FLG .325X.499X.26X.88

Part# 01305900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

02517500

76

CAM NO SCRAP

Part# 02517500

OEM Warranty Repair Part for Ariens

Not available

07001500

77

BLT-SERHFWH .25-20X.50 PL

Part# 07001500 (Superseded to 07049300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

02535100

78

SEAT BRACKET

Part# 02535100 (Superseded to 52503500)

Note: (Used Only On Model(s): 015,014,017,018).

OEM Warranty Repair Part for Ariens

Not available

02535600

79

PARKING BRAKE ROD

Part# 02535600

OEM Warranty Repair Part for Ariens

Not available

02517800

80

SEAT BRACE

Part# 02517800

Note: (Used Only On Model(s): 011).

OEM Warranty Repair Part for Ariens

Not available

07503500

81

KNOB

Part# 07503500

OEM Warranty Repair Part for Ariens

Not available

07002700

86

BLT-SERHFWH .31-18X.75 PL

Part# 07002700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06907500

87

CLIP

Part# 06907500

OEM Warranty Repair Part for Ariens

Not available

07403600

88

SCR-TAP 12-14X1.25 CROVH PL 1A

Part# 07403600

OEM Warranty Repair Part for Ariens

Not available

02528000

89

BRACE

Part# 02528000 (Superseded to 02714100)

Note: (Used Only On Model(s): 014,017,018).

OEM Warranty Repair Part for Ariens

Not available

05910400

91

BLT-HEX .25-20X.38 PL GR2

Part# 05910400 (Superseded to 05947600)

Note: (Used Only On Model(s): 014,017,018).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

05903900

92

BLT-HEX .31-18X.50 PL GR2

Part# 05903900 (Superseded to 05947200)

OEM Warranty Repair Part for Ariens

Not available

02515800

93

SHIFT PANEL

Part# 02515800

Note: (Used Only On Model(s): 015,014,017,018).

OEM Warranty Repair Part for Ariens

Not available

02517600

94

COVER

Part# 02517600

OEM Warranty Repair Part for Ariens

Not available

02525200

95

BAFFLE

Part# 02525200

Note: (Used Only On Model(s): 011,015).

OEM Warranty Repair Part for Ariens

Not available

07003100

96

BLT-SCRHFWH .38-16X.75 PL

Part# 07003100 (Superseded to 07028500)

OEM Warranty Repair Part for Ariens

Not available

06905700

100

CLIP

Part# 06905700

OEM Warranty Repair Part for Ariens

Not available

06201700

104

BLT-RDHDSQNK .25-20X.62 PL

Part# 06201700 (Superseded to 06213800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

02521400

105

CLAMP

Part# 02521400

Note: (Used Only On Model(s): 011).

OEM Warranty Repair Part for Ariens

Not available

02525500

106

BRACKET

Part# 02525500

OEM Warranty Repair Part for Ariens

Not available

08302100

109

SG-TENS .041X.35X2.11 WLD 8

Part# 08302100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

05902200

110

BLT-HEX .31-18X.75 PL GR2

Part# 05902200 (Superseded to 05947000)

Note: (Used Only On Model(s): 011,015).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05902200

110

BLT-HEX .31-18X.75 PL GR2

Part# 05902200 (Superseded to 05947000)

Note: (Used Only On Model(s): 014,017,018).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40
