925017 - Ariens Emperor 38" Rear-Engine Rider, 10hp Tecumseh (SN: 000101 - 002000)

Emperor 38" Rear-Engine Rider, 10hp Tecumseh

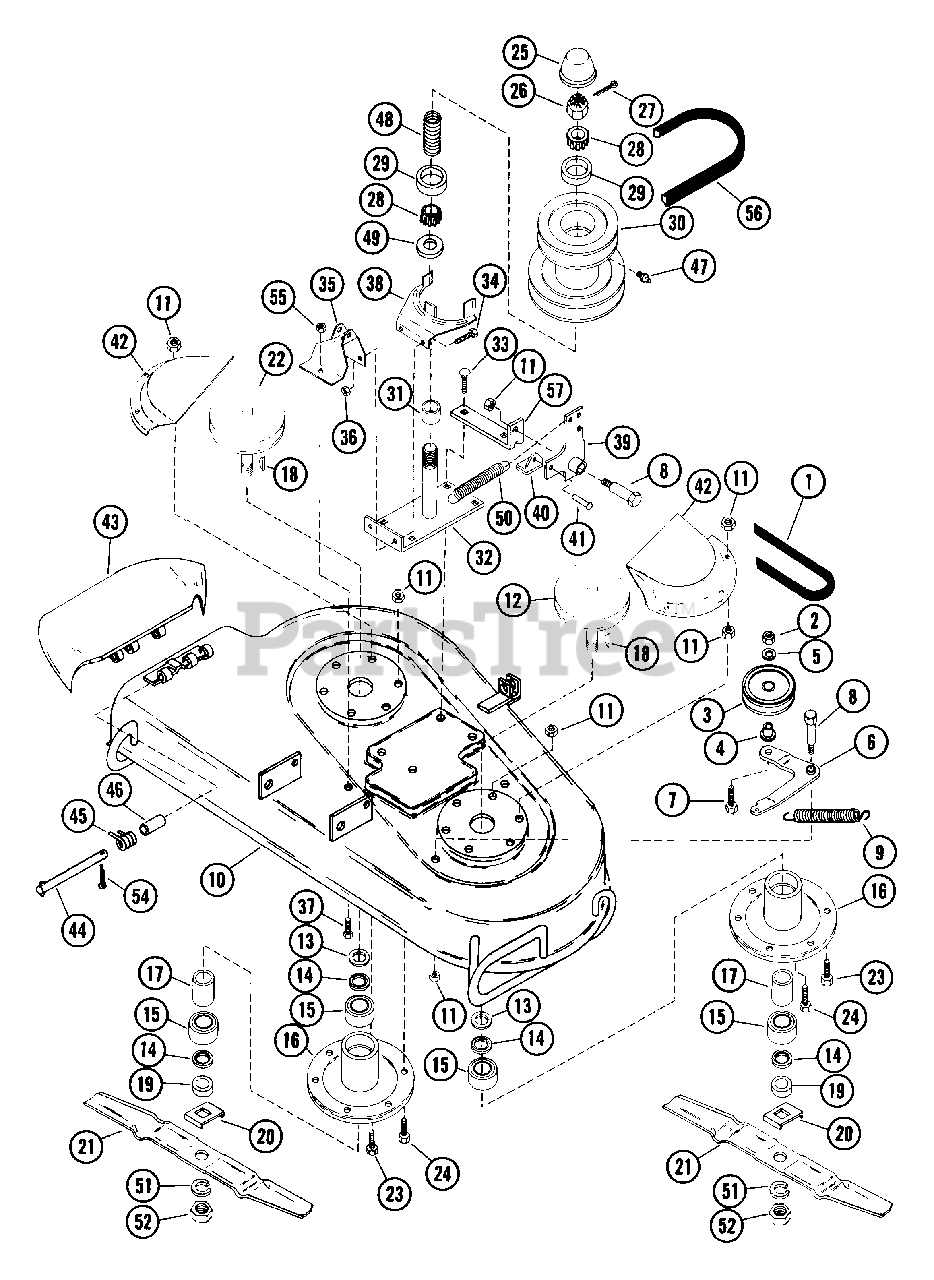

925017 - Ariens Emperor 38" Rear-Engine Rider, 10hp Tecumseh (SN: 000101 - 002000) > Parts Diagrams (6) > Mower 38"

  • Title
07203800

1

V-BELT, 4L-RAW EDGE

Part# 07203800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $31.25

06504600

2

NUT-LK-CTR .50-13

Part# 06504600 (Superseded to 06536300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

07308600

3

IDLER-FLAT 2.75X.62

Part# 07308600 (Superseded to 53508300)

OEM Warranty Repair Part for Ariens

Not available

05502100

4

BSHG-FLG .500X.625X.500X.750

Part# 05502100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06405600

5

WSHR-FL-STL .505X.880X.072 PL

Part# 06405600 (Superseded to 06436600)

OEM Warranty Repair Part for Ariens

Not available

02527200

6

ARM

Part# 02527200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $61.43

05904200

7

BLT-HEX .50-13X1.25 PL GR2

Part# 05904200 (Superseded to 05958900)

OEM Warranty Repair Part for Ariens

Not available

00302800

8

SHOULDER BOLT

Part# 00302800 (Superseded to 03535600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

08306800

9

SG-TENS .091X.73X5.28 WLD 30

Part# 08306800 (Superseded to 08306851)

OEM Warranty Repair Part for Ariens

Not available

52502000

10

PAN ASSEMBLY

Part# 52502000

Note: (includes Decals)

OEM Warranty Repair Part for Ariens

Not available

06503900

11

NUT-LK-CTR .375-16 GR A PL

Part# 06503900 (Superseded to 06529600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

02526600

12

SHEAVE

Part# 02526600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $55.29

06408800

13

WSHR-FL-STL .755X1.250X.125

Part# 06408800 (Superseded to 06441500)

OEM Warranty Repair Part for Ariens

Not available

00341900

14

BEARING SLINGER

Part# 00341900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $14.70

05407300

15

BRG-BALL .751X1.78X.61

Part# 05407300 (Superseded to 05412000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

01336400

16

SPINDLE HOUSING

Part# 01336400 (Superseded to 01336451)

OEM Warranty Repair Part for Ariens

Not available

02526400

17

SPACER .753X1.000X1.140

Part# 02526400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.48

06600300

18

KEY-WDRF .188X.75X.313 SAE 9

Part# 06600300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

00316900

19

RETAINER HUB

Part# 00316900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

00317000

20

BLADE TRAY

Part# 00317000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $27.00

01335000

21

MOWER BLADE

Part# 01335000 (Superseded to 03535500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $25.66

02526500

22

SHEAVE

Part# 02526500 (Superseded to 02526559)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $79.88

05900400

23

BLT-HEX .38-16X1.00 PL

Part# 05900400 (Superseded to 05948700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

05902300

24

BLT-HEX .38-16X.75 PL GR2

Part# 05902300 (Superseded to 05959400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

01336600

25

CAP, GREASE

Part# 01336600

OEM Warranty Repair Part for Ariens

Not available

06505800

26

NUT-JAM SL .75-20 PL

Part# 06505800 (Superseded to 06528300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

06701400

27

PIN-COTR .12 X 1.25 PL

Part# 06701400 (Superseded to 06712600)

OEM Warranty Repair Part for Ariens

Not available

05404500

28

BRG-CONE .750X.61

Part# 05404500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $13.36

05404400

29

BRG-CUP 1.781X.475

Part# 05404400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

52501200

30

SHEAVE ASSEMBLY-MOWER

Part# 52501200

Note: (Includes Zerk)

OEM Warranty Repair Part for Ariens

Not available

02528100

31

SPACER .753X1.000X.625

Part# 02528100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

02526700

32

PLATE

Part# 02526700

OEM Warranty Repair Part for Ariens

Not available

06201000

33

BLT-RDHDSQNK .38-16X.75 SHT PL

Part# 06201000 (Superseded to 06200004)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $4.98

07002700

34

BLT-SERHFWH .31-18X.75 PL

Part# 07002700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

02527100

35

BRACKET

Part# 02527100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

06507800

36

NUT-FLG. .312-18 PL

Part# 06507800 (Superseded to 06530400)

OEM Warranty Repair Part for Ariens

Not available

05903900

37

BLT-HEX .31-18X.50 PL GR2

Part# 05903900 (Superseded to 05947200)

OEM Warranty Repair Part for Ariens

Not available

02527300

38

FINGER

Part# 02527300

OEM Warranty Repair Part for Ariens

Not available

02526900

39

ARM

Part# 02526900

OEM Warranty Repair Part for Ariens

Not available

02527000

40

FOOT

Part# 02527000

OEM Warranty Repair Part for Ariens

Not available

06801600

41

RVT .25X.50 RH ST

Part# 06801600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

02527400

42

COVER

Part# 02527400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $39.07

02520400

43

PAN CHUTE EXTENSION

Part# 02520400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $87.88

02520500

44

CLEVIS PIN

Part# 02520500 (Superseded to 03624200)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $24.48

08307200

45

SG-TORS .095X.50X 1.0

Part# 08307200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $20.07

02202900

46

BSHG-SLV .334 X .502 X 1.437

Part# 02202900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

02209300

47

SPIN DRIVE ZERK FITTING

Part# 02209300 (Superseded to 07012600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

08305400

48

SG-COMP .091X.950X2.062

Part# 08305400

OEM Warranty Repair Part for Ariens

Not available

05606000

49

SEAL .750X1.690X.153

Part# 05606000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $39.07

08309700

50

SG-TENS .072X.50X8.0 WLD 25

Part# 08309700

OEM Warranty Repair Part for Ariens

Not available

06300800

51

WSHR-LK .750X.188 MED PL

Part# 06300800 (Superseded to 06310300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06502500

52

NUT-JAM .75-10 PL

Part# 06502500 (Superseded to 06537700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06700100

54

PIN-COTR .09X.75 PL

Part# 06700100 (Superseded to 06706900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06504200

55

NUT-LK .312-18 GR A PL

Part# 06504200 (Superseded to 06529800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

07205200

56

V-BELT, 5L-RAW EDGE

Part# 07205200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $42.43

02526800

57

BRACKET

Part# 02526800

OEM Warranty Repair Part for Ariens

Not available
