926001 (926 LE) - Ariens 26" Snow Blower, 9hp Tecumseh (SN: 002634 - 010000) Wheels And Axles Parts Diagram

26" Snow Blower, 9hp Tecumseh

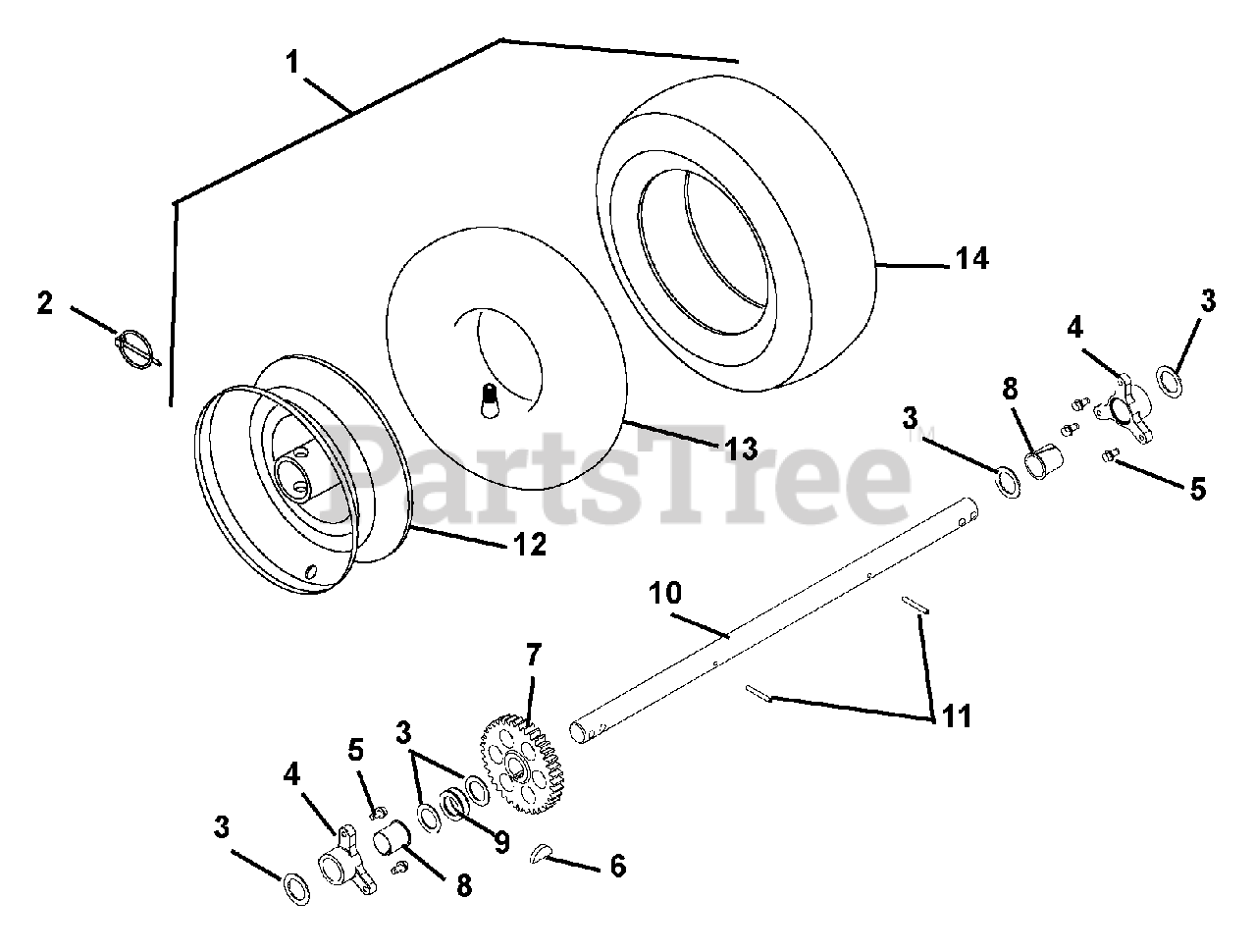

Wheels And Axles Parts Diagram

  • Title

1

Ariens 07100034

TIRE/WHEEL, RH 15X5.00-6 PIN
(Superseded to 07100225)

Note: (Includes Items 12-14)

$

$

Not available

1

Ariens 07100035

TIRE/WHEEL, LH 15X5.00-6 PIN
(Superseded to 07100226)

Note: (Includes Items 12-14)

$

$

Not available

2

Ariens 07015800

PIN-LOK .31X2.00

$6.99

$

In Stock, only 2 left!

0

3

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.49

$

In Stock, Qty 16

0

4

Ariens 00275100

BUSHING, RAKE SHAFT 1"

$11.99

$

In Stock, Qty 20+

0

5

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 06601200

KEY-WDRF .25X.750X.313 SAE91

$2.99

$

In Stock, only 4 left!

0

7

Ariens 00371000

GEAR, SPUR

$53.99

$

In Stock, only 1 left!

0

8

Ariens 05500030

BSHG-FLG SPLIT NYLINER 1.0" HP

$6.99

$

In Stock, Qty 20+

0

9

Ariens 00531500

SPACER 1.005X1.5075X.375

$7.49

$

In Stock, Qty 8

0

10

Ariens 00391500

AXLE, 1.00" SOLID

$137.99

$

Usually ships in 4-12 days

0

11

Ariens 05803000

PIN-ROLL .188X1.50

$0.99

$

In Stock, Qty 20+

0

13

Ariens 07156400

TUBE 15 X 5.00-6

$20.99

$

In Stock, only 2 left!

0

14

Ariens 07100104

TIRE, X-TRAC 15X5-6

$

$

Not available
