926001 (926 LE) - Ariens 26" Snow Blower, 9hp Tecumseh (SN: 010001 & Above) Speed Selector And Frame Parts Diagram

26" Snow Blower, 9hp Tecumseh

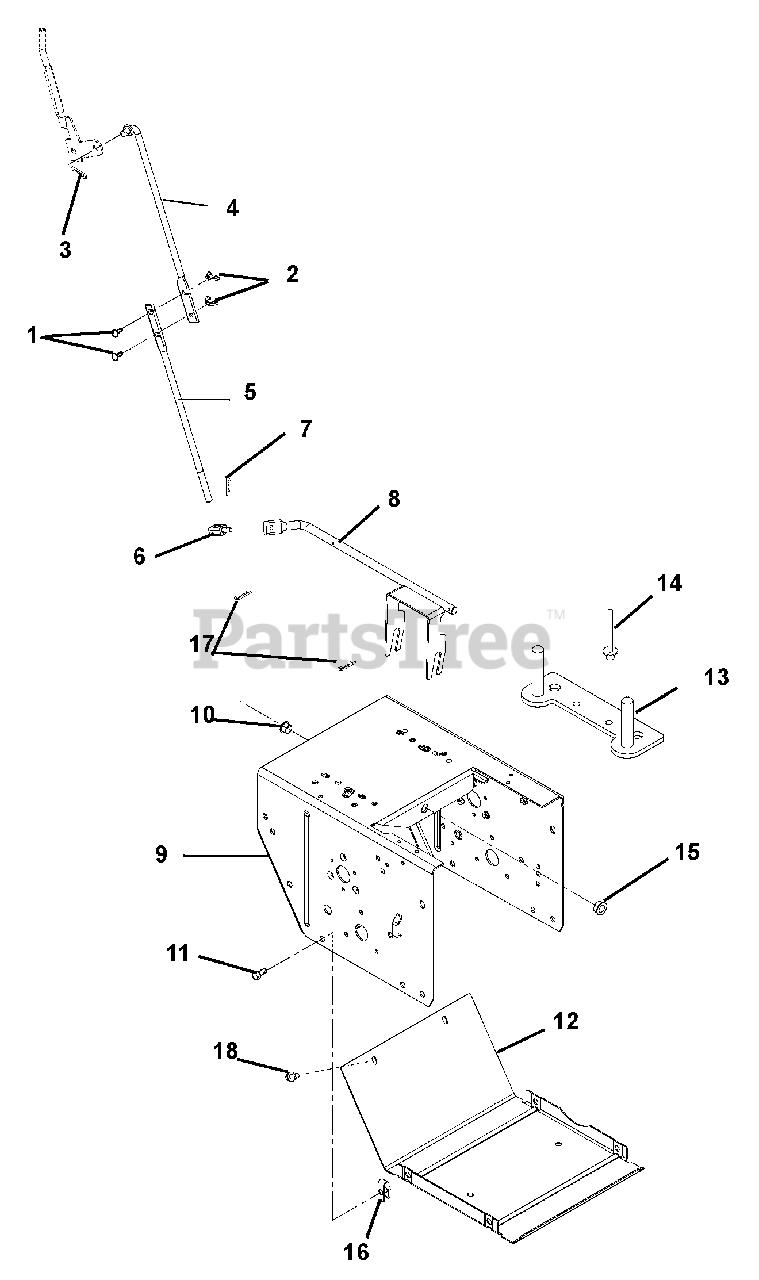

Speed Selector And Frame Parts Diagram

  • Title

1

Ariens 06219800

@BLT-RDHDSQNK .25-20X1.00 G5YZ
(Superseded to 06200402)

$2.49

$

Usually ships in 4-12 days

0

2

Ariens 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$5.49

$

Usually ships in 4-12 days

0

3

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

4

Ariens 00386000

ROD, SHIFT-UPPER
(Superseded to 52608900)

$88.99

$

In Stock, only 2 left!

0

5

Ariens 00386600

ROD, SHIFT-LOWER
(Superseded to 52608900)

$88.99

$

In Stock, only 2 left!

0

6

Ariens 00386700

PIVOT,SHIFT ROD .375-16(TRUNN)

$8.49

$

In Stock, Qty 7

0

7

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

8

Ariens 00371351

ARM, SHIFT-WELDMENT
(Superseded to 00371300)

$61.99

$

Usually ships in 4-12 days

0

9

Ariens 00370459

FRAME, MAIN

$394.99

$

Usually ships in 4-12 days

0

10

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 14

0

11

Ariens 06118000

@SCR-MCH .25-20X.75 HWH YWZC
(Superseded to 05901824)

$1.99

$

In Stock, Qty 15

0

12

Ariens 00375159

COVER, BOTTOM

$84.99

$

Usually ships in 4-12 days

0

13

Ariens 00188400

STRAP, ENGINE BOLT-WELDMENT

Note: (001, 002, 003, 013, 300, 301, 302, 304, 305, 306, 307, 308, 500, 501, 502)

$21.99

$

Usually ships in 4-12 days

0

Ariens 00392000

STRAP, ENGINE BOLT-LARGE BRIGG

Note: (014, 015)

$17.99

$

Usually ships in 4-12 days

0

14

Ariens 06800001

RVT-POP .187X.45 DOME ALUM
(Superseded to 06800140)

$1.49

$

In Stock, only 3 left!

0

15

Ariens 05500028

BUSHING, POLYLINER-.50 SNAPIN

$2.49

$

In Stock, Qty 9

0

16

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06944800

CLIP, SPRING

$1.49

$

In Stock, Qty 6

0

18

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
