926005 (11526 DLE) - Ariens 26" Snow Blower, 11.5hp Tecumseh (SN: 000101 - 000493) Wheels And Axles Parts Diagram

26" Snow Blower, 11.5hp Tecumseh

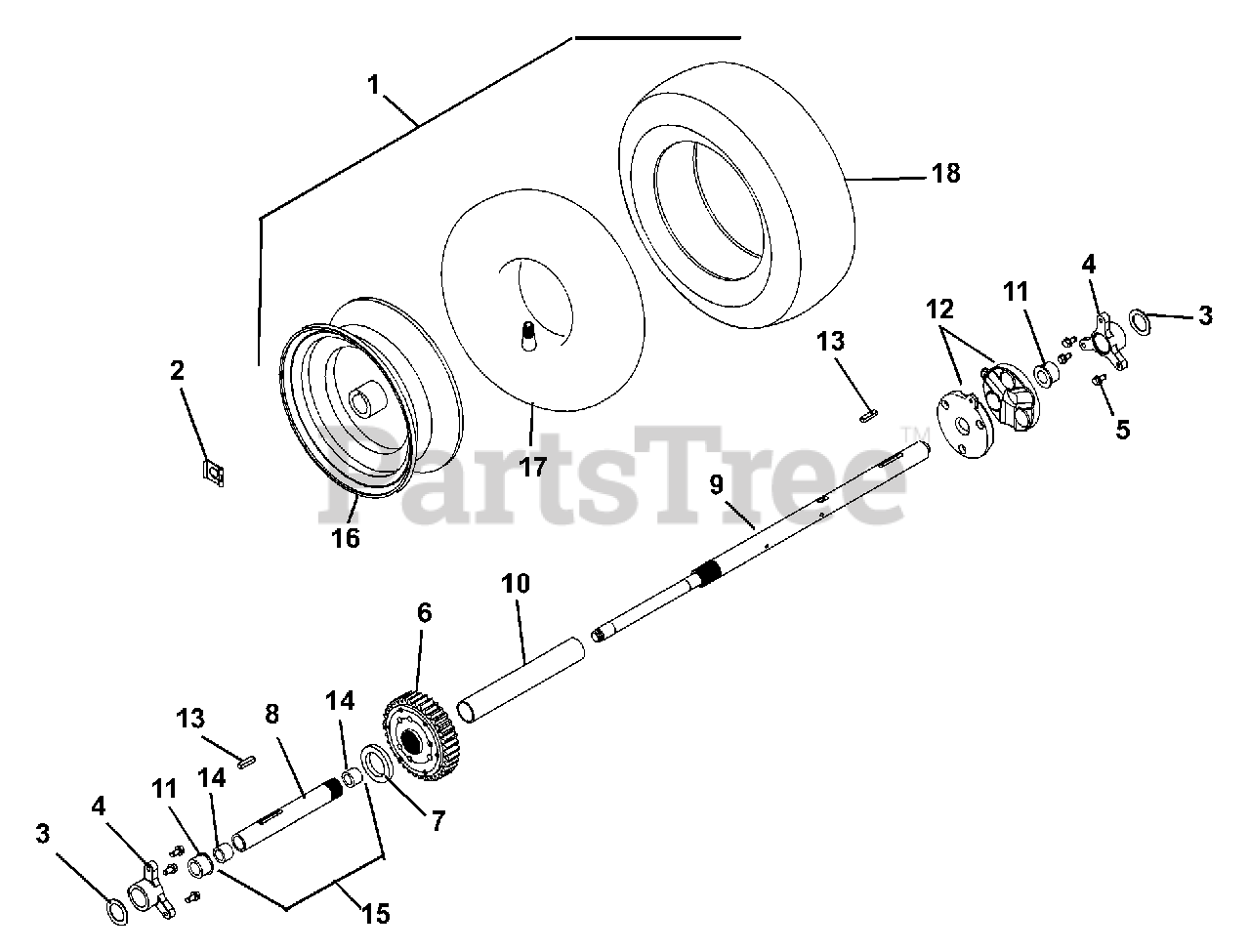

Wheels And Axles Parts Diagram

  • Title

1

Ariens 07100026

TIRE/WHEEL, RH 16X4.80-8 DIFF
(Superseded to 07101201)

Note: (Includes 16-18) (004, 005, 006, 300, 301)

$125.99

$

In Stock, only 1 left!

0

Ariens 07100027

TIRE/WHEEL, LH 16X4.80-8 DIFF
(Superseded to 07101202)

Note: (Includes 16-18) (004, 005, 006, 300, 301)

$125.99

$

Usually ships in 4-12 days

0

Ariens 07100030

TIRE/WHEEL, RH 16X6.50-8 DIFF
(Superseded to 07101139)

Note: (Includes 16-18) (500, 501, 502)

$151.99

$

Usually ships in 4-12 days

0

Ariens 07100031

TIRE/WHEEL, LH 16X6.50-8 DIFF
(Superseded to 07101140)

Note: (Includes 16-18) (500, 501, 502)

$151.99

$

In Stock, only 2 left!

0

2

Ariens 05700001

CLIP, SNAP .625 DIA

$2.99

$

In Stock, Qty 20+

0

3

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.99

$

In Stock, Qty 18

0

4

Ariens 00275100

BUSHING, RAKE SHAFT 1"

$11.99

$

In Stock, Qty 8

0

5

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 52601600

DIFFERENTIAL, REMOTE-ASSY

$231.99

$

In Stock, only 3 left!

0

7

Ariens 06400012

WSHR-FL-NY 1.38X2.00X.25

$6.49

$

Usually ships in 4-12 days

0

8

Ariens 00375900

AXLE, DIFFERENTIAL-SHORT
(Superseded to 52601700)

$112.99

$

In Stock, Qty 6

0

9

Ariens 00376000

AXLE, DIFFERENTIAL-LONG

$373.99

$

In Stock, only 4 left!

0

10

Ariens 00386500

TUBE, AXLE

$22.99

$

In Stock, only 2 left!

0

11

Ariens 05500030

BSHG-FLG SPLIT NYLINER 1.0" HP

$7.49

$

In Stock, Qty 20+

0

12

Ariens 00382900

CAM, DIFFERENTIAL

$

$

Not available

13

Ariens 06600002

KEY-RECT .25X.188X1.00

$1.49

$

In Stock, Qty 12

0

14

Ariens 05500023

BSHG-SLV .706X.764X.75 BRZ

$3.99

$

In Stock, Qty 20+

0

15

Ariens 52601700

AXLE, DIFFERENTIAL-W/BUSHINGS

Note: (Includes 8 and 14)

$112.99

$

In Stock, Qty 6

0

16

Ariens 07100102

HUB, WHEEL - 16X4.8-8 DIFF

Note: (004, 005, 006, 300, 301)

$65.99

$

Usually ships in 4-12 days

0

Ariens 07100103

HUB, WHEEL - 16X6.5-8 DIFF

Note: (500, 501, 502)

$65.99

$

In Stock, only 1 left!

0

17

Ariens 07103700

TUBE

Note: (004, 005, 006, 300, 301)

$15.99

$

In Stock, only 2 left!

0

Ariens 07108700

TUBE

Note: (500, 501, 502)

$36.99

$

Usually ships in 4-12 days

0

18

Ariens 07100106

TIRE, X-TRAC 16X4.8-8

Note: (004, 005, 006, 300, 301)

$

$

Not available

Ariens 07100108

TIRE, X-TRAC 16X6.5-8

Note: (500, 501, 502)

$

$

Not available
