926007 (ST 926 LE) - Ariens 26" Snow Blower, 9.5hp Briggs & Stratton (SN: 000101 - 004000) Chute And Auger Parts Diagram

26" Snow Blower, 9.5hp Briggs & Stratton

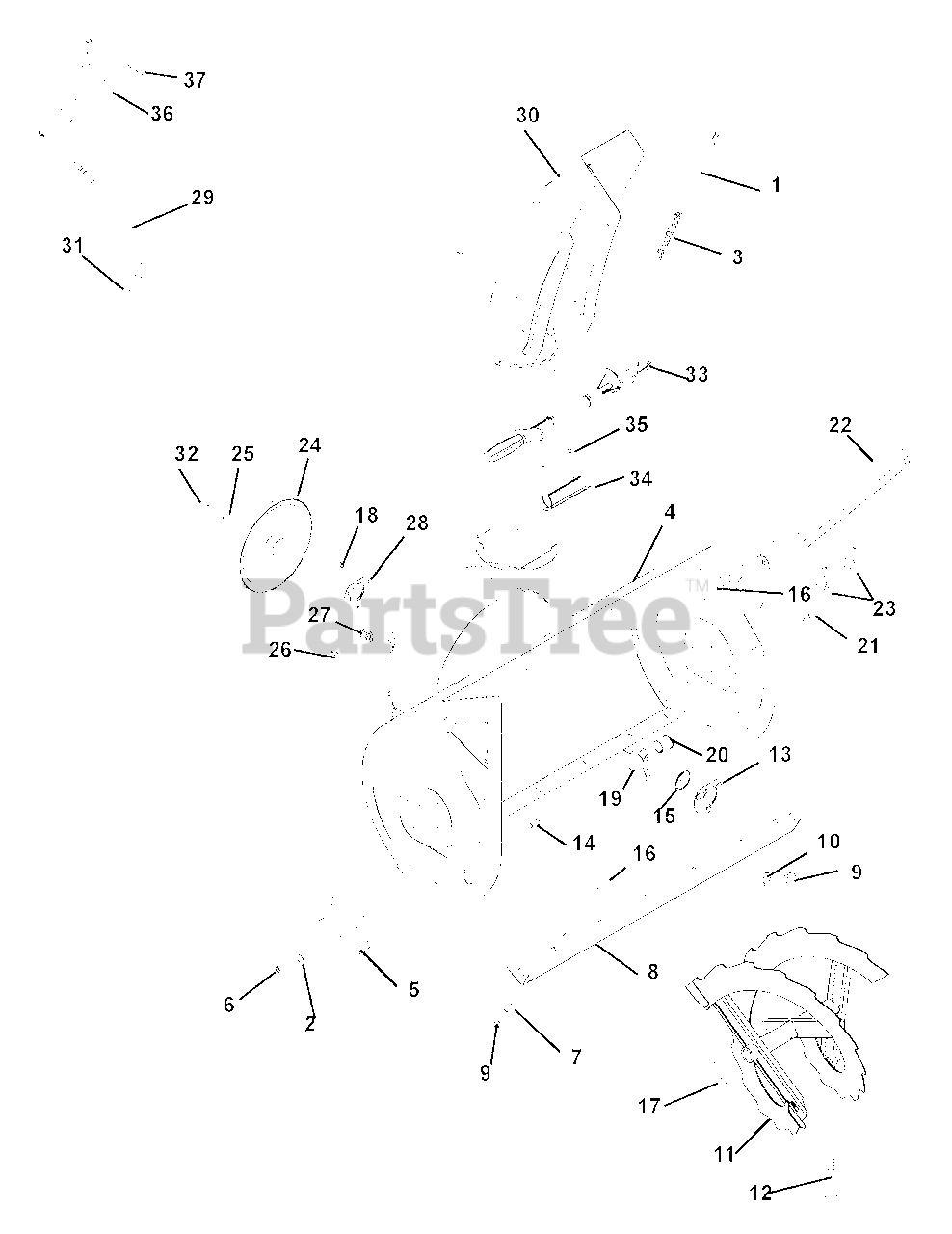

Chute And Auger Parts Diagram

  • Title

1

Ariens 00389000

ROD, DEFLECTOR CAP

$15.99

$

In Stock, only 3 left!

0

2

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

3

Ariens 08300013

SG-COMP .08X.40X6.50 14#/IN

$9.99

$

In Stock, only 1 left!

0

4

Ariens 52600200

HOUSING, BLOWER-26" W/DECAL
(Superseded to 52608400)

Note: (926007, 008, 010)

$

$

Not available

4

Ariens 52600300

HOUSING, BLOWER-28" W/DECAL
(Superseded to 52608500)

Note: (926009, 012)

$457.99

$

In Stock, only 1 left!

0

4

Ariens 52600400

HOUSING, BLOWER-32" W/DECAL
(Superseded to 52608600)

Note: (926011)

$

$

Not available

5

Ariens 02483059

RUNNER, SKID SHOE-1/2" FLANGE

Note: (926007, 008, 010)

$38.99

$

Usually ships in 4-12 days

0

5

Ariens 02483859

SKID SHOE, REVERSIBLE - ORANGE

Note: (926007, 009, 011)

$20.99

$

In Stock, Qty 7

0

6

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

Note: (926008, 010, 012)

$1.99

$

In Stock, Qty 20+

0

7

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

Note: (926011)

$1.99

$

In Stock, Qty 20+

0

8

Ariens 00268659

BLADE, SCRAPER-26"
(Superseded to 04182259)

Note: (926007, 008, 010)

$35.99

$

In Stock, Qty 7

0

8

Ariens 00175059

BLADE, SCRAPER-28"
(Superseded to 04182159)

Note: (926009, 012)

$42.99

$

In Stock, only 2 left!

0

8

Ariens 00174959

BLADE, SCRAPER-32"
(Superseded to 04182059)

$55.99

$

In Stock, only 3 left!

0

9

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (926007, 008, 009, 010, 011)

$1.99

$

In Stock, Qty 20+

0

9

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (926011)

$1.99

$

In Stock, Qty 20+

0

10

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

11

Ariens 52421100

RAKE, LH-26"(1 ID X 15.75 OD)

Note: (15.75" O.D.) (Includes Item 20) (926007, 008, 010)

$290.99

$

Usually ships in 4-12 days

0

11

Ariens 52421200

RAKE, RH-26" (1 ID X 15.75 OD)

Note: (15.75" O.D.) (Includes Item 20) (926007, 008, 010)

$290.99

$

Usually ships in 4-12 days

0

11

Ariens 52421300

RAKE, LH-28" (1 ID X 15.75 OD)

Note: (15.75" O.D.) (Includes Item 20) (926009, 012)

$276.99

$

Usually ships in 4-12 days

0

11

Ariens 52421400

RAKE, RH-28" (1 ID X 15.75 OD)

Note: (15.75" O.D.) (Includes Item 20) (926009, 012)

$276.99

$

Usually ships in 4-12 days

0

11

Ariens 52421500

RAKE, LH-32" (1 ID X 15.75 OD)

Note: (15.75" O.D.) (Includes Item 20) (926011)

$305.99

$

Usually ships in 4-12 days

0

11

Ariens 52421600

RAKE, RH-32" (1 ID X 15.75 OD)

Note: (15.75" O.D.) (Includes Item 20) (926011)

$249.99

$

Usually ships in 4-12 days

0

12

Ariens 51001500

SHEAR BOLT SERVICE ASSEMBLY

Note: (Includes Item 9)

$5.99

$

In Stock, Qty 20+

0

13

Ariens 00301700

BEARING FLANGE

$17.99

$

In Stock, only 2 left!

0

14

Ariens 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

15

Ariens 05409300

BRG-BALL .876 X 1.750 X .50

$37.99

$

In Stock, only 3 left!

0

16

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.99

$

In Stock, Qty 20+

0

16

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

Note: (926011)

$2.99

$

In Stock, Qty 20+

0

17

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.99

$

In Stock, Qty 19

0

18

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 00275100

BUSHING, RAKE SHAFT 1"

$11.99

$

In Stock, Qty 6

0

20

Ariens 05500011

BSHG-FLG, SPLIT NYLINER 1.0"ID
(Superseded to 05500030)

$7.49

$

In Stock, Qty 20+

0

21

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 00262159

CUTTER, DRIFT

$23.99

$

Usually ships in 4-12 days

0

23

Ariens 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

$3.99

$

In Stock, Qty 20+

0

24

Ariens 00258500

PULLEY, 4L W/HUB, .87 X 8.5
(Superseded to 52610800)

$62.99

$

Usually ships in 4-12 days

0

25

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 5

0

26

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.99

$

In Stock, only 3 left!

0

27

Ariens 07053300

NUT-RTNR .375-16X.37

$3.99

$

In Stock, only 3 left!

0

28

Ariens 01014200

BEARING FLANGE

$6.49

$

In Stock, Qty 6

0

29

Ariens 06900018

CABLE, DEFLECTOR
(Superseded to 06900406)

$50.99

$

In Stock, only 2 left!

0

30

Ariens 52602200

CHUTE, DISCHARGE-W/DEFLECTOR

$162.99

$

Usually ships in 4-12 days

0

31

Ariens 06909400

J-CLAMP

$3.99

$

In Stock, only 2 left!

0

32

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.99

$

In Stock, only 1 left!

0

33

Ariens 00170200

DEVICE, SNOW CLEAN OUT

$22.99

$

In Stock, Qty 7

0

34

Ariens 00170300

MOUNT, SNOW CLEAN OUT

$12.99

$

In Stock, only 2 left!

0

35

Ariens 06813600

RVT-POP .187X.45 DOME SS FBF64
(Superseded to 06800140)

$1.49

$

In Stock, only 3 left!

0

36

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

37

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 5

0
