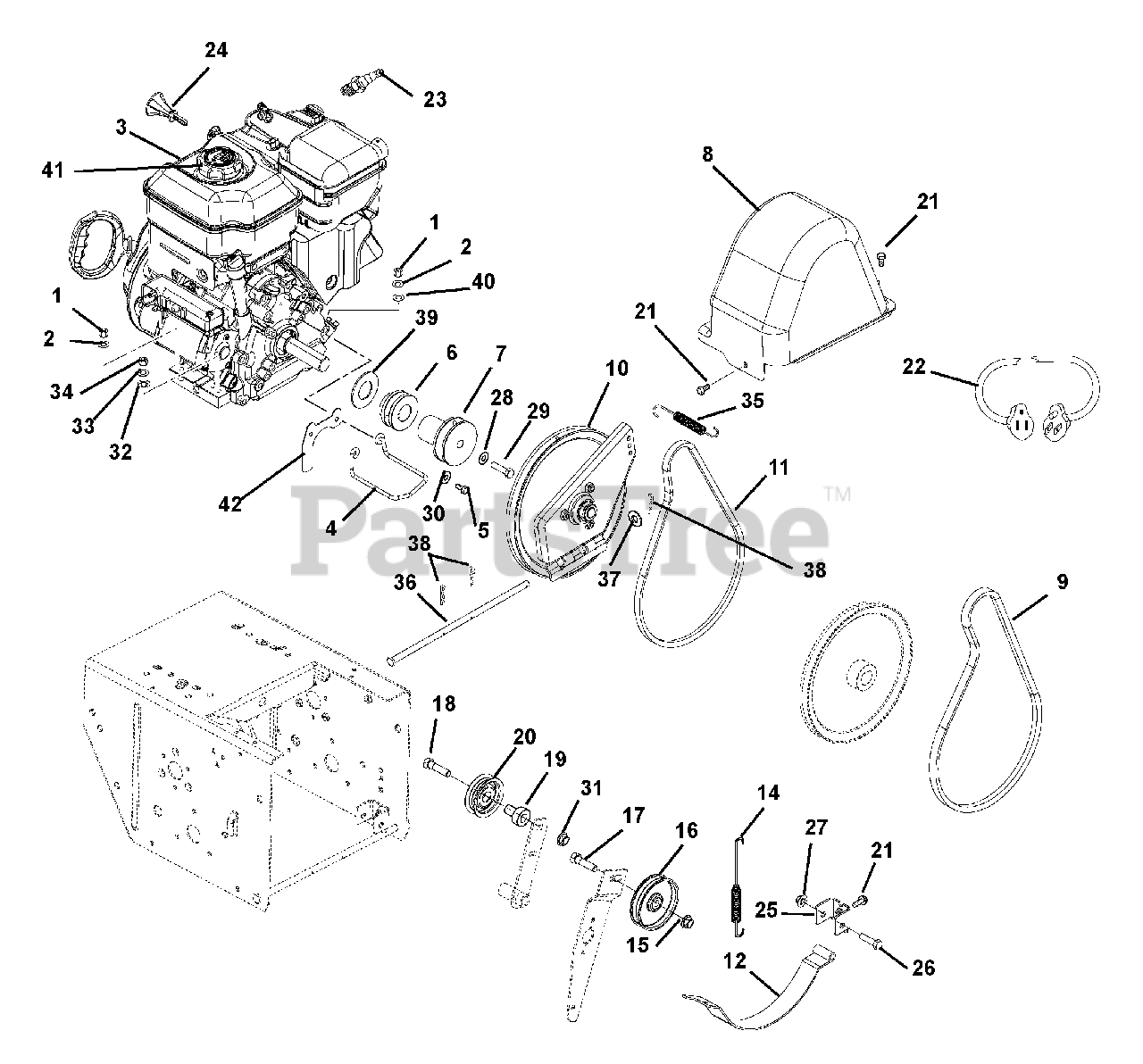

926008 (ST 926 DLE) - Ariens 26" Snow Blower, 9.5hp Briggs & Stratton (SN: 000101 & Above) Engine And Belt Drive Parts Diagram

26" Snow Blower, 9.5hp Briggs & Stratton

Engine And Belt Drive Parts Diagram

  • Title

1

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

2

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 5

0

3

Ariens 08200112

ENGINE,9.5HP 120V PWRBILT SNOW

Note: (007)

$

$

Not available

Ariens 08200113

ENGINE, 9.5HP 120V INTEK SNOW

Note: (008)

$

$

Not available

Ariens 08200114

ENGINE, 11.5HP 120V INTEK SNOW

Note: (009, 010)

$

$

Not available

Ariens 08200015

ENGINE, 5.5HP TEC LH195SP 120V

Note: (011, 012)

$

$

Not available

4

Ariens 00461900

FINGER, BELT
(Superseded to 05273200)

$18.99

$

In Stock, only 1 left!

0

5

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.99

$

In Stock, Qty 5

0

6

Ariens 00397100

SHEAVE, DRIVE
(Superseded to 52616500)

$16.99

$

In Stock, only 2 left!

0

7

Ariens 00397000

SHEAVE, ATTACHMENT

$

$

Not available

8

Ariens 00384100

COVER, BELT

$46.99

$

In Stock, only 3 left!

0

9

Ariens 07200020

V-BELT, 4L-RAW EDGE
(Superseded to 07200623)

$38.99

$

Usually ships in 4-12 days

0

10

Ariens 52602100

PLATE, SWING-ASSY

$

$

Not available

11

Ariens 07200101

V-BELT, 3L-WRAPPED

$22.99

$

In Stock, Qty 8

0

12

Ariens 52601800

ARM, BRAKE ATTACHMENT-W/PAD

$

$

Not available

13

Ariens 00180500

PAD, BRAKE

$10.99

$

In Stock, only 2 left!

0

14

Ariens 08300017

SG-TENS .056X.60X4.40

$6.49

$

In Stock, Qty 13

0

15

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 07300013

IDLER, FLAT-3.00

$35.99

$

In Stock, only 2 left!

0

17

Ariens 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 10

0

18

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 6

0

19

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.99

$

In Stock, Qty 12

0

20

Ariens 02457400

IDLER
(Superseded to 52007000)

$40.99

$

In Stock, only 2 left!

0

21

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 02483100

CORD, ELECTRIC START CORD 120V

$39.99

$

In Stock, only 1 left!

0

23

Ariens 21534100

PLUG, SPARK

$3.99

$

Usually ships in 4-12 days

0

24

Ariens 07500012

KEY, IGNITION PUSH/PULL B&S

$15.99

$

Usually ships in 4-12 days

0

25

Ariens 00430751

PIVOT, BRAKE
(Superseded to 00430700)

$2.49

$

Usually ships in 4-12 days

0

26

Ariens 05957200

@BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.99

$

In Stock, Qty 12

0

27

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 17

0

29

Ariens 05958600

BLT-HEX .38-24X2.0 YWZC
(Superseded to 05902015)

$3.49

$

In Stock, only 1 left!

0

30

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 5

0

31

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 06310500

WSHR-LOCK INT .31 YWZC

$0.99

$

In Stock, only 1 left!

0

33

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

34

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

35

Ariens 08300019

SG-TENS .048X.50X2.8

$6.49

$

In Stock, only 2 left!

0

36

Ariens 00380900

PIN, PIVOT

$42.99

$

In Stock, only 2 left!

0

37

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

38

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

39

Ariens 06443000

WSHR-FL-STL- 1.062X2.0X.134 YZ
(Superseded to 06401203)

$4.99

$

In Stock, Qty 20+

0

40

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

41

Ariens 07500013

CAP, FUEL - BRIGGS

$17.99

$

In Stock, only 2 left!

0

42

Ariens 00486451

GUARD, BELT COVER-BRIGGS

$26.99

$

Usually ships in 4-12 days

0
