926009 (ST 11528 LE) - Ariens 28" Snow Blower, 11.5hp Briggs & Stratton (SN: 002001 & Above) Reduction Drive Parts Diagram

28" Snow Blower, 11.5hp Briggs & Stratton

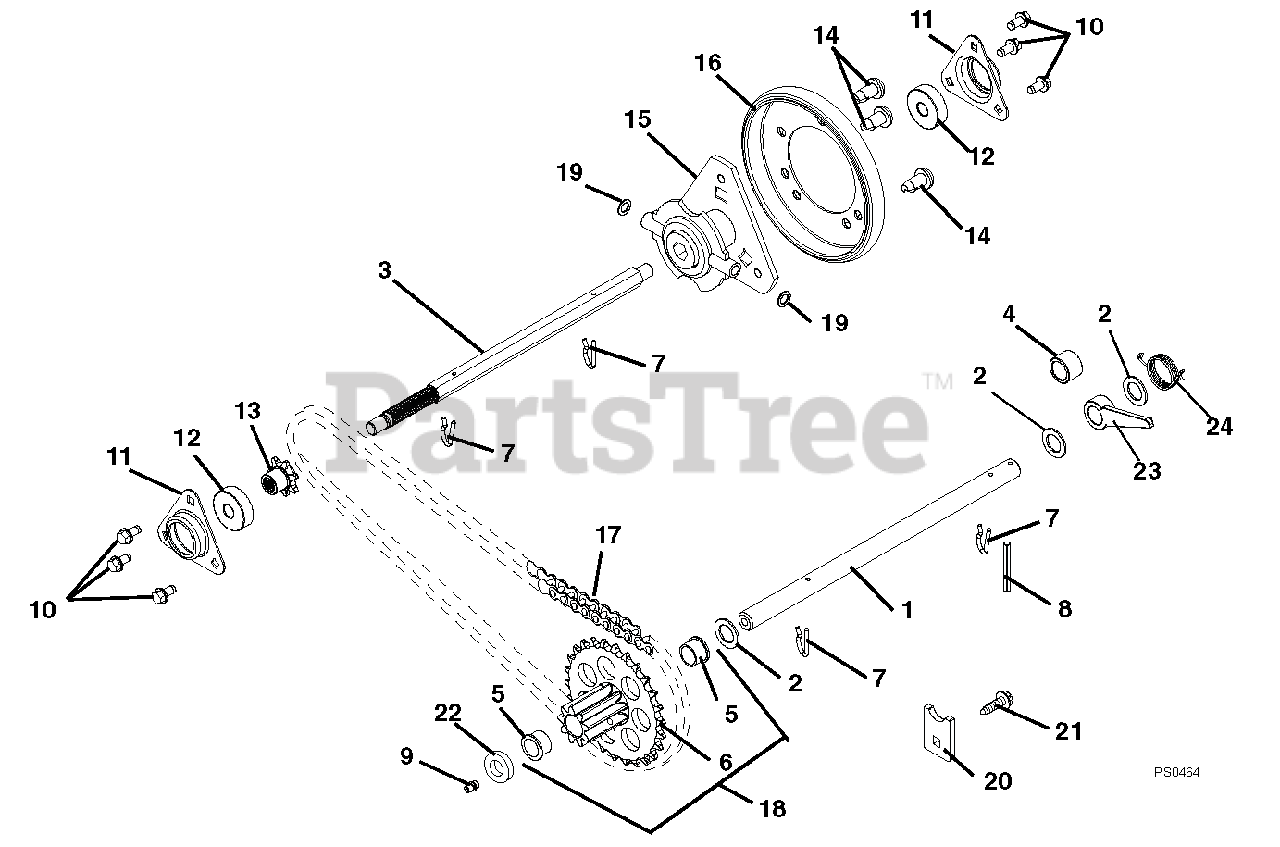

Reduction Drive Parts Diagram

  • Title

1

Ariens 00660500

SHAFT, PINION
(Superseded to 52605900)

$36.99

$

In Stock, Qty 5

0

2

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

Note: (926007, 010, 012, 028)

$0.99

$

In Stock, Qty 11

0

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

Note: (926009, 011)

$0.99

$

In Stock, Qty 11

0

3

Ariens 00372900

SHAFT, HEX-W/SPLINE

$131.99

$

In Stock, only 1 left!

0

4

Ariens 05500029

SPACER, .635X.880X.611

Note: (926007, 010, 012, 028)

$2.99

$

In Stock, only 2 left!

0

5

Ariens 05500111

BSHG-FLG .625X.750X.500X.875

$2.49

$

In Stock, Qty 20+

0

6

Ariens 00190600

PINION & SPROCKET

$

$

Not available

7

Ariens 06714500

PIN, SPRING CLIP

$2.99

$

In Stock, Qty 19

0

8

Ariens 05800900

PIN-ROLL .125X1.00

$0.99

$

In Stock, only 4 left!

0

9

Ariens 07061300

ZERK,FITTING .25X.125 DRIVE IN

$4.99

$

In Stock, Qty 11

0

10

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 00383000

FLANGE, BEARING

$13.99

$

In Stock, only 2 left!

0

12

Ariens 05435200

BRG-BALL .437X1.375X.437

$10.99

$

In Stock, Qty 20+

0

13

Ariens 00385800

SPROCKET, PINION 7T W/SPLINE

$9.99

$

In Stock, Qty 6

0

14

Ariens 07400009

SCR-TAP SERRDHDTX .31-18X.50BP
(Superseded to 07411500)

$1.99

$

In Stock, Qty 20+

0

15

Ariens 00383100

CARRIER, DRIVE DISK

$120.99

$

In Stock, Qty 5

0

16

Ariens 00170800

FRICTION, DISC
(Superseded to 09475300)

$36.99

$

In Stock, Qty 8

0

17

Ariens 02466200

CHAIN - #41, 32 PITCHES

$8.49

$

In Stock, only 1 left!

0

18

Ariens 52601500

PINION & SPROCKET W/BUSHINGS

$46.99

$

In Stock, only 2 left!

0

19

Ariens 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 00503500

TAB, ANTI ROTATION

$5.49

$

In Stock, only 2 left!

0

21

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 05500035

BSHG-SLV, .635X.880X.305

$3.99

$

In Stock, only 2 left!

0

23

Ariens 00391200

LEVER, LOCK ARM

Note: (926009, 011)

$19.99

$

In Stock, only 2 left!

0

24

Ariens 00391300

SPRING, TORSION

Note: (926009, 011)

$3.99

$

In Stock, only 3 left!

0
