926010 (ST 11526 DLE) - Ariens 26" Snow Blower, 11.5hp Briggs & Stratton (SN: 000501 & Above) Gear Case Cast Iron Parts Diagram

26" Snow Blower, 11.5hp Briggs & Stratton

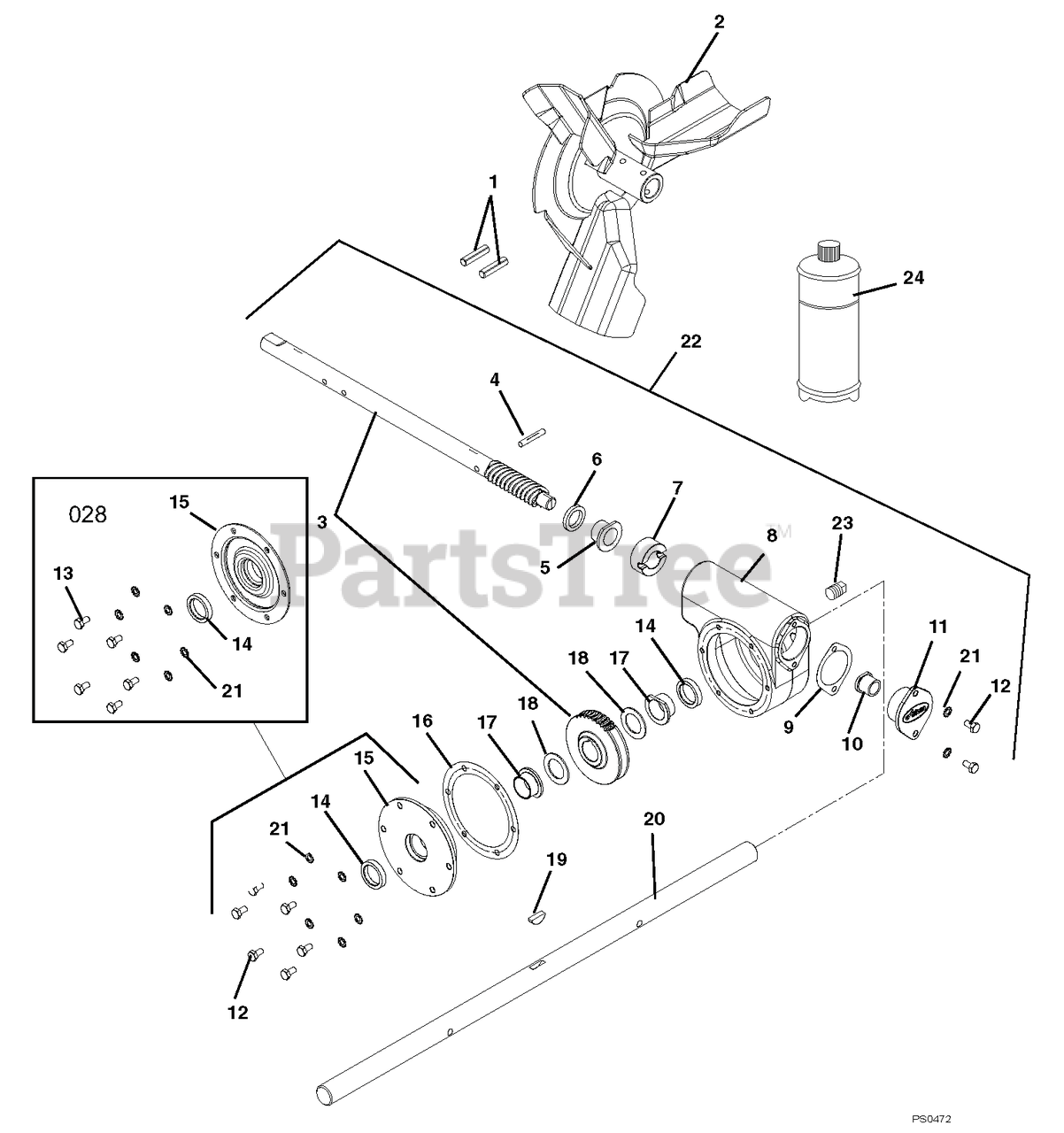

Gear Case Cast Iron Parts Diagram

  • Title

1

Ariens 05803700

PIN-ROLL .250X1.75

$0.99

$

In Stock, Qty 11

0

2

Ariens 00485551

IMPELLER, 3 BLADE-14"

$104.99

$

In Stock, Qty 10

0

3

Ariens 52419600

ASSY, WORM SHAFT & GEAR

$166.99

$

In Stock, Qty 6

0

4

Ariens 05806800

PIN-GRV .250X1.50 TP E

$3.99

$

In Stock, only 2 left!

0

5

Ariens 05500008

BSHG-FLG .876 X 1.500 X .750

$10.99

$

In Stock, only 3 left!

0

6

Ariens 05600002

SEAL-OIL .875X1.25X.188

$8.49

$

In Stock, Qty 11

0

7

Ariens 00255100

THRUST COLLAR, .875" ID

$11.99

$

In Stock, Qty 7

0

8

Ariens 00388200

GEARCASE, CAST IRON-MACHINED

$

$

Not available

9

Ariens 00425200

GASKET, FRONT - CAST IRON

$3.99

$

In Stock, only 3 left!

0

10

Ariens 05500007

BSHG-FLG .629 X 1.000 X .750

$10.99

$

In Stock, only 1 left!

0

11

Ariens 00388400

COVER, FRONT-CI GEARCASE

$36.99

$

Usually ships in 4-12 days

0

12

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

Note: (926010, 012)

$0.99

$

In Stock, only 3 left!

0

12

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

Note: (926028)

$0.99

$

In Stock, only 3 left!

0

13

Ariens 05947600

BLT-HEX .25-20X.38 YWZC GR5

Note: (926028)

$2.49

$

Usually ships in 4-12 days

0

14

Ariens 05618800

SEAL-OIL 1.000X1.375X.250

$12.99

$

In Stock, only 4 left!

0

15

Ariens 00393500

COVER, SIDE-CI GEARCASE

Note: (926010, 012)

$

$

Not available

15

Ariens 03298500

COVER, CI GEARCASE W/GASKET

Note: (926028)

$50.99

$

Usually ships in 4-12 days

0

16

Ariens 00425100

GASKET, SIDE - CAST IRON

Note: (926010, 012)

$6.49

$

Usually ships in 4-12 days

0

17

Ariens 05520500

BSHG-FLG 1.003X1.5X.625

$10.99

$

In Stock, Qty 7

0

18

Ariens 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$3.49

$

In Stock, Qty 20+

0

19

Ariens 06608800

KEY-WDRF .25X.875 HRD #A

$3.99

$

In Stock, only 2 left!

0

20

Ariens 00257500

SHAFT, RAKE-26"

Note: (926010)

$127.99

$

Usually ships in 4-12 days

0

20

Ariens 00275000

SHAFT, RAKE-28"

Note: (926012)

$140.99

$

Usually ships in 4-12 days

0

20

Ariens 03392500

SHAFT, RAKE-32"

Note: (926028)

$109.99

$

Usually ships in 4-12 days

0

21

Ariens 06306800

@WSHR-LK-EXT.262X.502X.026YWZC
(Superseded to 06300118)

$0.99

$

Usually ships in 4-12 days

0

22

Ariens 52600700

GEAR CASE, CAST IRON-26"

Note: (926010)

$

$

Not available

22

Ariens 52600800

GEAR CASE, CAST IRON-28"

Note: (926012)

$415.99

$

Usually ships in 4-12 days

0

22

Ariens 52607200

GEAR CASE, 32" CAST IRON

Note: (926028)

$380.99

$

Usually ships in 4-12 days

0

23

Ariens 00150900

PIPE PLUG, 1/4 NPT

$2.49

$

Usually ships in 4-12 days

0

24

Ariens 00008000

ARIENS 16 OZ.BOTTLE OF L2 LUBE
(Superseded to 00068800)

Note: (8 OZ. CAPACITY)

$18.99

$

In Stock, Qty 20+

0
