926012 (ST 1328 DLE) - Ariens 28" Sno-Thro Snow Blower, 13hp Briggs & Stratton (SN: 001001 & Above) Wheels And Axles Parts Diagram

28" Sno-Thro Snow Blower, 13hp Briggs & Stratton

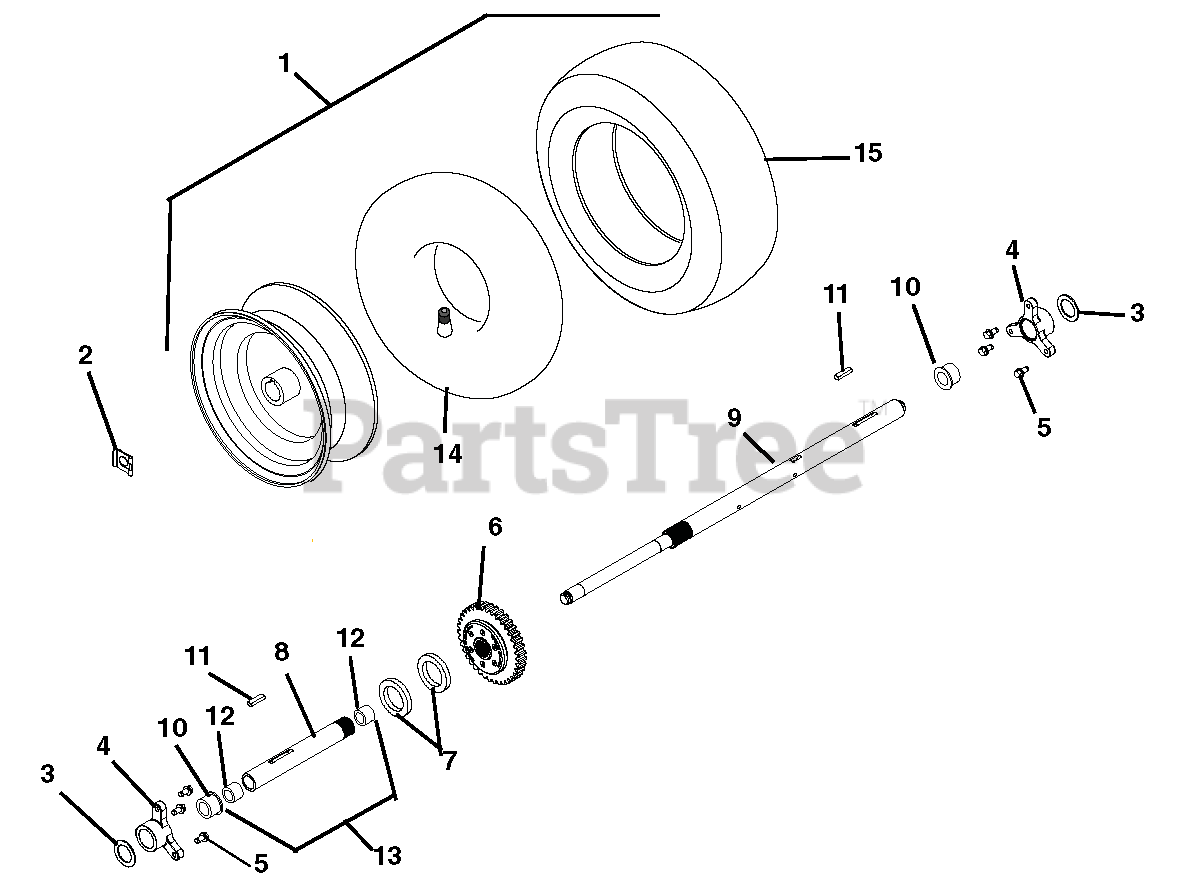

Wheels And Axles Parts Diagram

  • Title

1

Ariens 07100229

TIRE/WHEEL,RH 16X4.8-8 DIFF T2
(Superseded to 07101201)

Note: (010, 012)

$125.99

$

In Stock, only 1 left!

0

Ariens 07100230

TIRE/WHEEL,LH 16X4.8-8 DIFF T2
(Superseded to 07101202)

Note: (010, 012)

$125.99

$

Usually ships in 4-12 days

0

Ariens 07100231

TIRE/WHEEL, RH 16X6.50-8 DIFF
(Superseded to 07101139)

Note: (028)

$151.99

$

Usually ships in 4-12 days

0

Ariens 07100232

TIRE/WHEEL, LH 16X6.50-8 DIFF
(Superseded to 07101140)

Note: (028)

$151.99

$

In Stock, only 2 left!

0

2

Ariens 05700001

CLIP, SNAP .625 DIA

$2.99

$

In Stock, Qty 20+

0

3

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.99

$

In Stock, Qty 15

0

4

Ariens 00275100

BUSHING, RAKE SHAFT 1"

$11.99

$

In Stock, Qty 6

0

5

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 00866000

DIFFERENTIAL, AUTOMATIC
(Superseded to 05013000)

$201.99

$

In Stock, Qty 7

0

7

Ariens 06443000

WSHR-FL-STL- 1.062X2.0X.134 YZ
(Superseded to 06401203)

$4.99

$

In Stock, Qty 20+

0

8

Ariens 00660800

AXLE, SHORT-PRO AUTO DIFF
(Superseded to 52604100)

$55.99

$

In Stock, only 2 left!

0

9

Ariens 00660900

AXLE, LONG-PRO AUTO DIFF

$98.99

$

In Stock, only 2 left!

0

10

Ariens 05500030

BSHG-FLG SPLIT NYLINER 1.0" HP

$7.49

$

In Stock, Qty 20+

0

11

Ariens 06600002

KEY-RECT .25X.188X1.00

$1.49

$

In Stock, Qty 11

0

12

Ariens 05500023

BSHG-SLV .706X.764X.75 BRZ

$3.99

$

In Stock, Qty 20+

0

13

Ariens 52604100

AXLE, SHORT-AUTO W/BUSHINGS

Note: (Includes 8 and 12)

$55.99

$

In Stock, only 2 left!

0

14

Ariens 07103700

TUBE

Note: (010, 012)

$15.99

$

In Stock, only 2 left!

0

Ariens 07108700

TUBE

Note: (028)

$36.99

$

Usually ships in 4-12 days

0

15

Ariens 07100727

TIRE, 4.80-8 K478

Note: (010, 012)

$75.99

$

Usually ships in 4-12 days

0

Ariens 07100728

TIRE, 16X6.50-8 K478

Note: (028)

$87.99

$

Usually ships in 4-12 days

0
