926017 (ST 9526 DLE) - Ariens 26" Snow Blower, 9.5hp Tecumseh (SN: 000101 - 002000) Handlebars And Controls Parts Diagram

26" Snow Blower, 9.5hp Tecumseh

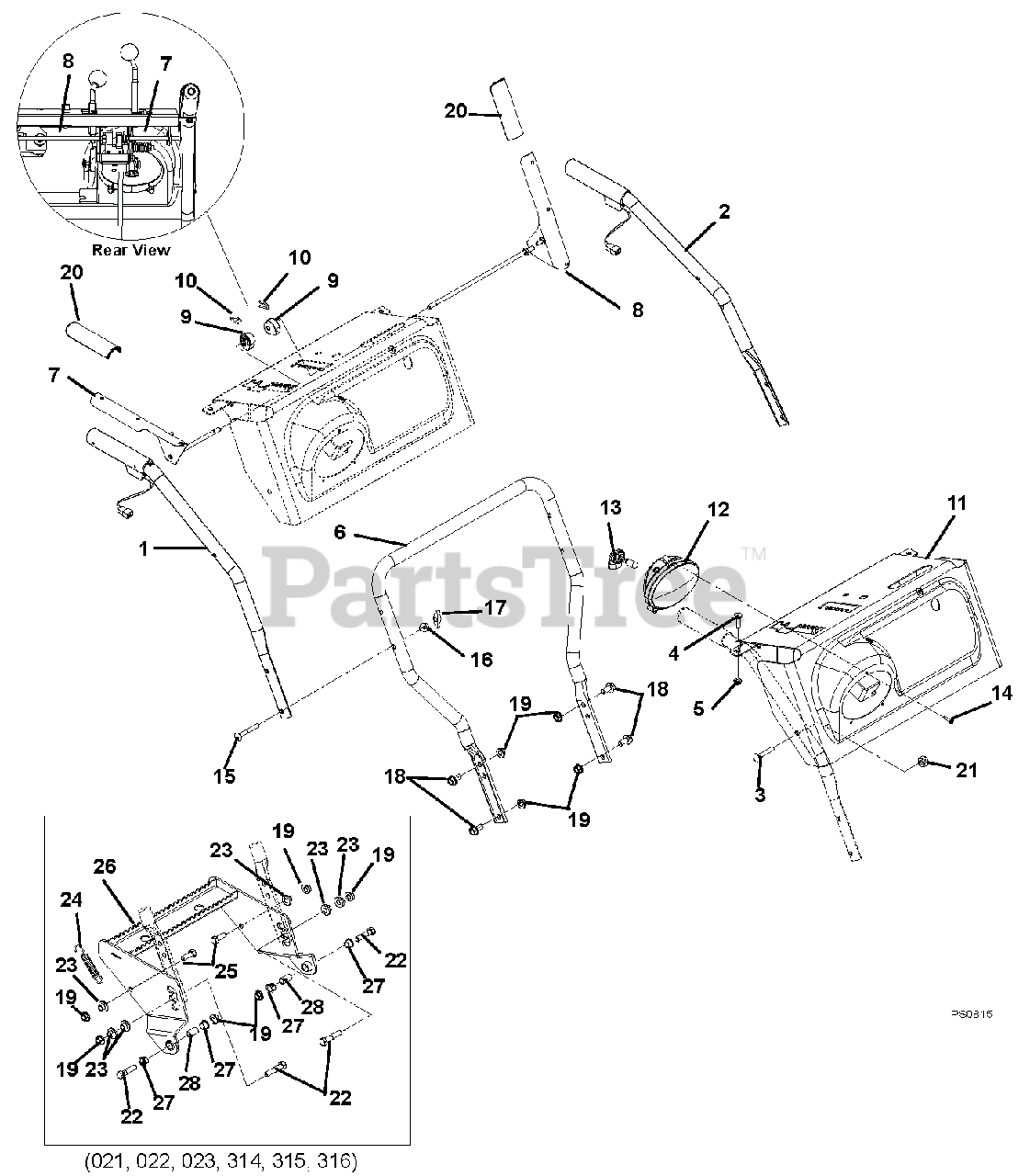

Handlebars And Controls Parts Diagram

  • Title

1

Ariens 52602000

HANDLEBAR, UPPER RH-W/HW

$159.99

$

Usually ships in 4-12 days

0

2

Ariens 52601900

HANDLEBAR, UPPER LH-W/HW

$159.99

$

Usually ships in 4-12 days

0

3

Ariens 06220200

@BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

$3.49

$

In Stock, Qty 10

0

4

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.99

$

In Stock, only 2 left!

0

5

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 00373251

HANDLEBAR, LOWER

$102.99

$

Usually ships in 4-12 days

0

7

Ariens 00393051

LEVER, RH-ATTACHMENT

$65.99

$

In Stock, only 2 left!

0

8

Ariens 00393151

LEVER, LH-TRACTION

$75.99

$

In Stock, only 2 left!

0

9

Ariens 02492100

CAM, INTERLOCK
(Superseded to 03888100)

$8.49

$

In Stock, only 2 left!

0

10

Ariens 06714500

PIN, SPRING CLIP

$2.99

$

In Stock, Qty 19

0

11

Ariens 52603700

PANEL-W/CONTROL HW DECAL
(Superseded to 52100400)

Note: (016, 017, 021, 022, 302, 311, 314, 315)

$209.99

$

Usually ships in 4-12 days

0

11

Ariens 52603800

PANEL-W/CONTROL 12V DECAL

Note: (023, 312, 313, 316, 500, 501)

$

$

Not available

11

Ariens 52603900

PANEL-W/CONTROL BRUSH DECAL

Note: (502)

$

$

Not available

12

Ariens 00432500

LIGHT, HALOGEN ASSY.

$23.99

$

In Stock, only 2 left!

0

13

Ariens 00432600

BULB, LIGHT-HALOGEN 20W

$17.99

$

In Stock, only 3 left!

0

14

Ariens 07416700

SCR-TAP 10-16X.75 HI-LO PPH

$0.99

$

Usually ships in 4-12 days

0

15

Ariens 06221600

@BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$3.49

$

Usually ships in 4-12 days

0

16

Ariens 07500005

SPACER, HANDLEBAR

$1.49

$

In Stock, Qty 5

0

17

Ariens 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

$3.99

$

In Stock, Qty 20+

0

18

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.99

$

In Stock, only 3 left!

0

18

501, 502)

Note: 501, 502)

$

$

Not available

18

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

Note: (021, 022, 023, 314, 315, 316)

$1.99

$

In Stock, only 3 left!

0

19

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

Note: (016, 017, 310, 311, 312, 313, 500, 501, 502)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

Note: (021, 022, 023, 314, 315, 316)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 00384500

GRIP, CLUTCH LEVER, LH AND RH

$2.49

$

In Stock, Qty 7

0

21

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

22

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

Note: (021, 022, 023, 314, 315, 316)

$1.99

$

In Stock, only 4 left!

0

23

Ariens 05500435

BSHG-FLG .385X.500X.875X.406

Note: (021, 022, 023, 314, 315, 316)

$2.49

$

In Stock, Qty 20+

0

24

Ariens 08305800

SG-TENS .080X.470X4.88 WLD 30

Note: (021, 022, 023, 314, 315, 316)

$15.99

$

Usually ships in 4-12 days

0

25

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

Note: (021, 022, 023, 314, 315, 316)

$1.99

$

In Stock, Qty 20+

0

26

Ariens 00670051

ADJUSTER, HEIGHT-FOOT

Note: (021, 022, 023, 314, 315, 316)

$

$

Not available

27

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

Note: (021, 022, 023, 314, 315, 316)

$2.99

$

In Stock, Qty 14

0

28

Ariens 02968100

SPACER, TUBE .384X.500X.860

Note: (021, 022, 023, 314, 315, 316)

$

$

Not available
