926038 (PRO 28) - Ariens Professional 28" Snow Blower, Briggs & Stratton (SN: 000101 - 002600)

Professional 28" Snow Blower, Briggs & Stratton

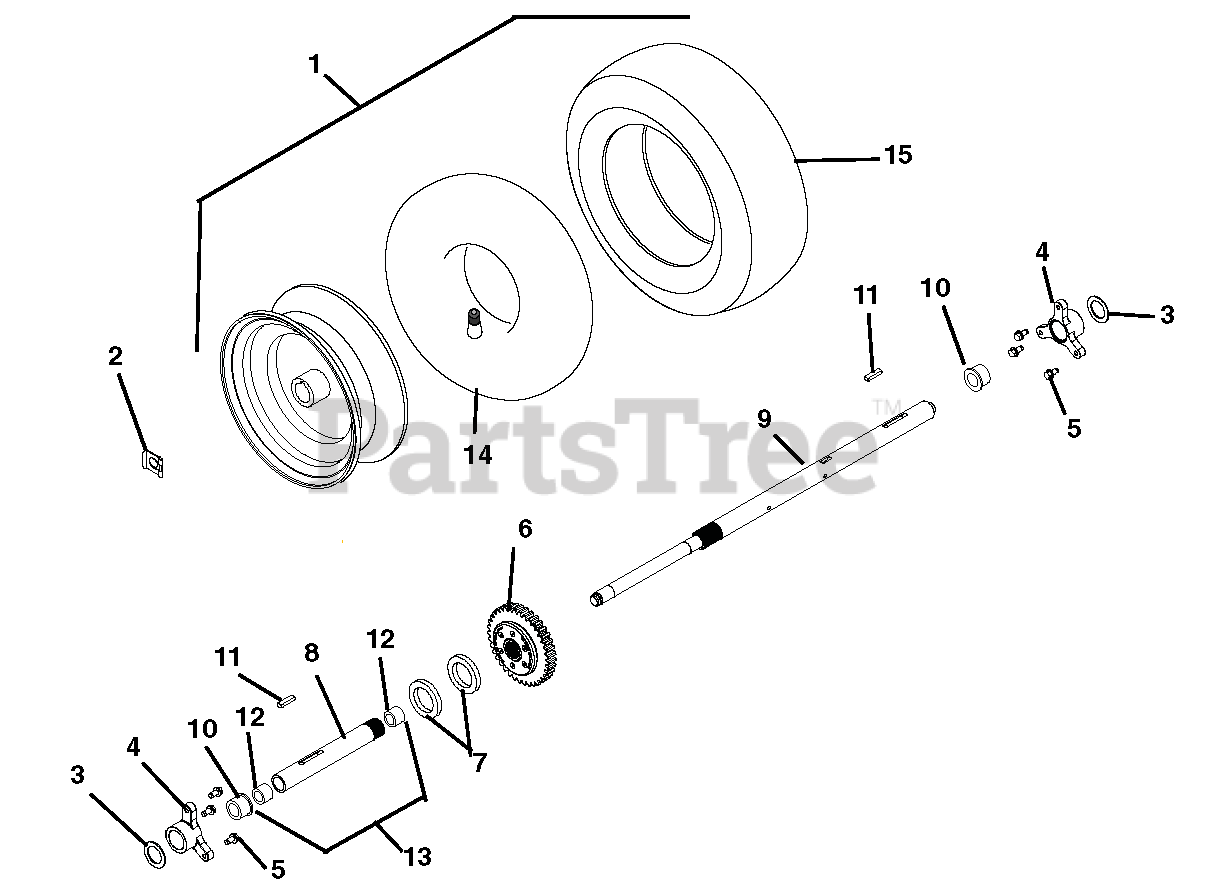

926038 (PRO 28) - Ariens Professional 28" Snow Blower, Briggs & Stratton (SN: 000101 - 002600) > Parts Diagrams (12) > Wheels And Axles

  • Title
07100229

1

TIRE/WHEEL,RH 16X4.8-8 DIFF T2

Part# 07100229

Note: (Includes 14-15) (037, 038, 317)

OEM Warranty Repair Part for Ariens

Not available

07100230

TIRE/WHEEL,LH 16X4.8-8 DIFF T2

Part# 07100230

Note: (Includes 14-15) (037, 038, 317)

OEM Warranty Repair Part for Ariens

Not available

07100231

TIRE/WHEEL, RH 16X6.50-8 DIFF

Part# 07100231

Note: (Includes 14-15) (039, 040, 044, 506, 507)

OEM Warranty Repair Part for Ariens

Not available

07100232

TIRE/WHEEL, LH 16X6.50-8 DIFF

Part# 07100232

Note: (Includes 14-15) (039, 040, 044, 506, 507)

OEM Warranty Repair Part for Ariens

Not available

05700001

2

CLIP, SNAP .625 DIA

Part# 05700001

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

06436300

3

WSHR-FL-STL 1.010X1.505X.062YZ

Part# 06436300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

00275100

4

BUSHING, RAKE SHAFT 1"

Part# 00275100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

07400034

5

SCR-TAP .25-20X.50 HWH TR YWZ

Part# 07400034

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

00866000

6

DIFFERENTIAL, AUTOMATIC

Part# 00866000 (Superseded to 05013000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $181.39

06443000

7

WSHR-FL-STL- 1.062X2.0X.134 YZ

Part# 06443000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

00660800

8

AXLE, SHORT-PRO AUTO DIFF

Part# 00660800 (Superseded to 52604100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $49.14

00660900

9

AXLE, LONG-PRO AUTO DIFF

Part# 00660900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $73.73

05500030

10

BSHG-FLG SPLIT NYLINER 1.0" HP

Part# 05500030

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

06600002

11

KEY-RECT .25X.188X1.00

Part# 06600002

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05500023

12

BSHG-SLV .706X.764X.75 BRZ

Part# 05500023

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

52604100

13

AXLE, SHORT-AUTO W/BUSHINGS

Part# 52604100

Note: (Includes 8 and 12)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $49.14

07103700

14

TUBE

Part# 07103700

Note: (037, 038, 317)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $16.71

07108700

TUBE

Part# 07108700

Note: (039, 040, 044, 506, 507)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $70.97

07100727

15

TIRE, 4.80-8 K478

Part# 07100727

Note: (037, 038, 317)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $46.90

07100728

TIRE, 16X6.50-8 K478

Part# 07100728

Note: (039, 040, 044, 506, 507)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $55.84
