926039 (PRO 32) - Ariens Professional 32" Snow Blower, Briggs & Stratton (SN: 000101 - 001200) Auger And Chute Parts Diagram

Professional 32" Snow Blower, Briggs & Stratton

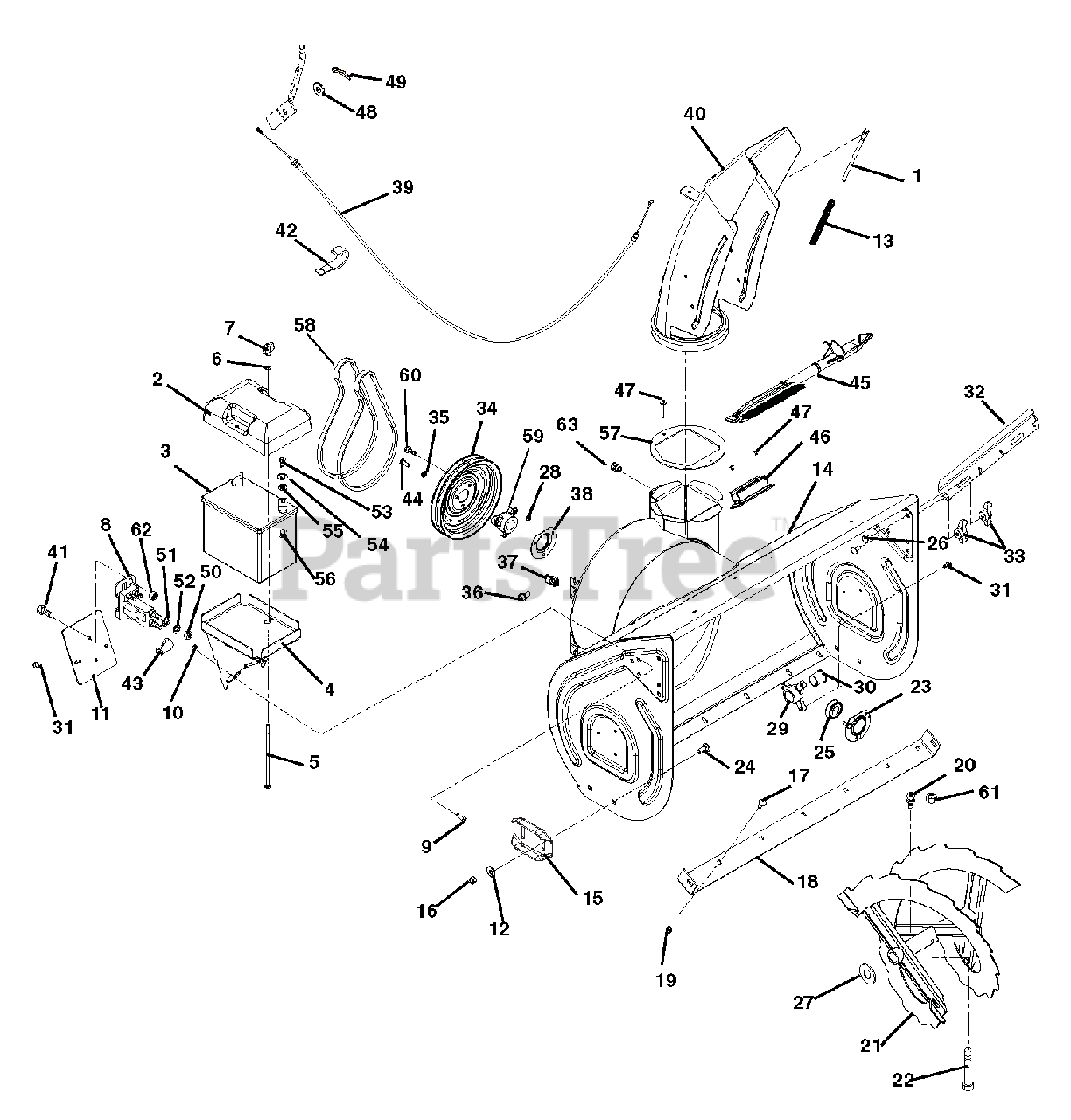

Auger And Chute Parts Diagram

  • Title
1

Ariens 00389000

ROD, DEFLECTOR CAP

$20.07

$

In Stock, Qty 10

0

2

Ariens 04912900

COVER, BATTERY

Note: (926506, 507, 508)

$9.45

$

In Stock, Qty 8

0

3

Battery Recommend 240 Minimum CCA at 0° F. Size U1R or U1L (506, 507, 508)

Note: (926506, 507, 508)

$

$

Not available

4

Ariens 52422200

TRAY, BATTERY-W/CLIPS

Note: (Includes Item 10) (926506, 507, 508)

$72.73

$

Usually ships in 4-12 days

0

5

Ariens 06220400

@BLT-RDHDSQNK .25-20X7.00 G2YZ
(Superseded to 06200229)

Note: (926506, 507, 508)

$4.30

$

In Stock, only 2 left!

0

6

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

Note: (926506, 507, 508)

$1.96

$

In Stock, Qty 20+

0

7

Ariens 07500104

KNOB, WING - .25-20 UNC

Note: (926506, 507, 508)

$3.47

$

In Stock, only 2 left!

0

8

Ariens 03679000

SOLENOID
(Superseded to 59223400)

Note: (926506, 507, 508)

$54.28

$

In Stock, Qty 20+

0

9

Ariens 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

Note: (926506, 507, 508)

$1.96

$

In Stock, Qty 20+

0

10

Ariens 07009000

NUT-RTNR .25-20X.56

Note: (926506, 507, 508)

$2.24

$

In Stock, Qty 20+

0

11

Ariens 02484459

COVER, SOLENOID

Note: (926506, 507, 508)

$17.55

$

Usually ships in 4-12 days

0

12

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$2.24

$

In Stock, Qty 20+

0

13

Ariens 08300013

SG-COMP .08X.40X6.50 14#/IN

$8.89

$

In Stock, only 3 left!

0

14

Ariens 52607800

BL0WER HOUSING W/DECAL 26"

Note: (926037, 041, 317, 318)

$317.48

$

Usually ships in 4-12 days

0

14

Ariens 52607900

BLOWER HOUSING W/DECAL 28"

Note: (926038, 042)

$380.98

$

Usually ships in 4-12 days

0

14

Ariens 52608000

BLOWER HOUSING W/DECAL 32"

Note: (926039, 043)

$380.98

$

Usually ships in 4-12 days

0

14

Ariens 52608100

BLOWER HOUSING W/DECAL 32" BAT

Note: (926506, 508)

$380.98

$

Usually ships in 4-12 days

0

14

Ariens 52608200

BLOWER HOUSING W/DECAL 36"

Note: (926040)

$380.98

$

Usually ships in 4-12 days

0

14

Ariens 52608300

BLOWER HOUSING W/DECAL 36" BAT

Note: (926507)

$

$

Not available

15

Ariens 02483859

SKID SHOE, REVERSIBLE - ORANGE

$17.83

$

In Stock, Qty 20+

0

16

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$2.24

$

In Stock, Qty 20+

0

17

Ariens 06200120

BLT,RDSHHDSQSHNK .31-18X.62 YZ
(Superseded to 06200209)

Note: (926037, 038, 041, 042, 317, 318)

$2.80

$

In Stock, Qty 20+

0

17

Ariens 06200120

BLT,RDSHHDSQSHNK .31-18X.62 YZ
(Superseded to 06200209)

Note: (926039, 040, 043, 506, 507, 508)

$2.80

$

In Stock, Qty 20+

0

18

Ariens 00268659

BLADE, SCRAPER-26"
(Superseded to 04182259)

Note: (926037, 041, 317, 318)

$24.54

$

In Stock, only 1 left!

0

18

Ariens 00175059

BLADE, SCRAPER-28"
(Superseded to 04182159)

Note: (926038, 042)

$27.11

$

In Stock, Qty 20+

0

18

Ariens 00174959

BLADE, SCRAPER-32"
(Superseded to 04182059)

Note: (926039, 043, 506, 508)

$36.84

$

In Stock, only 4 left!

0

18

Ariens 00268859

BLADE, SCRAPER-36"
(Superseded to 04181659)

Note: (926040, 507)

$36.84

$

In Stock, only 4 left!

0

19

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (926037, 038, 041, 042, 317, 318)

$2.80

$

In Stock, Qty 20+

0

19

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (926039, 040, 043, 506, 507, 508)

$2.80

$

In Stock, Qty 20+

0

20

Ariens 07061300

ZERK,FITTING .25X.125 DRIVE IN

$3.63

$

In Stock, Qty 8

0

21

Ariens 52606200

RAKE, LH-26"(1 ID X 15.75 OD)

Note: (15.75" O.D.) (Includes Item 20) (926037, 041, 317, 318)

$148.42

$

Usually ships in 4-12 days

0

21

Ariens 52606300

RAKE, RH-26"(1 ID X 15.75 OD)

Note: (15.75" O.D.) (Includes Item 20) (926037, 041, 317, 318)

$152.55

$

Usually ships in 4-12 days

0

21

Ariens 52606400

RAKE, LH-28"(1 ID X 15.75 OD)

Note: (15.75" O.D.) (Includes Item 20) (926038, 042)

$152.55

$

Usually ships in 4-12 days

0

21

Ariens 52606500

RAKE, RH-28"(1 ID X 15.75 OD)

Note: (15.75" O.D.) (Includes Item 20) (038, 042)

$152.55

$

Usually ships in 4-12 days

0

21

Ariens 52606600

RAKE, LH-32"(1 ID X 15.75 OD)

Note: (15.75" O.D.) (Includes Item 20) (926039, 043, 506, 508)

$164.29

$

Usually ships in 4-12 days

0

21

Ariens 52606700

RAKE, RH-32"(1 ID X 15.75 OD)

Note: (15.75" O.D.) (Includes Item 20) (926039, 043, 506, 508)

$164.29

$

Usually ships in 4-12 days

0

21

Ariens 52606800

RAKE, LH-36" (1 ID X 15.75 OD)

Note: (15.75" O.D.) (Includes Item 20) (926040, 507)

$180.73

$

Usually ships in 4-12 days

0

21

Ariens 52606900

RAKE, RH-36"(1 ID X 15.75 OD)

Note: (15.75" O.D.) (Includes Item 20) (926040, 507)

$164.29

$

Usually ships in 4-12 days

0

22

Ariens 52100100

SHEAR BOLT SERVICE ASSEMBLY

Note: (Includes Item 61)

$4.42

$

In Stock, Qty 20+

0

23

Ariens 00428700

BEARING FLANGE

$18.39

$

In Stock, only 2 left!

0

24

Ariens 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$2.80

$

In Stock, Qty 20+

0

25

Ariens 05409300

BRG-BALL .876 X 1.750 X .50

$39.07

$

In Stock, Qty 11

0

26

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.80

$

In Stock, Qty 20+

0

27

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$2.52

$

In Stock, Qty 20+

0

28

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$2.24

$

In Stock, Qty 20+

0

29

Ariens 00275100

BUSHING, RAKE SHAFT 1"

$8.89

$

In Stock, only 2 left!

0

30

Ariens 05500011

BSHG-FLG, SPLIT NYLINER 1.0"ID
(Superseded to 05500030)

$5.53

$

In Stock, Qty 18

0

31

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (926037, 038, 039, 040, 041, 042, 043, 317, 318)

$2.24

$

In Stock, Qty 20+

0

31

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (926506, 507, 508)

$2.24

$

In Stock, Qty 20+

0

32

Ariens 00262159

CUTTER, DRIFT

$22.30

$

Usually ships in 4-12 days

0

33

Ariens 07500105

KNOB,WING .31-18 UNC NYL/TALC

$3.52

$

In Stock, Qty 7

0

34

Ariens 00268751

PULLEY, SPIN FORM DUAL GROOVE

$68.14

$

In Stock, only 1 left!

0

35

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$2.24

$

In Stock, Qty 20+

0

36

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$2.80

$

In Stock, Qty 20+

0

37

Ariens 07053300

NUT-RTNR .375-16X.37

$3.63

$

In Stock, Qty 10

0

38

Ariens 01014200

BEARING FLANGE

$12.24

$

In Stock, Qty 11

0

39

Ariens 06900406

CABLE, DEFLECTOR-COATED

$44.66

$

In Stock, Qty 20+

0

40

Ariens 52602200

CHUTE, DISCHARGE-W/DEFLECTOR

$148.42

$

Usually ships in 4-12 days

0

41

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

Note: (926506, 507, 508)

$1.96

$

In Stock, Qty 20+

0

42

Ariens 06909400

J-CLAMP

$3.30

$

Usually ships in 4-12 days

0

43

Ariens 07533200

BOOT, EYELET TERMINAL

Note: (926506, 507, 508)

$3.30

$

In Stock, Qty 20+

0

44

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$2.24

$

In Stock, Qty 20+

0

45

Ariens 03901400

DEVICE, SNOW CLEAN OUT W/BRUSH

$29.35

$

Usually ships in 4-12 days

0

46

Ariens 00170300

MOUNT, SNOW CLEAN OUT

$11.68

$

In Stock, only 4 left!

0

47

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$1.96

$

In Stock, Qty 5

0

48

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$1.96

$

In Stock, Qty 20+

0

49

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$1.96

$

In Stock, only 4 left!

0

50

Ariens 06536700

NUT-JAM .31-24 YWZC
(Superseded to 06500923)

Note: (926506, 507, 508)

$1.96

$

In Stock, Qty 13

0

51

Ariens 06310500

WSHR-LOCK INT .31 YWZC

Note: (926506, 507, 508)

$1.96

$

In Stock, Qty 8

0

52

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: (926506, 507, 508)

$2.52

$

In Stock, Qty 20+

0

53

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

Note: (926506, 507, 508)

$1.79

$

In Stock, Qty 13

0

54

Ariens 06439500

WSHR-FL-STL .265X.50X.087YWZC
(Superseded to 06401120)

Note: (926506, 507, 508)

$2.40

$

In Stock, only 2 left!

0

55

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

Note: (926506, 507, 508)

$2.52

$

In Stock, Qty 7

0

56

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

Note: (926506, 507, 508)

$1.96

$

In Stock, Qty 13

0

57

Ariens 00600100

BAFFLE, DISCHARGE NECK

$11.68

$

In Stock, only 1 left!

0

58

Ariens 07200430

V-BELT, HA-RAW EDGE (SET)

$54.73

$

Usually ships in 5-11 days

0

59

Ariens 00268703

PULLEY HUB, D-BORE .87 PRO

$8.89

$

In Stock, only 3 left!

0

60

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$2.24

$

In Stock, Qty 20+

0

61

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$2.52

$

In Stock, Qty 20+

0

62

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

Note: (926506, 507, 508)

$2.24

$

In Stock, Qty 20+

0

63

Ariens 07001612

NUT, THREADED INSERT .38-16
(Superseded to 07001805)

$5.53

$

Usually ships in 4-12 days

0
