926039 (PRO 32) - Ariens Professional 32" Snow Blower, Briggs & Stratton (SN: 000101 - 001200) Handlebars And Controls Parts Diagram

Professional 32" Snow Blower, Briggs & Stratton

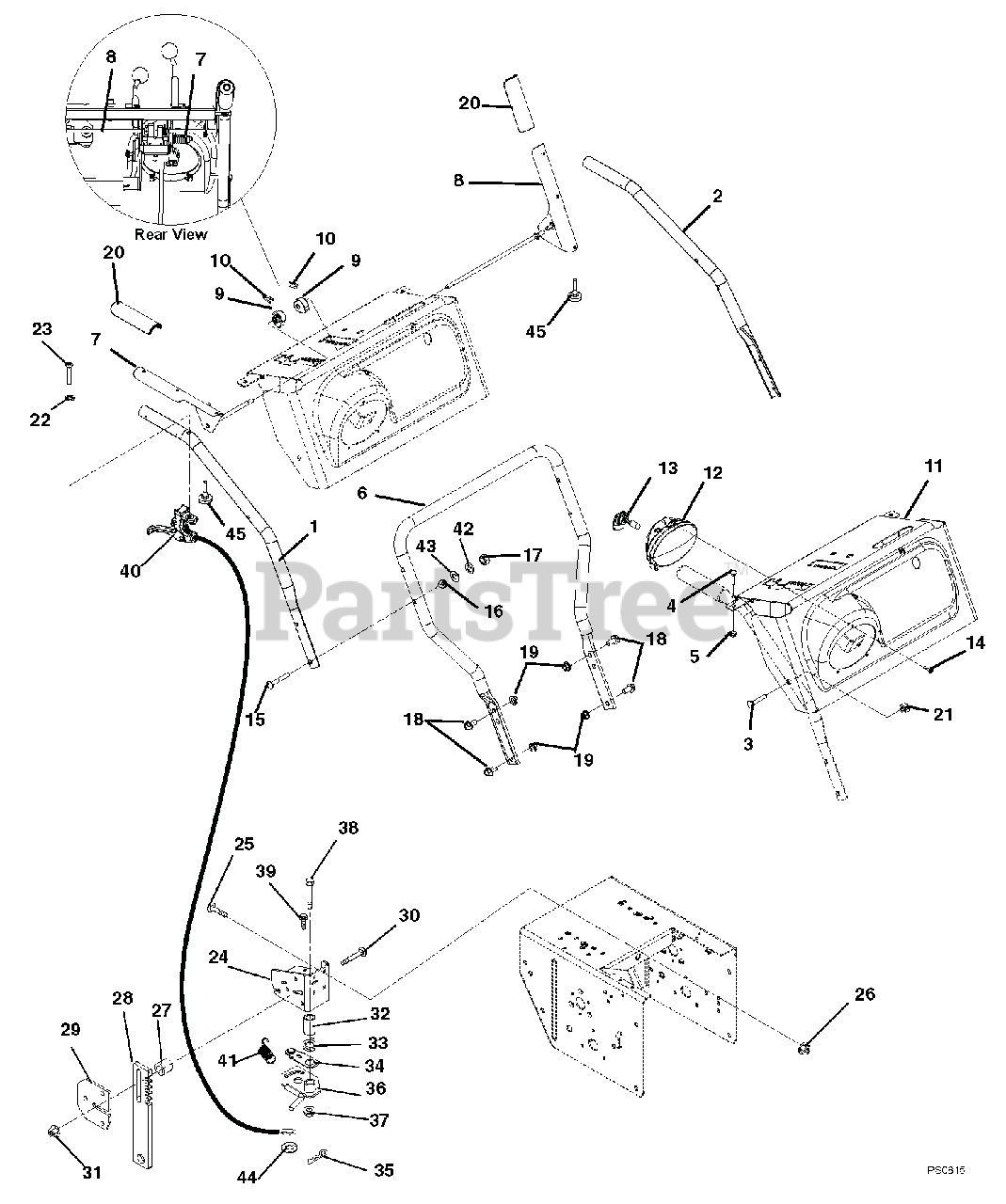

Handlebars And Controls Parts Diagram

  • Title
1

Ariens 52602000

HANDLEBAR, UPPER RH-W/HW

$134.94

$

Usually ships in 4-12 days

0

2

Ariens 52601900

HANDLEBAR, UPPER LH-W/HW

$134.94

$

Usually ships in 4-12 days

0

3

Ariens 06220200

@BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

$2.80

$

In Stock, only 2 left!

0

4

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

Note: (926037, 038, 039, 040, 044, 317, 506, 507)

$2.80

$

Usually ships in 4-12 days

0

4

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

Note: (926041, 042, 043, 318, 508)

$2.80

$

Usually ships in 4-12 days

0

5

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

Note: (926037, 038, 039, 040, 044, 317, 506, 507)

$1.96

$

In Stock, Qty 20+

0

5

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

Note: (926041, 042, 043, 318, 508)

$1.96

$

In Stock, Qty 20+

0

6

Ariens 00373251

HANDLEBAR, LOWER

$98.33

$

Usually ships in 4-12 days

0

7

Ariens 00393051

LEVER, RH-ATTACHMENT

$33.82

$

In Stock, only 1 left!

0

8

Ariens 00393151

LEVER, LH-TRACTION

$61.43

$

In Stock, only 2 left!

0

9

Ariens 03888100

CAM, INTERLOCK NYLON, LG DASH

$3.52

$

In Stock, Qty 11

0

10

Ariens 06714500

PIN, SPRING CLIP

$2.24

$

In Stock, Qty 20+

0

11

Ariens 52603700

PANEL-W/CONTROL HW DECAL
(Superseded to 52100400)

Note: (926037, 038, 039, 040, 317)

$180.78

$

Usually ships in 4-12 days

0

11

Ariens 52603800

PANEL-W/CONTROL 12V DECAL

Note: (926506, 507)

$

$

Not available

11

Ariens 52607700

CONTROL PANEL W/DECAL - TRACK

Note: (926041, 042, 043, 318)

$

$

Not available

11

Ariens 52606100

PANEL-W/CONTROL 12VTRACK DECAL

Note: (926508)

$

$

Not available

11

Ariens 52603900

PANEL-W/CONTROL BRUSH DECAL

Note: (926044)

$

$

Not available

12

Ariens 00432500

LIGHT, HALOGEN ASSY.

$21.07

$

In Stock, only 1 left!

0

13

Ariens 00432600

BULB, LIGHT-HALOGEN 20W

$17.83

$

In Stock, Qty 20+

0

14

Ariens 07416700

SCR-TAP 10-16X.75 HI-LO PPH

$1.68

$

Usually ships in 4-12 days

0

15

Ariens 06221600

@BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$2.18

$

Usually ships in 5-11 days

0

16

Ariens 07500005

SPACER, HANDLEBAR

$2.18

$

In Stock, Qty 20+

0

17

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$2.24

$

In Stock, Qty 20+

0

18

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$2.80

$

In Stock, Qty 20+

0

19

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$2.24

$

In Stock, Qty 20+

0

20

Ariens 00384500

GRIP, CLUTCH LEVER, LH AND RH

$5.87

$

In Stock, Qty 14

0

21

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$2.52

$

In Stock, Qty 20+

0

22

Ariens 06305200

WSHR-LK-INT .250 TH TYA

Note: (926041, 042, 043, 318, 508)

$3.08

$

Usually ships in 4-12 days

0

23

Ariens 06100007

SCR-MCH .25-20X1.50 OVAL HD

Note: (926041, 042, 043, 318, 508)

$

$

Not available

24

Ariens 00373751

BRACKET, HEIGHT ADJUSTER-PRO

Note: (926041, 042, 043, 318, 508)

$39.30

$

Usually ships in 4-12 days

0

25

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

Note: (926041, 042, 043, 318, 508)

$1.96

$

In Stock, Qty 19

0

26

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

Note: (926041, 042, 043, 318, 508)

$1.96

$

In Stock, Qty 20+

0

27

Ariens 01103100

SPACER .50 X .32 X .42

Note: (926041, 042, 043, 318, 508)

$3.47

$

Usually ships in 4-12 days

0

28

Ariens 00383851

STOP, HEIGHT ADJUSTER-PRO

Note: (926041, 042, 043, 318, 508)

$15.93

$

Usually ships in 4-12 days

0

29

Ariens 03294151

PLATE, HEIGHT ADJUSTER

Note: (926041, 042, 043, 318, 508)

$6.09

$

Usually ships in 4-12 days

0

30

Ariens 06200008

@BLT-RHDSHSQNK.31-18X1.25 G5YZ
(Superseded to 06200310)

Note: (926041, 042, 043, 318, 508)

$2.80

$

Usually ships in 4-12 days

0

31

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (926041, 042, 043, 318, 508)

$2.80

$

In Stock, Qty 20+

0

32

Ariens 05500106

BSHG-SLV .385X.500X1.045

Note: (926041, 042, 043, 318, 508)

$3.63

$

In Stock, only 2 left!

0

33

Ariens 08300015

SG-TORS .067X.88

Note: (926041, 042, 043, 318, 508)

$3.63

$

In Stock, Qty 12

0

34

Ariens 03376200

ARM, OVERTRAVEL

Note: (926041, 042, 043, 318, 508)

$11.07

$

Usually ships in 4-12 days

0

35

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

Note: (926041, 042, 043, 318, 508)

$1.96

$

In Stock, only 4 left!

0

36

Ariens 03294000

LOCK, HEIGHT ADJUSTER

Note: (926041, 042, 043, 318, 508)

$11.18

$

Usually ships in 4-12 days

0

37

Ariens 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

Note: (926041, 042, 043, 318, 508)

$2.24

$

In Stock, only 3 left!

0

38

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

Note: (926041, 042, 043, 318, 508)

$2.80

$

In Stock, Qty 20+

0

39

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (926041, 042, 043, 318, 508)

$2.24

$

In Stock, Qty 20+

0

40

Ariens 06900331

CABLE, TRACK REMOTE

Note: (926041, 042, 043, 318, 508)

$33.48

$

Usually ships in 4-12 days

0

41

Ariens 08300103

SPRING-EXT .047 X .438 X 1.85

Note: (926041, 042, 043, 318, 508)

$3.63

$

In Stock, Qty 10

0

42

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$2.24

$

In Stock, Qty 20+

0

43

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$2.18

$

In Stock, Qty 20+

0

44

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

Note: (926041, 042, 043, 318, 508)

$1.96

$

In Stock, Qty 20+

0

45

Ariens 07500038

BUMPER, RUBBER - PULL MOUNT

$3.30

$

Usually ships in 4-12 days

0
