926039 (PRO 32) - Ariens Professional 32" Snow Blower, Briggs & Stratton (SN: 100000 - 119999) Wheels And Axles - 32" Parts Diagram

Professional 32" Snow Blower, Briggs & Stratton

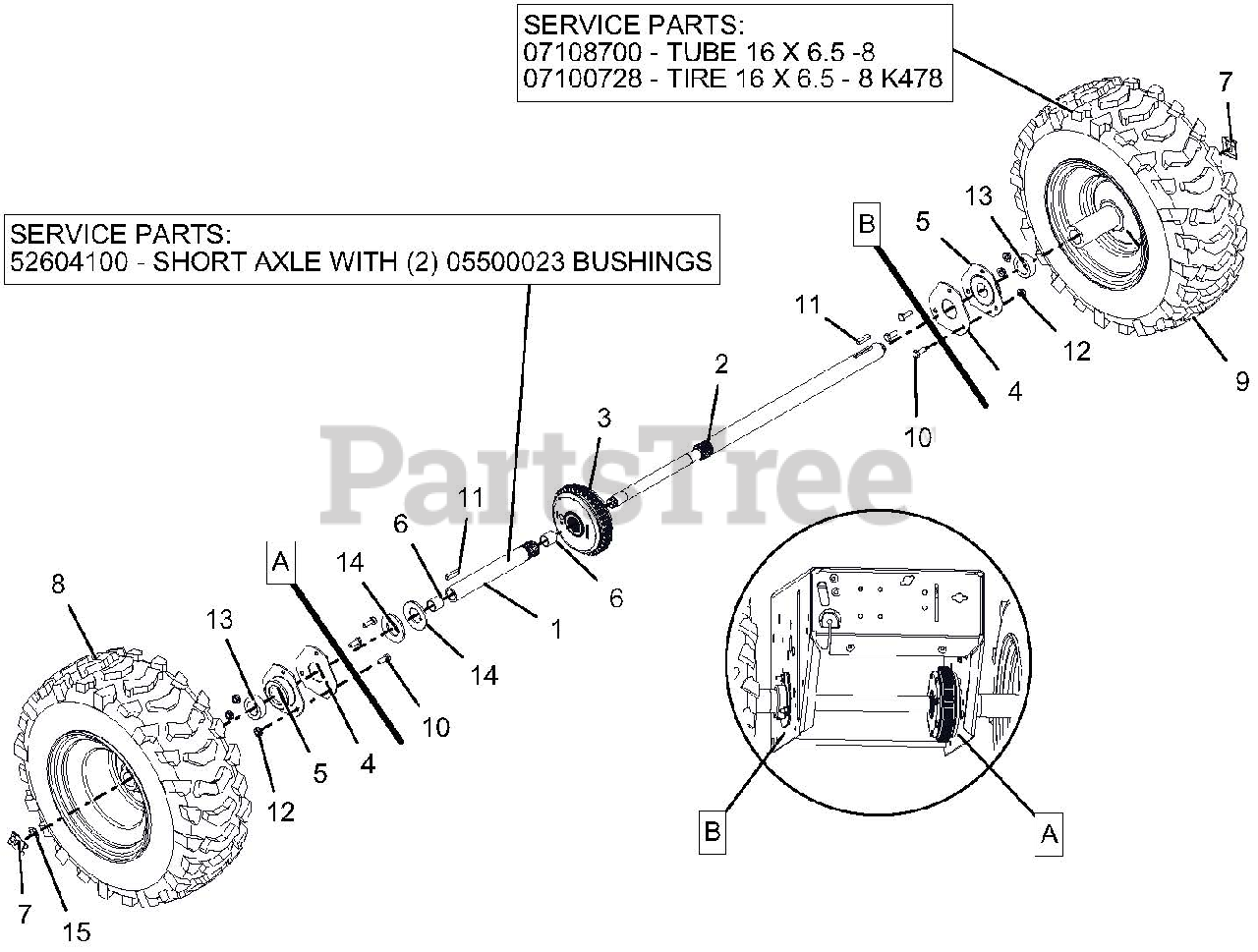

Wheels And Axles - 32" Parts Diagram

  • Title

1

Ariens 00660800

AXLE, SHORT-PRO AUTO DIFF
(Superseded to 52604100)

$60.99

$

In Stock, only 2 left!

0

1

Ariens 52604100

AXLE, SHORT-AUTO W/BUSHINGS

Note: SERVICE PART

$60.99

$

In Stock, only 2 left!

0

1

Ariens 05500023

BSHG-SLV .706X.764X.75 BRZ

Note: SERVICE PART

$4.99

$

In Stock, Qty 20+

0

2

Ariens 00660900

AXLE, LONG-PRO AUTO DIFF

$108.99

$

In Stock, only 3 left!

0

3

Ariens 04584100

DIFFERENTIAL, AUTOMATIC

$177.99

$

In Stock, only 4 left!

0

4

Ariens 04796351

PLATE, BEARING SPACER

Note: (BLACK)

$24.99

$

In Stock, only 2 left!

0

5

Ariens 05400723

BRG-FLG 1.003/1.000 3 BOLT

$

$

Not available

6

Ariens 05500023

BSHG-SLV .706X.764X.75 BRZ

$4.99

$

In Stock, Qty 20+

0

7

Ariens 05700001

CLIP, SNAP .625 DIA

$3.49

$

In Stock, Qty 20+

0

8

Ariens 07100231

TIRE/WHEEL, RH 16X6.50-8 DIFF
(Superseded to 07101139)

$165.99

$

Usually ships in 4-12 days

0

9

Ariens 07100232

TIRE/WHEEL, LH 16X6.50-8 DIFF
(Superseded to 07101140)

$165.99

$

In Stock, only 1 left!

0

9

Ariens 07108700

TUBE

Note: SERVICE PART

$25.99

$

Usually ships in 4-12 days

0

9

Ariens 07100728

TIRE, 16X6.50-8 K478

Note: SERVICE PART

$94.99

$

Usually ships in 4-12 days

0

10

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.99

$

In Stock, Qty 20+

0

11

Ariens 06600002

KEY-RECT .25X.188X1.00

$2.49

$

In Stock, Qty 20+

0

12

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 05501014

SPACER, PRO AXLE BEARING

$9.49

$

In Stock, only 4 left!

0

14

Ariens 06443000

WSHR-FL-STL- 1.062X2.0X.134 YZ
(Superseded to 06401203)

$5.99

$

In Stock, only 2 left!

0

15

Ariens 05708300

RG-RTNG-EXT .625X.042

$1.49

$

In Stock, Qty 20+

0
