926042 (PRO 28) - Ariens Professional 28" Track Snow Blower, Briggs & Stratton (SN: 100000 & Above) Friction Drive Parts Diagram

Professional 28" Track Snow Blower, Briggs & Stratton

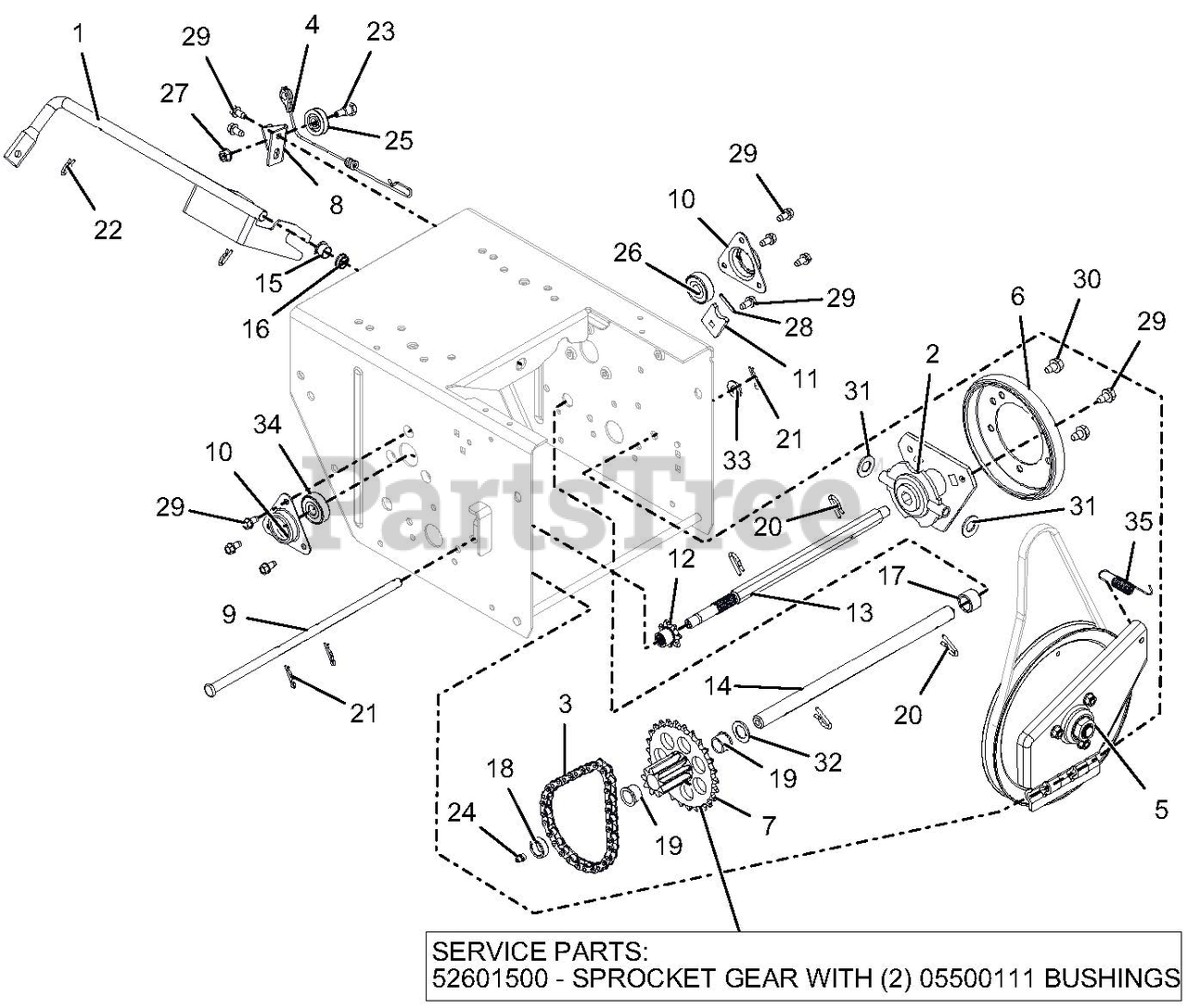

Friction Drive Parts Diagram

  • Title

1

Ariens 00371351

ARM, SHIFT-WELDMENT
(Superseded to 00371300)

$61.99

$

Usually ships in 4-12 days

0

2

Ariens 00383100

CARRIER, DRIVE DISK

$120.99

$

In Stock, Qty 5

0

3

Ariens 02466200

CHAIN - #41, 32 PITCHES

$8.49

$

In Stock, only 1 left!

0

4

Ariens 06900503

CABLE, LOWER TRACTION,SS & PRO

Note: (SS & PRO)

$18.99

$

In Stock, only 2 left!

0

5

Ariens 52602700

PLATE, SWING ASSEMBLY-DEEP

$131.99

$

In Stock, only 2 left!

0

6

Ariens 00170800

FRICTION, DISC
(Superseded to 09475300)

$36.99

$

In Stock, Qty 6

0

7

Ariens 00190600

PINION & SPROCKET

$

$

Not available

7

Ariens 52601500

PINION & SPROCKET W/BUSHINGS

Note: SERVICE PART

$46.99

$

In Stock, only 2 left!

0

7

Ariens 05500111

BSHG-FLG .625X.750X.500X.875

Note: SERVICE PART

$2.49

$

In Stock, Qty 20+

0

8

Ariens 00373051

BRACKET, CABLE PULLEY
(Superseded to 00373000)

$5.49

$

Usually ships in 4-12 days

0

9

Ariens 00380900

PIN, PIVOT

$42.99

$

In Stock, only 2 left!

0

10

Ariens 00383000

FLANGE, BEARING

$13.99

$

In Stock, only 2 left!

0

11

Ariens 00503500

TAB, ANTI ROTATION

$5.49

$

In Stock, only 2 left!

0

12

Ariens 04092600

SPROCKET, PINION 7T W/SPLINE
(Superseded to 09478400)

$2.49

$

Usually ships in 4-12 days

0

13

Ariens 04511700

SHAFT, HEX-W/SPLINE TRACK

$59.99

$

In Stock, Qty 5

0

14

Ariens 04511800

SHAFT, PINION - HARDENED

$43.99

$

In Stock, only 2 left!

0

15

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 14

0

16

Ariens 05500028

BUSHING, POLYLINER-.50 SNAPIN

$2.49

$

In Stock, Qty 9

0

17

Ariens 05500029

SPACER, .635X.880X.611

$2.99

$

In Stock, only 2 left!

0

18

Ariens 05500035

BSHG-SLV, .635X.880X.305

$3.99

$

In Stock, only 2 left!

0

19

Ariens 05500111

BSHG-FLG .625X.750X.500X.875

$2.49

$

In Stock, Qty 20+

0

20

Ariens 06714500

PIN, SPRING CLIP

$2.99

$

In Stock, Qty 18

0

21

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

22

Ariens 06944800

CLIP, SPRING

$1.49

$

In Stock, Qty 6

0

23

Ariens 07000021

BOLT, SHLDR-.375X.375X.25-20
(Superseded to 07001737)

$3.99

$

In Stock, only 4 left!

0

24

Ariens 07061300

ZERK,FITTING .25X.125 DRIVE IN

$4.99

$

In Stock, Qty 11

0

25

Ariens 07300012

PULLEY, CABLE

$5.49

$

In Stock, only 2 left!

0

26

Ariens 05400711

BRG-BALL .669X1.575X.47(6203Y)

Note: (6203Y)

$22.99

$

In Stock, Qty 5

0

27

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 05800900

PIN-ROLL .125X1.00

$0.99

$

Usually ships in 4-12 days

0

29

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

31

Ariens 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.99

$

In Stock, Qty 20+

0

33

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 05435200

BRG-BALL .437X1.375X.437

$10.99

$

In Stock, Qty 20+

0

35

Ariens 08300019

SG-TENS .048X.50X2.8

$6.49

$

In Stock, only 2 left!

0
