926046 - Gravely 36" Power Brush, Subaru (SN: 001001 - 034999) Brush Drive Unit Parts Diagram

36" Power Brush, Subaru

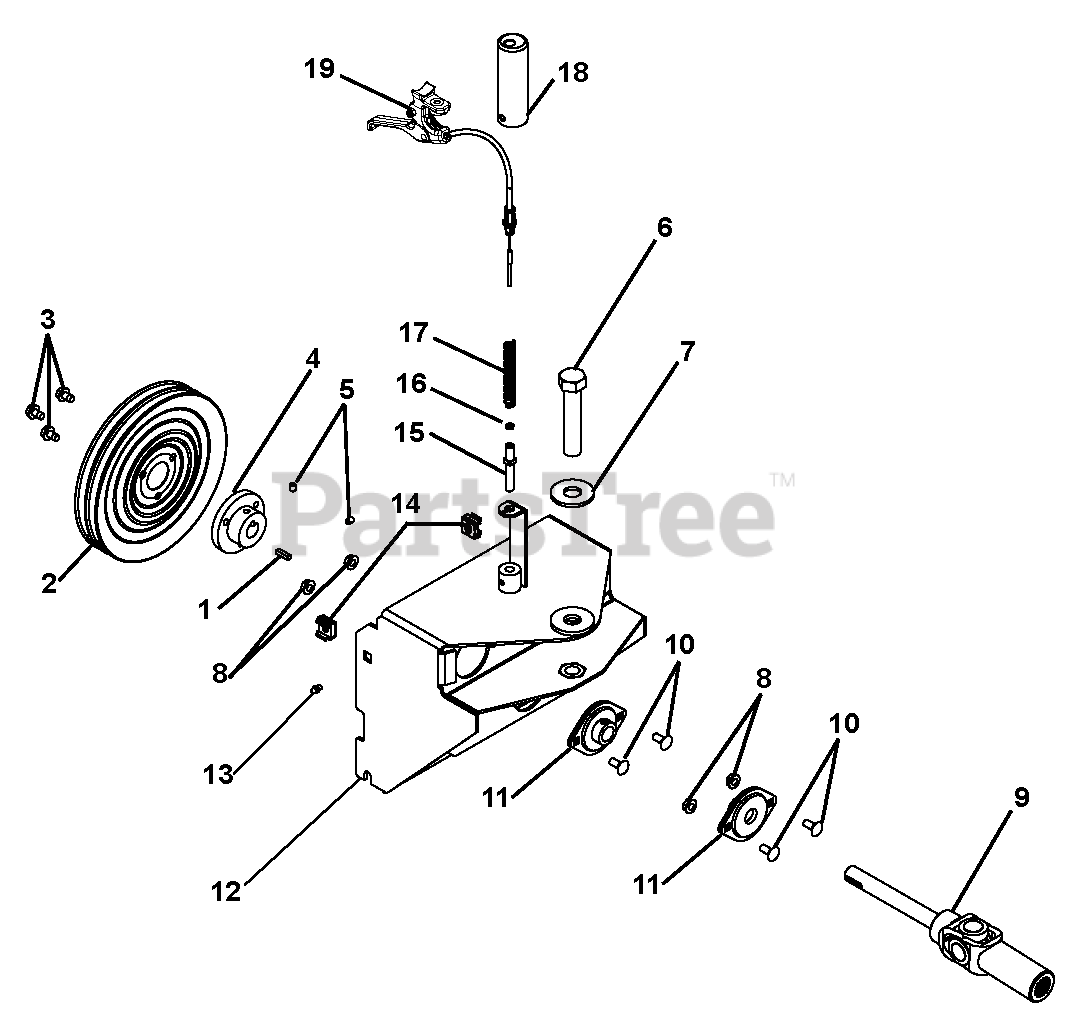

Brush Drive Unit Parts Diagram

  • Title

1

Gravely 06606100

Key-Square .188 x .75 x .188

$3.99

$

In Stock, only 1 left!

0

2

Gravely 00268700

Pulley, Spin Form Dual Groove
(Superseded to 00268751)

$39.99

$

In Stock, only 1 left!

0

3

Gravely 07411500

Screw-Tapping .31-18 x .50 Hex Washer Head Thread Rolling
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 04195300

Hub, Pulley

$93.99

$

Usually ships in 4-12 days

0

5

Gravely 06001100

Screw-Set .25-20 x .38 Socket Head Cup Point Nylon Oil Hardene

$2.49

$

In Stock, only 3 left!

0

6

Gravely 21602700

HHCS .75-16 UNF x 3.75

$

$

Not available

7

Gravely 06439800

Washer-Flat-Steel .812 x 2.00 x .148
(Superseded to 06401201)

$3.99

$

In Stock, only 1 left!

0

8

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 21602200

Driveline, Series
(Superseded to 52614300)

$257.99

$

Usually ships in 4-12 days

0

10

Gravely 06215700

Bolt-Round Head Square Neck .31-18 x .75
(Superseded to 06200232)

$2.49

$

In Stock, Qty 15

0

11

Gravely 21602100

Bearing, 3/4" Flangette
(Superseded to 03685300)

$45.99

$

In Stock, Qty 13

0

12

Gravely 21602400

Mounting Frame

$

$

Not available

13

Gravely 07012600

Fitting-Lube .25-28 x .256
(Superseded to 07001806)

$

$

Not available

14

Gravely 07002600

Nut-Retainer .38-16

$9.49

$

In Stock, Qty 9

0

15

Gravely 21602600

Pin, Swing MCD-Trigger Release
(Superseded to 04770000)

$55.99

$

Usually ships in 4-12 days

0

16

Gravely 06536600

Nut-Hex 10-24

$0.99

$

In Stock, Qty 5

0

17

Gravely 21602500

Spring, Compression .51" x 3.5"

$9.99

$

In Stock, only 1 left!

0

18

Gravely 21602300

Cap, Vinyl

$21.99

$

Usually ships in 4-12 days

0

19

Gravely 21602800

Cable, Control Swing-MCD
(Superseded to 06900523)

$68.99

$

In Stock, Qty 9

0
