926046 - Gravely 36" Power Brush, Subaru (SN: 001001 - 034999) Brush Head Parts Diagram

36" Power Brush, Subaru

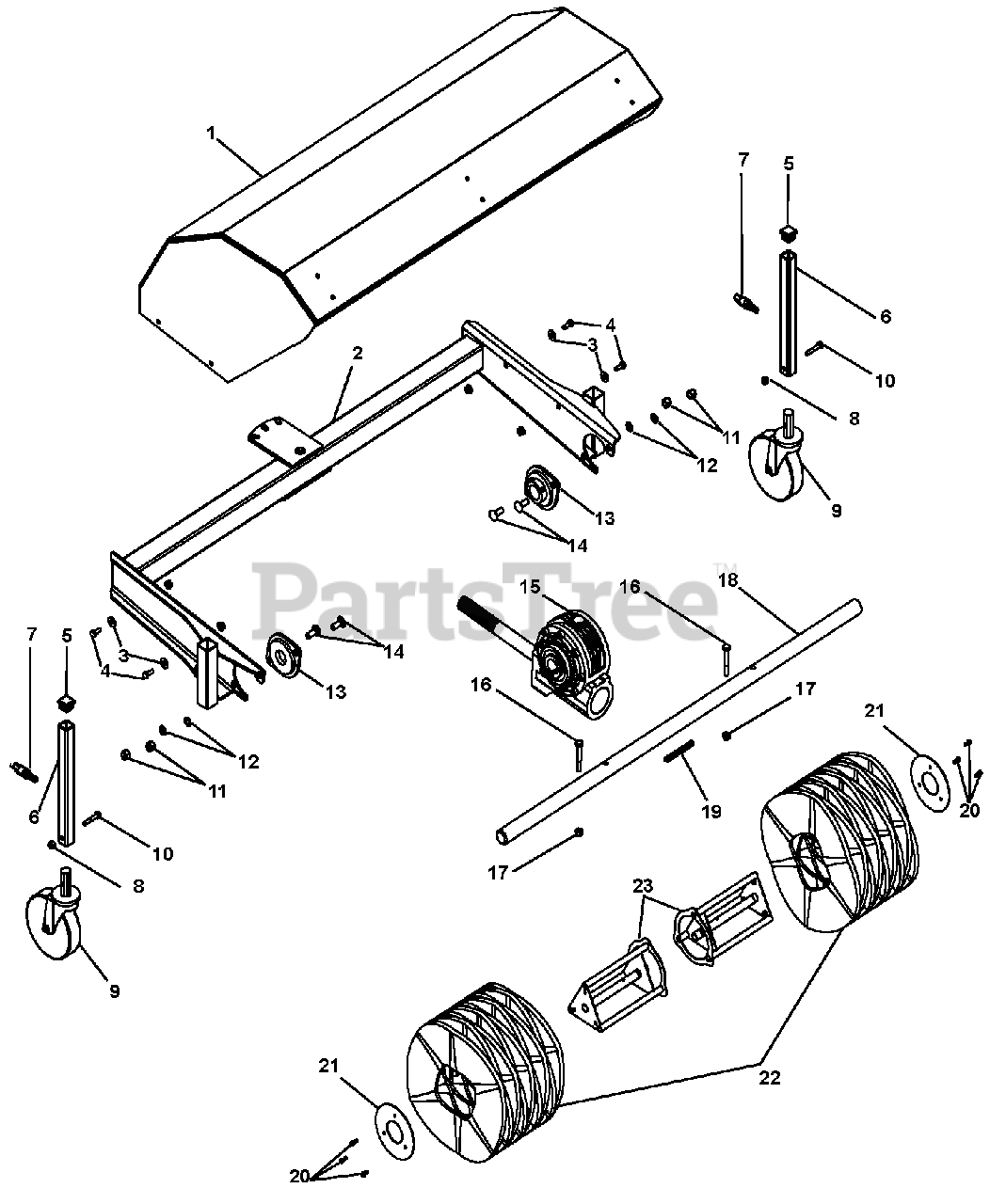

Brush Head Parts Diagram

  • Title

1

Gravely 52609400

Hood, 36" Brush with Decals

$610.99

$

Usually ships in 4-12 days

0

2

Gravely 21601400

Frame, Brush-W.U. 3’ Brush

$

$

Not available

3

Gravely 06435800

Washer, Flat Steel, .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 10

0

4

Gravely 05946800

Bolt-Hex, .25-20 x .76 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

5

Gravely 21601100

Plug, Square-1" Plastic
(Superseded to 00166800)

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 21601600

Tube, Square-1 x 1

$56.99

$

Usually ships in 4-12 days

0

7

Gravely 21601000

Black Knob

$11.99

$

Usually ships in 4-12 days

0

8

Gravely 06531000

Locking Nut, Nylon .250-20
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

9

Gravely 21602000

Caster Wheel, 5" x 3/4"

$

$

Not available

10

Gravely 05952500

Bolt-Hex, .25-20 x 1.50 Grade 5
(Superseded to 05901739)

$1.49

$

In Stock, Qty 8

0

11

Gravely 06535800

Locking Nut, Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

12

Gravely 21601900

Washer, SAE .38

$

$

Not available

13

Gravely 21601200

Bearing, 1 1/8" Flangette
(Superseded to 03733900)

$69.99

$

Usually ships in 4-12 days

0

14

Gravely 06223600

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 20+

0

15

Gravely 21601300

Aluminum Gearbox
(Superseded to 04542000)

$445.99

$

Usually ships in 4-12 days

0

16

Gravely 05963700

Bolt-Hex .31-18 x 2.25 Grade 5
(Superseded to 05901806)

$1.49

$

In Stock, Qty 5

0

17

Gravely 06530200

Locking Nut, Nylon .312-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

18

Gravely 21601700

Thru Shaft, 1-1/8 x 3’
(Superseded to 04594500)

$130.99

$

Usually ships in 4-12 days

0

19

Gravely 21601800

Key, Square .25 x .25 x 3
(Superseded to 06600121)

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 21600800

HHCS, Serrated Flange .38-16 x 1
(Superseded to 07001823)

$5.99

$

Usually ships in 4-12 days

0

21

Gravely 21600700

End Retainer Plate
(Superseded to 04594651)

$31.99

$

Usually ships in 4-12 days

0

22

Gravely 52609500

Kit, Bristle-Set of 10
(Superseded to 72602600)

$407.99

$

In Stock, only 2 left!

0

23

Gravely 21600600

Core, Weldment 3’
(Superseded to 52612900)

$374.99

$

Usually ships in 4-12 days

0
