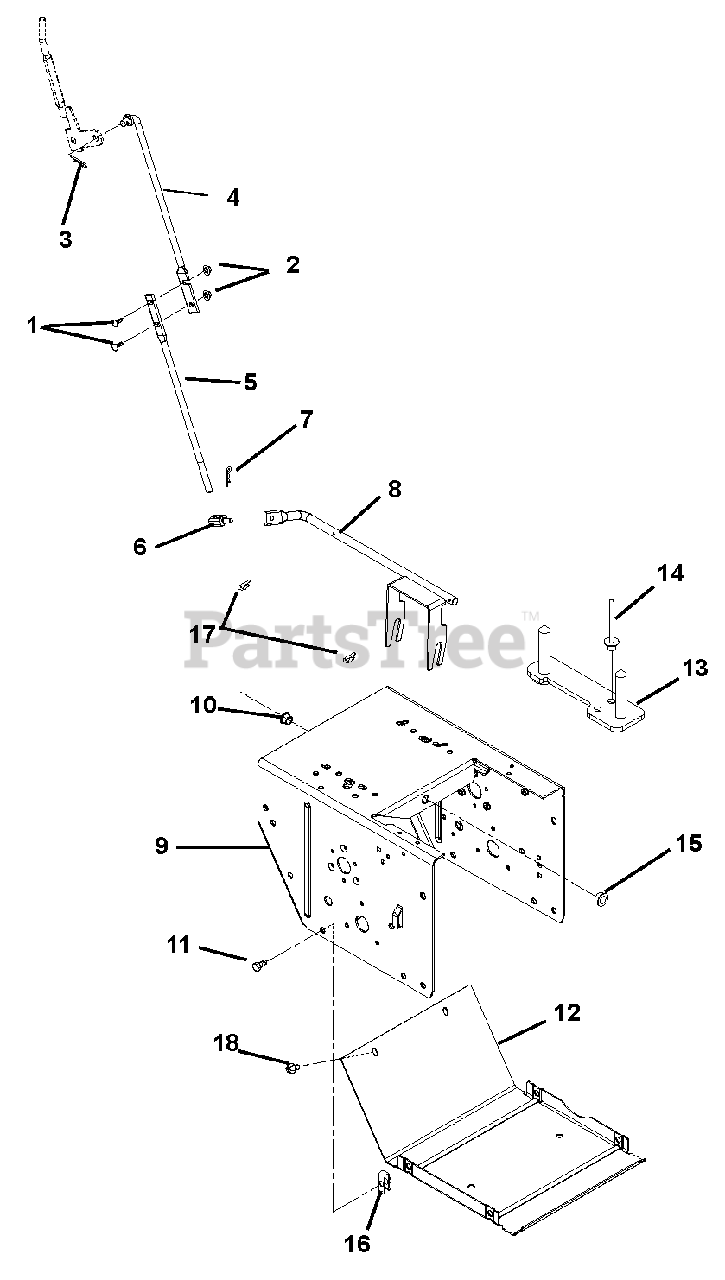

926046 - Gravely 36" Power Brush, Subaru (SN: 001001 - 034999) Speed Selector And Frame Parts Diagram

36" Power Brush, Subaru

Speed Selector And Frame Parts Diagram

  • Title

1

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 6

0

3

Gravely 06714800

Pin, Hair #25
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

4

Gravely 03917000

Rod, Shift-Upper

$32.99

$

Usually ships in 4-12 days

0

5

Gravely 03917100

Rod, Shift-Lower

$19.99

$

Usually ships in 4-12 days

0

6

Gravely 00386700

Pivot, Shift Rod

$7.99

$

Usually ships in 4-12 days

0

7

Gravely 06714800

Pin, Hair #25
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

8

Gravely 00371300

Arm, Shift Weldment

$60.99

$

Usually ships in 4-12 days

0

9

Gravely 00370453

Main Frame

$249.99

$

Usually ships in 4-12 days

0

10

Gravely 05500026

Bushing, Polyliner .50 Split

$2.99

$

In Stock, Qty 20+

0

11

Gravely 05900019

Bolt, Hex Washer Head .25-20 x .75 Grade 5
(Superseded to 05901824)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 00375153

Cover, Bottom

$27.99

$

Usually ships in 4-12 days

0

13

Gravely 00188400

Bolt Strap

$20.99

$

Usually ships in 4-12 days

0

14

Gravely 06800028

Rivet, Pop
(Superseded to 06800140)

$0.99

$

In Stock, Qty 10

0

15

Gravely 05500028

Bushing, Polyliner .50 Snapin

$2.49

$

In Stock, Qty 13

0

16

Gravely 07009000

Nut-Retainer .25-20 x .56

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06944800

Clip, Spring

$0.99

$

In Stock, only 2 left!

0

18

Gravely 07412000

Screw, Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
