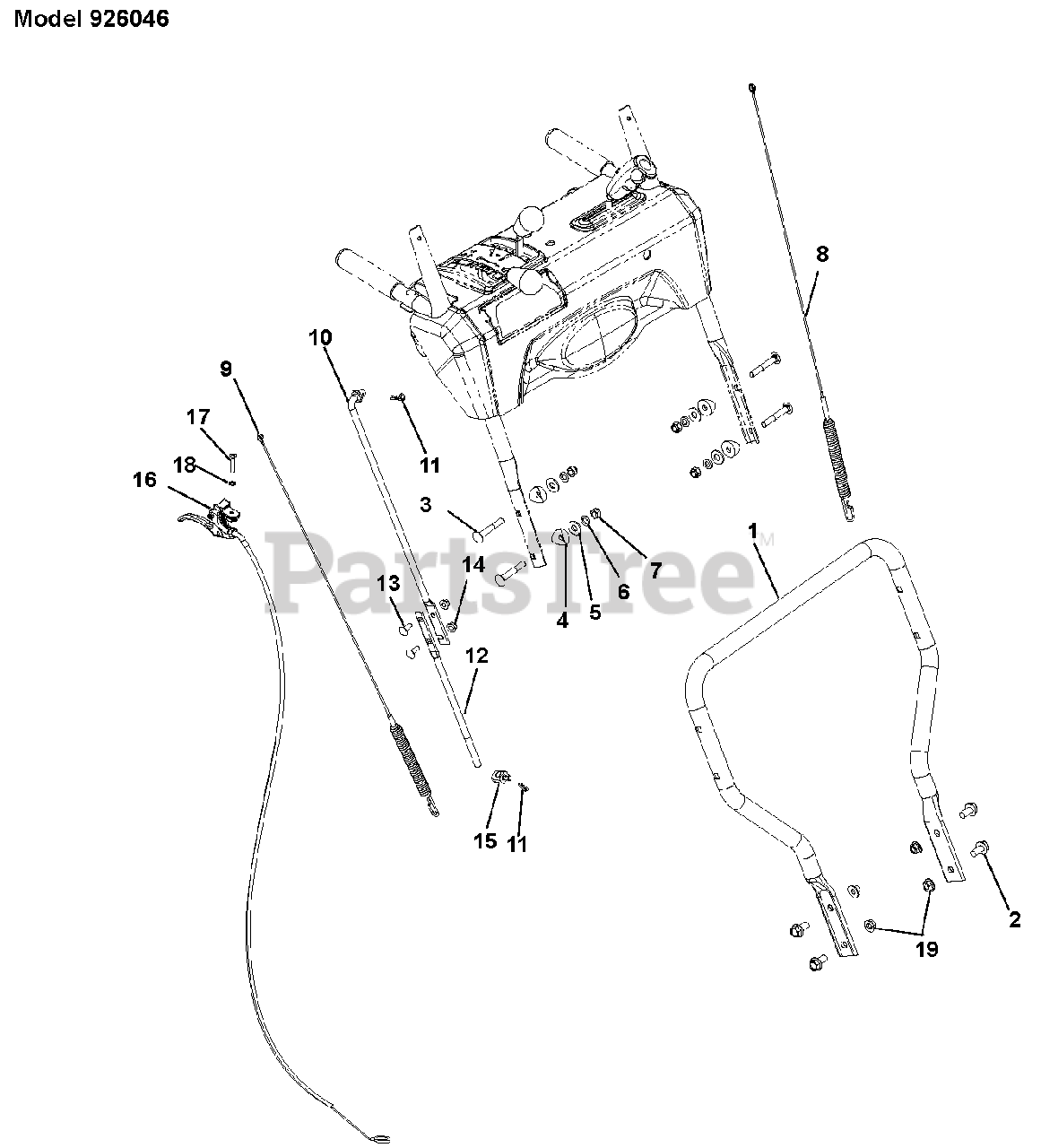

926046 - Gravely 36" Power Brush, Subaru (SN: 035000 - 039999) Handlebars, Levers And Dash Panel Parts Diagram

36" Power Brush, Subaru

Handlebars, Levers And Dash Panel Parts Diagram

  • Title

1

Gravely 00373251

Handlebar, Lower

$100.99

$

Usually ships in 4-12 days

0

2

Gravely 07028500

Bolt, Serrated Hex Flange Washer Head .38-16 x .75
(Superseded to 07001824)

$1.49

$

In Stock, only 2 left!

0

3

Gravely 06221600

Bolt, Round Head Square Neck .31-18 x 2.25
(Superseded to 06200408)

$2.99

$

Usually ships in 4-12 days

0

4

Gravely 07500005

Spacer, Handlebar

$1.49

$

Usually ships in 4-12 days

0

5

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, only 3 left!

0

6

Gravely 06307400

Washer, Lock .312 x .097
(Superseded to 06300123)

$0.99

$

In Stock, only 4 left!

0

7

Gravely 06530200

Nut, Locking Nylon .31-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

8

Gravely 06900502

Cable, Traction

$31.99

$

In Stock, only 1 left!

0

9

Gravely 06900439

Cable, Auger

$28.99

$

In Stock, only 2 left!

0

10

Gravely 04336367

Rod, Shift, Upper
(Superseded to 04336300)

$31.99

$

Usually ships in 4-12 days

0

11

Gravely 06713500

Pin, Hair, Internal .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 14

0

12

Gravely 04343867

Rod, Shift, Lower

$24.99

$

Usually ships in 4-12 days

0

13

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0

15

Gravely 00386700

Pivot, Shift Rod

$7.99

$

Usually ships in 4-12 days

0

16

Gravely 06900523

Cable, Remote Brush Lock

$68.99

$

In Stock, Qty 9

0

17

Gravely 06100007

Screw, Machine, Oval Head .25-20 x 1.50
(Superseded to 06100236)

$3.99

$

In Stock, only 4 left!

0

18

Gravely 06305200

Washer, Lock, Internal .25

$3.49

$

Usually ships in 4-12 days

0

19

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 17

0
