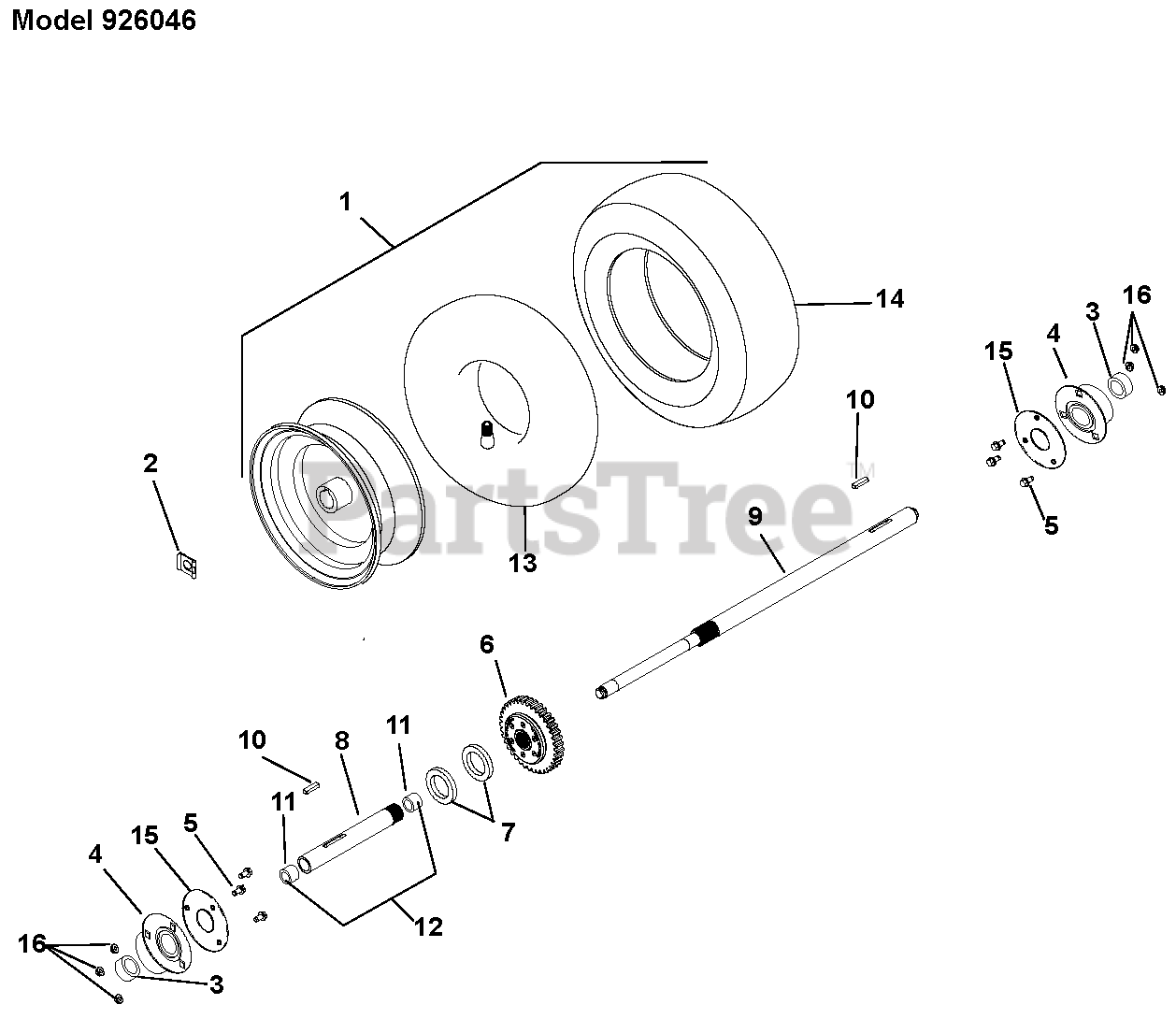

926046 - Gravely 36" Power Brush, Subaru (SN: 035000 - 039999) Wheels And Axles Parts Diagram

36" Power Brush, Subaru

Wheels And Axles Parts Diagram

  • Title

1

Gravely 07100231

Tire/Wheel Assembly RH 16 x 6.50-8 (Includes Item 14)
(Superseded to 07101139)

Note: (Includes Item 14)

$148.99

$

Usually ships in 4-12 days

0

Gravely 07100232

Tire/Wheel Assembly LH 16 x 6.50-8 (Includes Item 14)
(Superseded to 07101140)

Note: (Includes Item 14)

$148.99

$

In Stock, only 2 left!

0

2

Gravely 05700001

Clip, Snap

$2.49

$

In Stock, only 3 left!

0

3

Gravely 05501014

Spacer

$7.49

$

In Stock, Qty 12

0

4

Gravely 05400706

Bearing
(Superseded to 05400723)

$43.99

$

In Stock, only 2 left!

0

5

Gravely 05946800

Bolt, Hex .25-20 x .75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

6

Gravely 00866000

Differential Assembly
(Superseded to 05013000)

$193.99

$

In Stock, only 3 left!

0

7

Gravely 06443000

Washer, Flat Steel 1.062 x 2.00 x .134
(Superseded to 06401203)

$3.99

$

In Stock, only 3 left!

0

8

Gravely 00660800

Axle, Short (Included in Item 12)
(Superseded to 52604100)

Note: (Included in Item 12)

$52.99

$

In Stock, Qty 9

0

9

Gravely 00660900

Axle, Long

$96.99

$

In Stock, only 1 left!

0

10

Gravely 06600002

Key, Rectangular .25 x .188 x 1.00

$2.49

$

In Stock, Qty 20+

0

11

Gravely 05500023

Bushing, Sleeve (Included in item 12)

Note: (Included in item 12)

$3.99

$

In Stock, Qty 19

0

12

Gravely 52604100

Axle, Short with Bushings (Includes Items 8 and 11)

Note: (Includes Items 8 and 11)

$52.99

$

In Stock, Qty 9

0

13

Gravely 07108700

Tube 16 x 6.50-8

$34.99

$

Usually ships in 4-12 days

0

14

Gravely 07100728

Tire 16 x 6.50-8 K478

$79.99

$

Usually ships in 4-12 days

0

15

Gravely 03389051

Plate, Bearing Spacer
(Superseded to 04796351)

$13.99

$

Usually ships in 4-12 days

0

16

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0
