926046 - Gravely 36" Power Brush, Subaru (SN: 040000 & Above) Reduction Drive Parts Diagram

36" Power Brush, Subaru

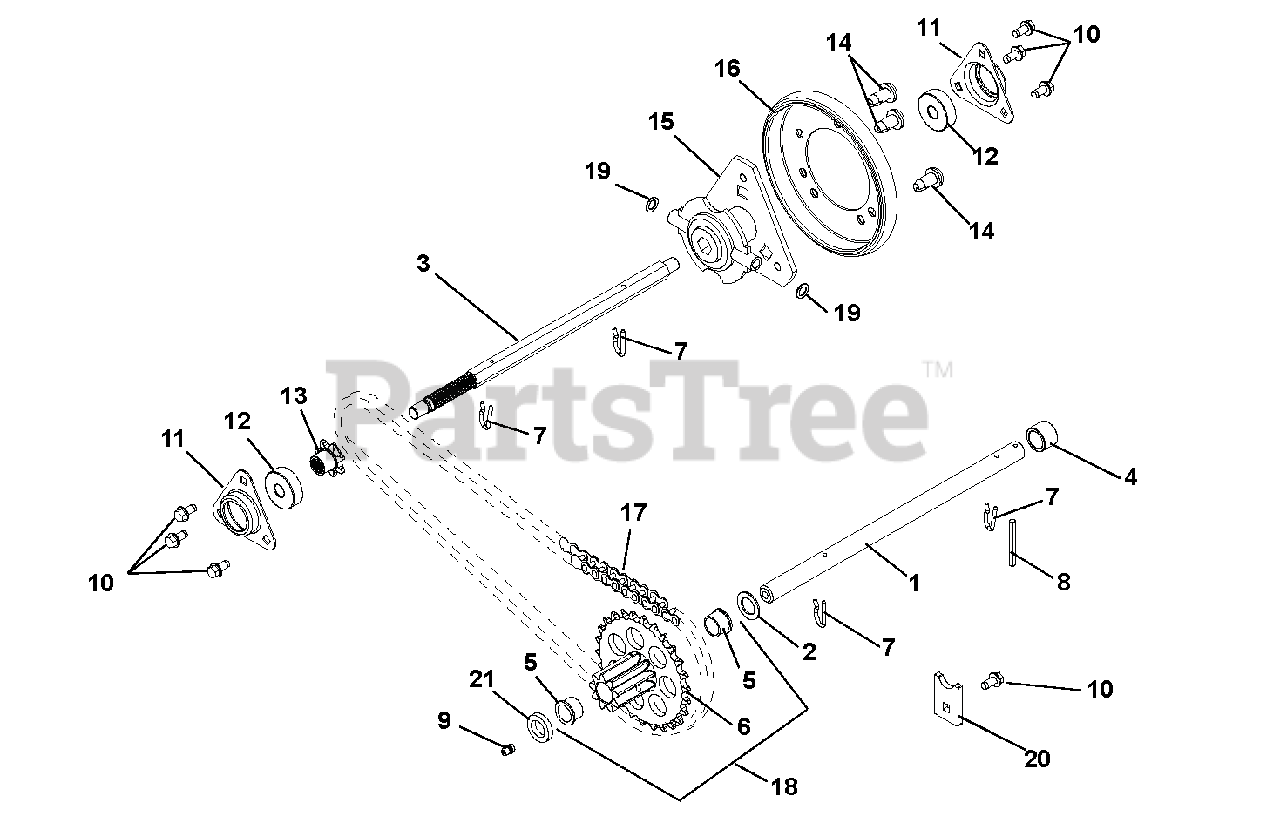

Reduction Drive Parts Diagram

  • Title

1

Gravely 04511800

SHAFT, PINION - HARDENED

$43.99

$

In Stock, only 2 left!

0

2

Gravely 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 04511700

SHAFT, HEX-W/SPLINE TRACK

$59.99

$

In Stock, only 2 left!

0

4

Gravely 05500029

SPACER, .635X.880X.611

$2.99

$

In Stock, only 2 left!

0

5

Gravely 05500111

BSHG-FLG .625X.750X.500X.875

Note: (Included in Item 18)

$2.49

$

In Stock, Qty 20+

0

6

Gravely 00190600

PINION & SPROCKET

Note: (Included in Item 18)

$

$

Not available

7

Gravely 06714500

PIN, SPRING CLIP

$2.99

$

In Stock, Qty 20+

0

8

Gravely 05800205

PIN-GRV .125X1.00 TP E ALLOY

$2.99

$

In Stock, only 2 left!

0

9

Gravely 07061300

ZERK,FITTING .25X.125 DRIVE IN

$4.99

$

In Stock, Qty 20+

0

10

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 00383000

FLANGE, BEARING

$13.99

$

In Stock, only 4 left!

0

12

Gravely 05435200

BRG-BALL .437X1.375X.437

$10.99

$

In Stock, Qty 20+

0

13

Gravely 04092600

SPROCKET, PINION 7T W/SPLINE
(Superseded to 09478400)

$2.49

$

In Stock, only 2 left!

0

14

Gravely 07400009

SCR-TAP SERRDHDTX .31-18X.50BP
(Superseded to 07411500)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 00383100

CARRIER, DRIVE DISK

$120.99

$

In Stock, only 2 left!

0

16

Gravely 00170800

FRICTION, DISC
(Superseded to 30310700)

$39.99

$

In Stock, Qty 20+

0

17

Gravely 02466200

CHAIN - #41, 32 PITCHES

$8.49

$

In Stock, Qty 9

0

18

Gravely 52601500

PINION & SPROCKET W/BUSHINGS

Note: (Includes Items 5 and 6)

$46.99

$

Usually ships in 4-12 days

0

19

Gravely 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 00503500

TAB, ANTI ROTATION

$5.49

$

In Stock, only 2 left!

0

21

Gravely 05500035

BSHG-SLV, .635X.880X.305

$3.99

$

In Stock, only 2 left!

0
